Nivotemp NT MD
9.2 Temperature outputs NT MD
Choose from the following temperature outputs:
2T 1T-KT 4T
Plug (base) 2 x M12 – 4-pin 2 x M12 – 4-pin 1 x M12 – 4-pin
1 x M12 – 8-pin
Switching outputs
2 x freely programmable* 1 x freely programmable* 4 x freely programmable*
Alarm memory 1 switching output assignable
to alarm logbook
1 switching output as-
signable to alarm logbook
1 switching output assignable
to alarm logbook
max. switching current** 0.5 A per output
continuous short-circuit
protected
0.5 A per output
continuous short-circuit
protected
0.5 A per output
continuous short-circuit
protected
Contact load max. 1 A total max. 1 A total max. 1 A total
Analog output 1 x 4 – 20mA,
2-10VDC, 0-10VDC, 0-
5VDC
Max. burden Ω as current output = (U
B
-8 V)/0.02 A
Min. input load as voltage output 10 kΩ
*Switching output 1+2 also programmable as frequency output 1-100 Hz.
**Output 1 max. 0.2 A.

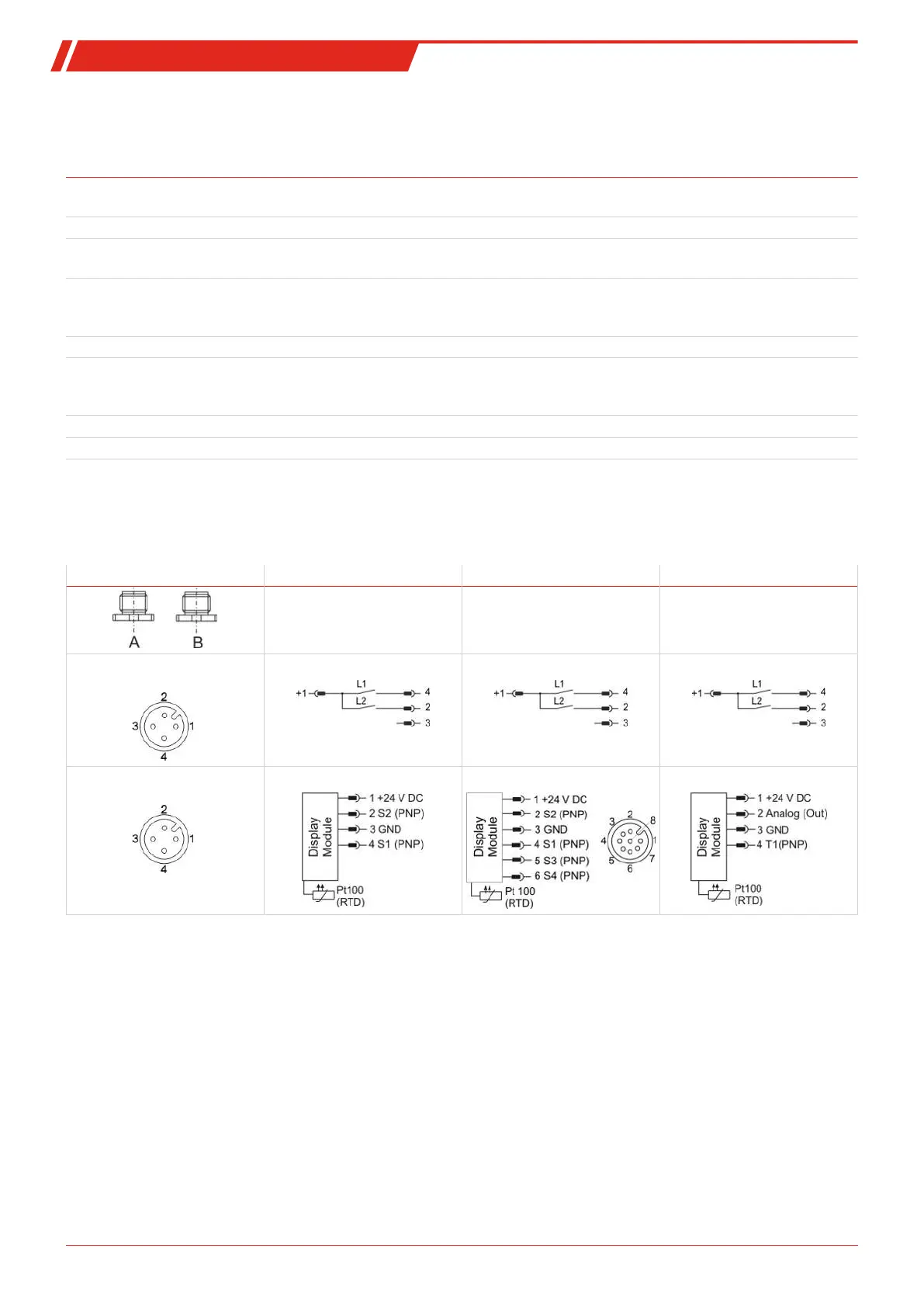

9.3 Standard pin assignment NT MD
Standard pin assignment 2T 4T 1T-KT
Level contact(s)
2x temperature output
Level contact(s)
4x temperature output
Level contact(s)
1x temperature output
1x analogue output
Plug A
level
Plug B
temperature
