40417 GT PLATINUM
6
PARTS DESCRIPTION
The OBDII Adapter Plug
The GT Platinum assembly connects to your vehicle through the diagnostic port, which is located under the dash on the driver’s side. The
OBDII Adapter Plug connects to the diagnostic port on your vehicle and has a connection for the HDMI cable that plugs into the back of the

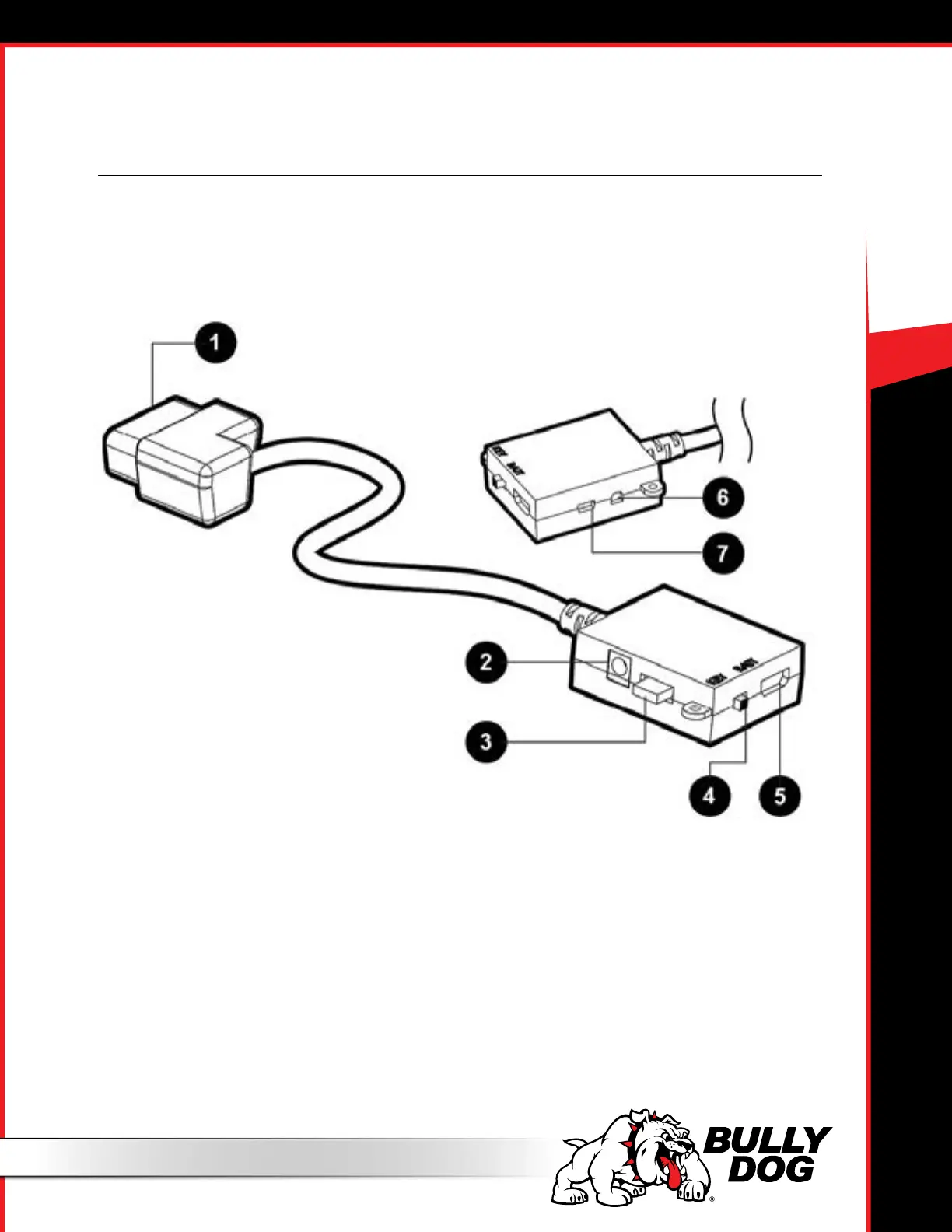

GT Platinum Head Unit. The illustration and numbered list below contain more information about the other parts of this important piece
of the GT Platinum assembly.
1. OBDII Male End: Connects to the vehicle diagnostic port.
2. Power Wire Port: Connects the GT Platinum to the power wire and the vehicle fuse box.
Allows the GT Platinum to turn on and o with the key.
3. Fuse: The adapter plug fuse protects the GT Platinum from being damaged by unexpected power surges.
4. Power Switch: Changes the active power source of the GT Platinum.
The two options are: 1) KEY: this pulls energy from the fuse box through the power wire and allows the GT Platinum to automatically turn
on and o based on the vehicle’s ignition key position; and 2) BATT: This provides continuous battery power to the GT Platinum directly
through the vehicle’s diagnostic port.
5. HDMI Port: Connects the OBDII adapter plug to the GT Platinum Head Unit.
6. Pyrometer/Sensor Docking Station Port: Connects the GT Platinum to optional sensors including pyrometers or the Bully Dog Sensor Docking
Station.
7. Future Peripherals: Not currently in use – may be used to connect additional devices in the future
