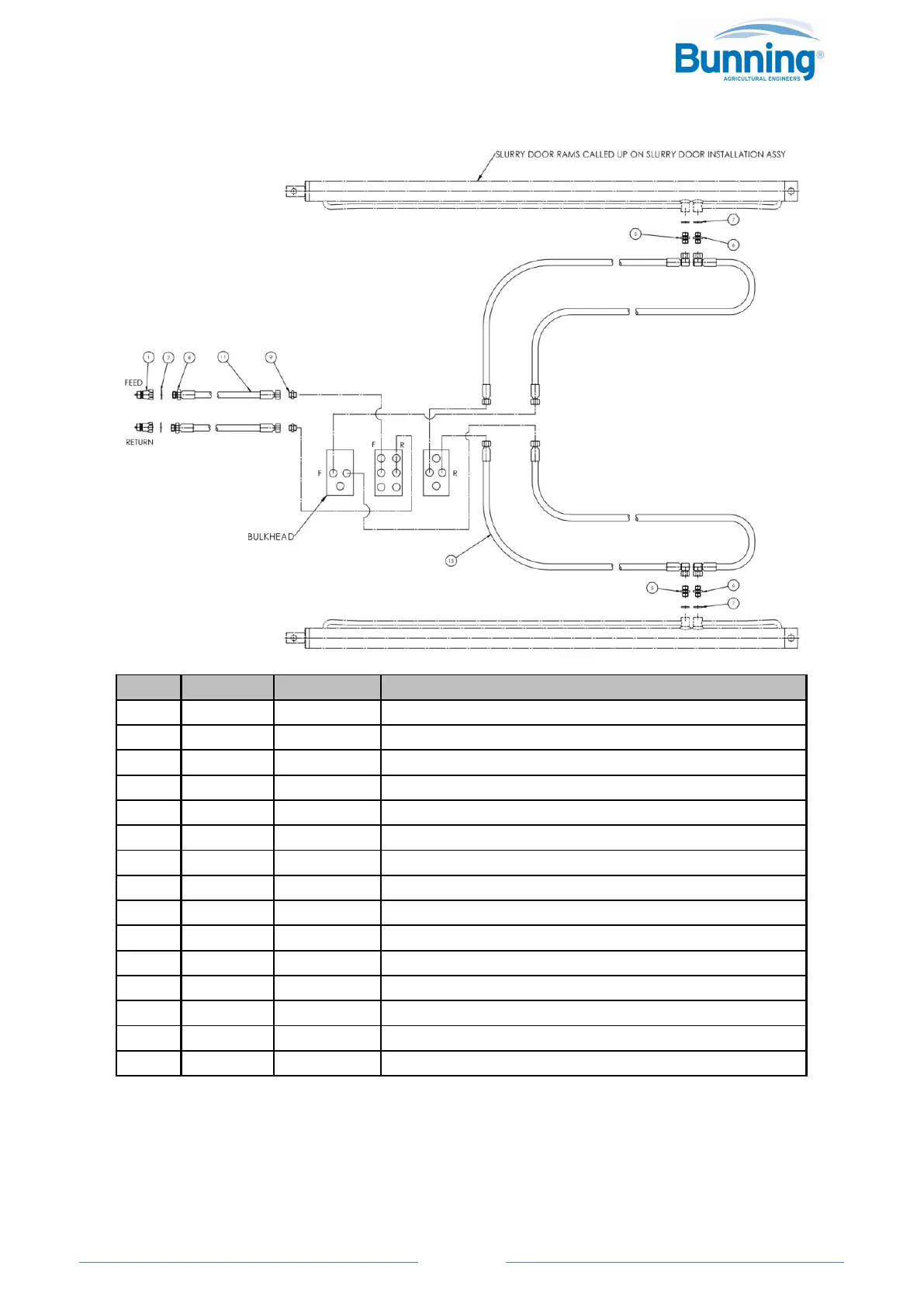

8.6 GUILLOTINE SLURRY DOOR HYDRAULIC CIRCUIT.
KEY QTY PART No. DESCRIPTION
1 2 51576 1/2" PROBE MALE SELF SEALER
2 2 51583 DUMMY 1/2" FEMALE
3 2 51463 3/8"-3/8"- BPT BULKHEAD
4 2 51447 3/8"-3/8"-3/8" MALE TEE
5 2 51335 3/8"-3/8" BPT NIPPLE
6 2 10522 3/8"-3/8" BPT NIPPLE 1/8" REDUCED
7 4 51590 DIA 3/8" DOWTY WASHER
8 2 51591 DIA 1/2" DOWTY WASHER
9 6 51338 3/8-1/2" M/M ADAPTOR
10 8 52311 HOSE END DIA 3/8"-3/8" BPT FEMALE
11 6 52313 HOSE END DIA 3/8"-3/8" BPT 90 DEG FEM
12 2 HOSE 3/8" BORE 2 WIRE x 2500mm
13 2 HOSE 3/8" BORE 2 WIRE x 8620mm
14 4 HOSE 3/8" BORE 2 WIRE x LENGTH
16 REF SEE NOTE HYD RAM 50mm BORE DOUBLE ACTING
NOTE: This slurry door has longer legs than the standard for TVA machines.
