LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 24
1.13 RDS WEIGH CELL WIRING COLOUR CODE
ORANGE = GEARBOX SENSOR
BLUE = BEATER SHAFT SENSOR (HBD MACHINES)
GREEN = WEIGH CELL No. 1
N/A = WEIGH CELL No.2
RED = WEIGH CELL No. 3
YELLOW = WEIGH CELL No. 4
GREY = FLASHING BEACON FOR MAX LOAD WEIGHT

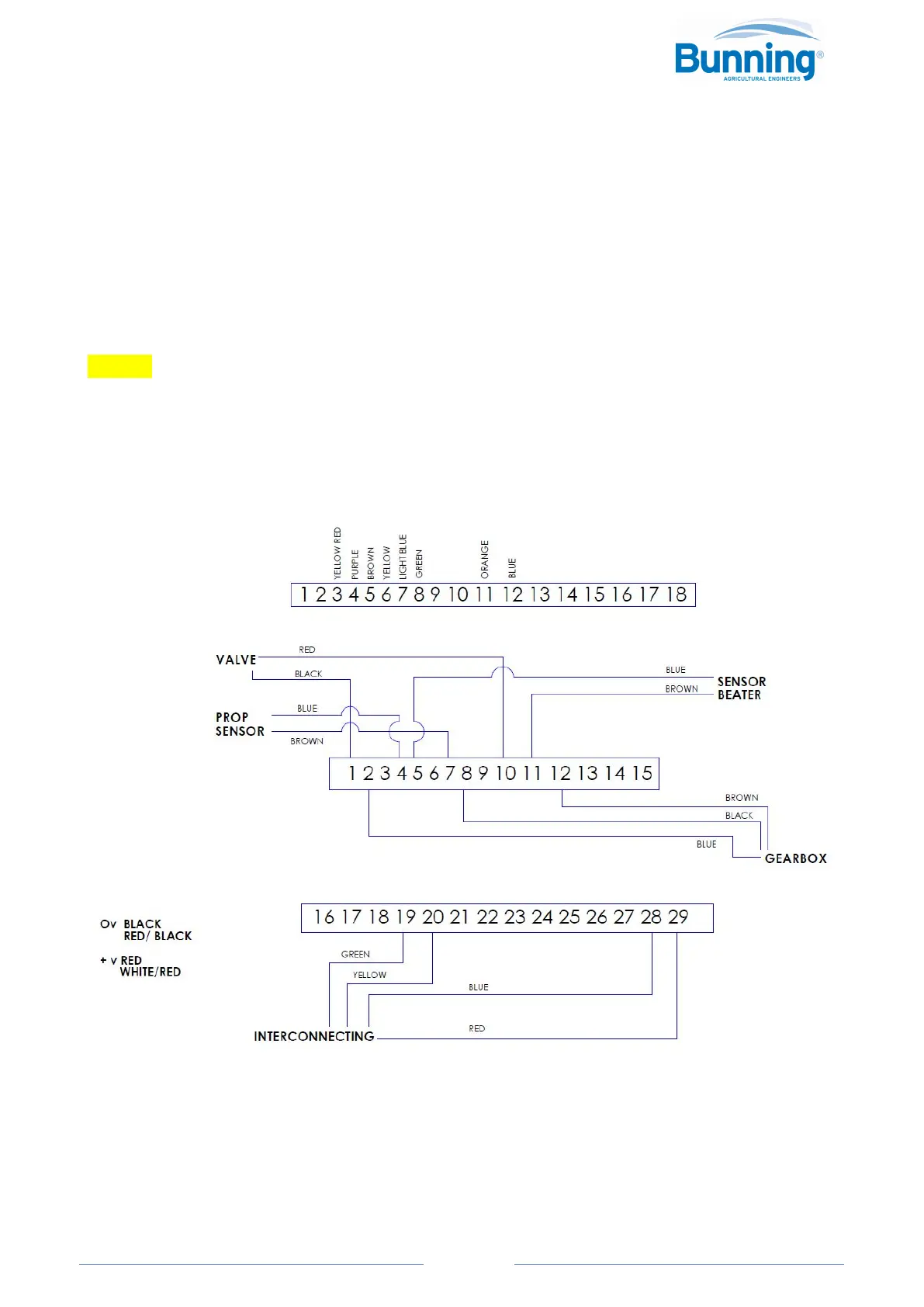

1.14 RDS WIRING DIAGRAM
