LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 39

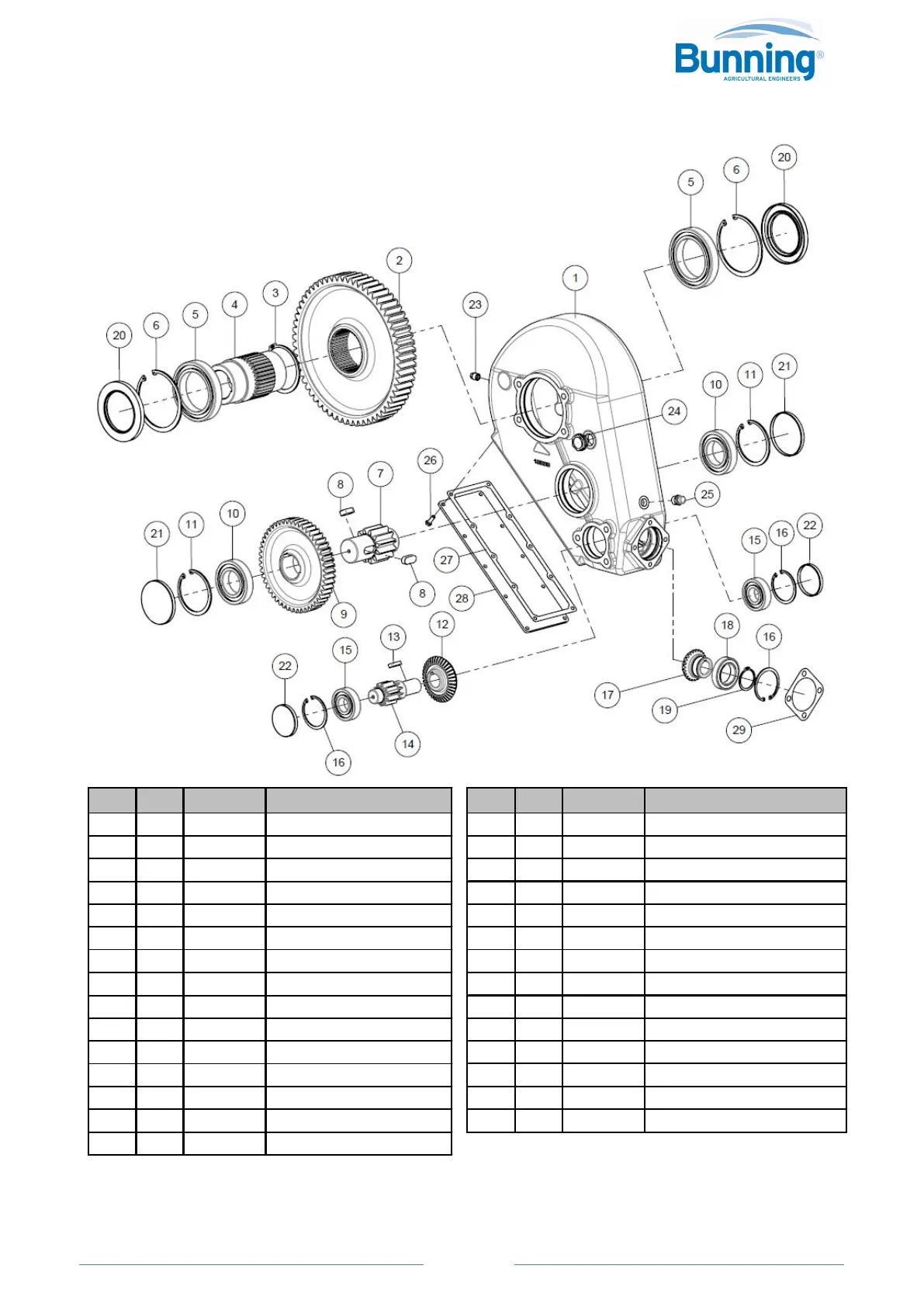

3.7 FLOOR DRIVE GEARBOX 1000/70/32 - B3125 180 & 230 HBD
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3257/1 CASING 16 3 B4006 CIRCLIP
2 1 B3260 CIRCLIP 17 1 B3254 PINION SHAFT
3 1 B3259 GEAR 18 1 BR310 BEARING
4 1 B3258 SLEEVE Ø70 19 1 B4019 CIRCLIP
5 2 BR327 BEARING 20 2 SL207 SEAL
6 2 B3261 CIRCLIP 21 2 SL270 CAP SEAL
7 1 B3240 PINION SHAFT 22 2 SL265 CAP SEAL
8 2 B2276 KEY 23 1 72062 DRAIN PLUG
9 2 B3244 GEAR 24 1 B3995 SIGHT GAUGE
10 2 BR365 BEARING 25 1 B3991 SPRING BREATHER PLUG
11 2 B4012 CIRCLIP 26 8 73030/1 BOLT
12 1 B3248 CROWN BEVEL 27 1 B3263 GASKET
13 1 B3242 PINION SHAFT 28 1 B3262 COVER PLATE
14 1 B2270L KEY 29 1 B3227 GASKET
15 2 BR390 BEARING
Hydraulic Motor part no. B3052 or B3054 (not shown, see Section 3.11 REAR FLOOR SHAFT
ASSEMBLY)
