LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 36

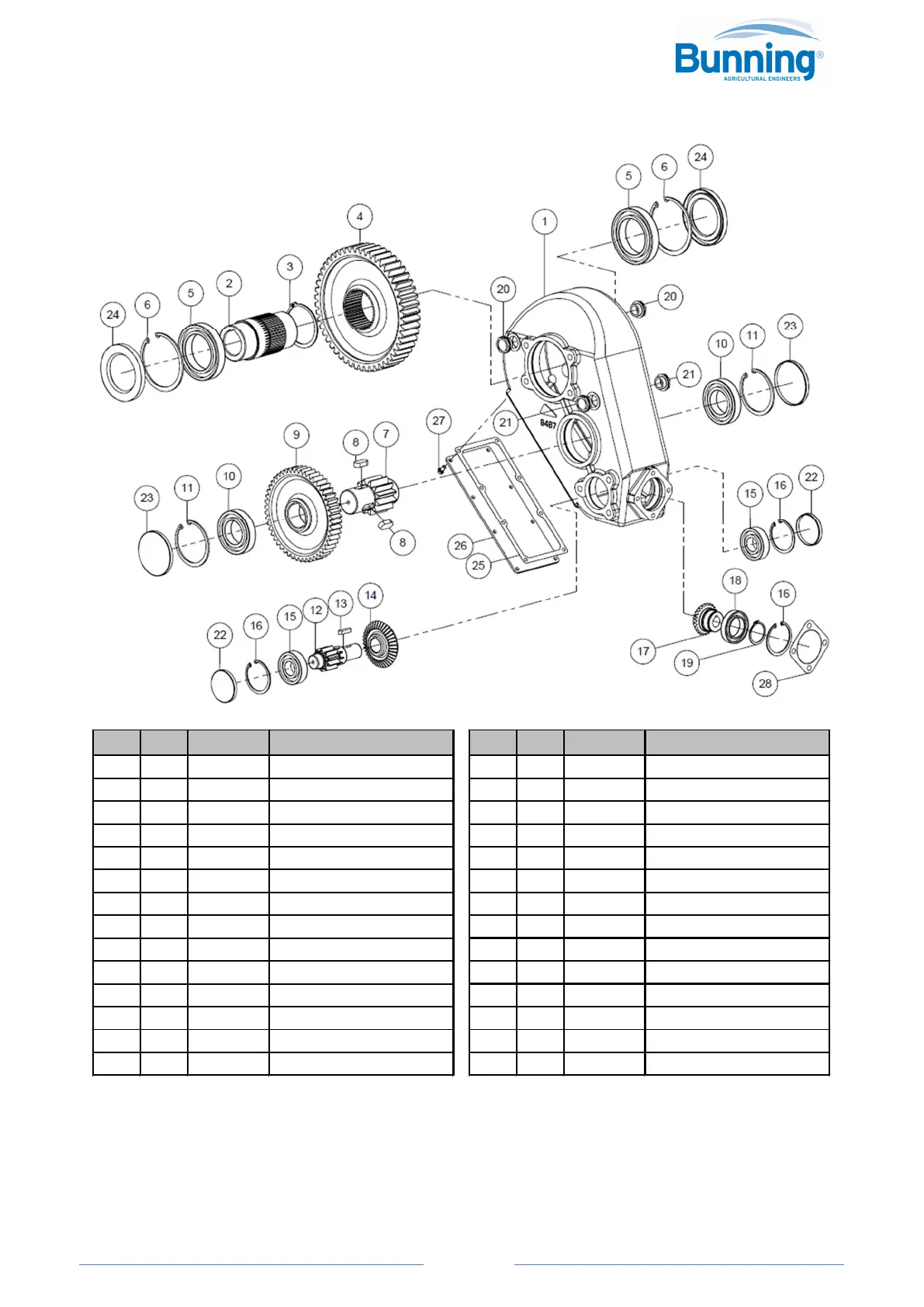

3.4 FLOOR DRIVE GEARBOX 800/60/32 - B3122 TVA STD
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3204 CASING 15 2 BR390 BEARING
2 1 B3230 SLEEVE Ø60 16 3 B4006 CIRCLIP
3 1 B4030 CIRCLIP 17 1 B3254 PINION SHAFT
4 1 B3236 GEAR 18 1 BR310 BEARING
5 2 BR325 BEARING 19 1 B4019 CIRCLIP
6 2 B4016 CIRCLIP 20 2 B3997 BREATHER PLUG
7 1 B3240 PINION SHAFT 21 2 B3995 SIGHT GAUGE
8 2 B2276 KEY 22 2 SL265 CAP SEAL
9 1 B3244 GEAR 23 2 SL270 CAP SEAL
10 2 BR365 BEARING 24 2 SL205 SEAL
11 2 B4012 CIRCLIP 25 1 B3224 GASKET
12 1 B3242 PINION SHAFT 26 1 B3220 COVER PLATE
13 1 B2270L KEY 27 8 73030/1 BOLT
14 1 B3248 CROWN BEVEL 28 1 B3227 GASKET
Hydraulic Motor part no. B3052 or B3054 (not shown, see Sections 3.8, 3.9 and 3.12 REAR FLOOR
SHAFT ASSEMBLY)
To Next Page
