LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 40

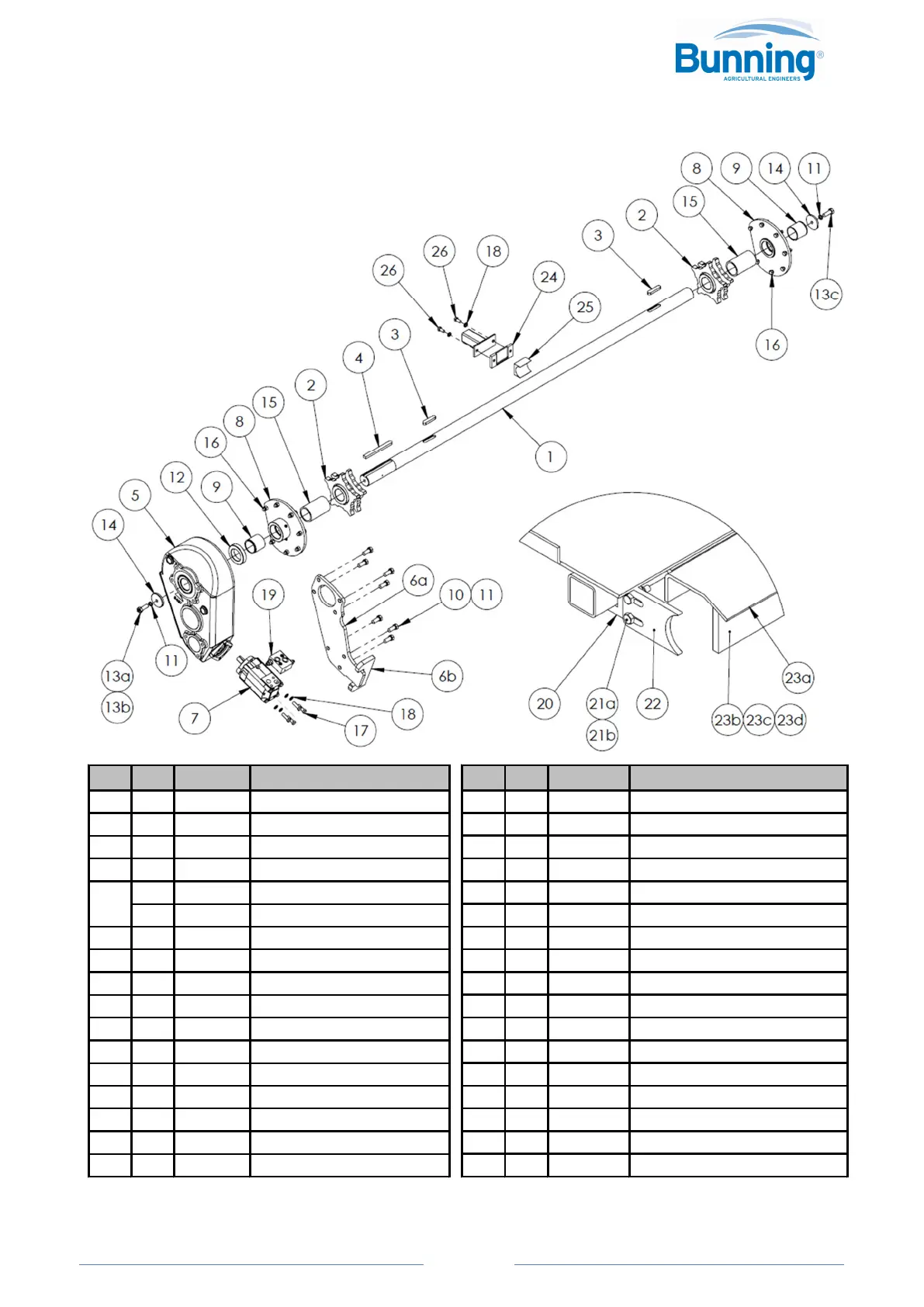

3.8 REAR FLOOR SHAFT ASSEMBLY 150HD & 175HD (800/60/32 GEARBOX)
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B2260 REAR SHAFT Ø60 14 2 B2282/1 END PLATE
2 2 B2110 GYPSY WHEEL ASSY 15 2 B2343 SPACER 120mm THICK
3 2 B2275 KEY 18x11x80 16 14 73092 BOLT & NUT M12x40
4 1 B2278 KEY 18x11x190 17 4 73093 BOLT M12x40
1 B3122 GEARBOX RT800/60 TVA 18 6 74702 SPRING WASHER M12
1 B3123 GEARBOX RT800/60 HBD 19 1 B3078 RELIEF VALVE
6a 1 B3214 GEARBOX MTG PLATE 20 2 B2124 SCRAPER MOUNT (WELDED)
6b 1 B3215 TORQUE PLATE (WELDED) 21a 4 73064 BOLT M10x40
7 1 B3052 HYD MOTOR 200CL 21b 4 73363 NYLOC NUT M10
8 2 B2306 BEARING FLANGE 22 2 B2122 REAR SCRAPER PLATE
9 2 B2322 ACM BUSH Ø60 23a 1 B2824* DRIVE SHAFT COVER ASSY
10 7 73153 BOLT M16x40 23b 1 B4123 DOUBLE WIPE RUBBER
11 9 74704 SPRING WASHER M16 23c 1 B4188/1 CLAMP STRIP
12 1 B2348/1 SPACER 20mm THICK 23d 8 73034 BOLT & NUT M8x35
13a 1 B2253 GREASER BOLT M16x45 24 1 B2337 ACM BUSH SUPPORT PLATE
13b 1 50726 GREASE NIPPLE 25 1 B2330/1 ACM SHAFT SUPPORT Ø60
13c 1 73154 BOLT M16x45 26 2 73090 BOLT M12x25
5
