BUNNING 150HD - Floor Drive Gearbox RT800;60;32 - 150 HD & 175 HD HBD STANDARD

LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 37

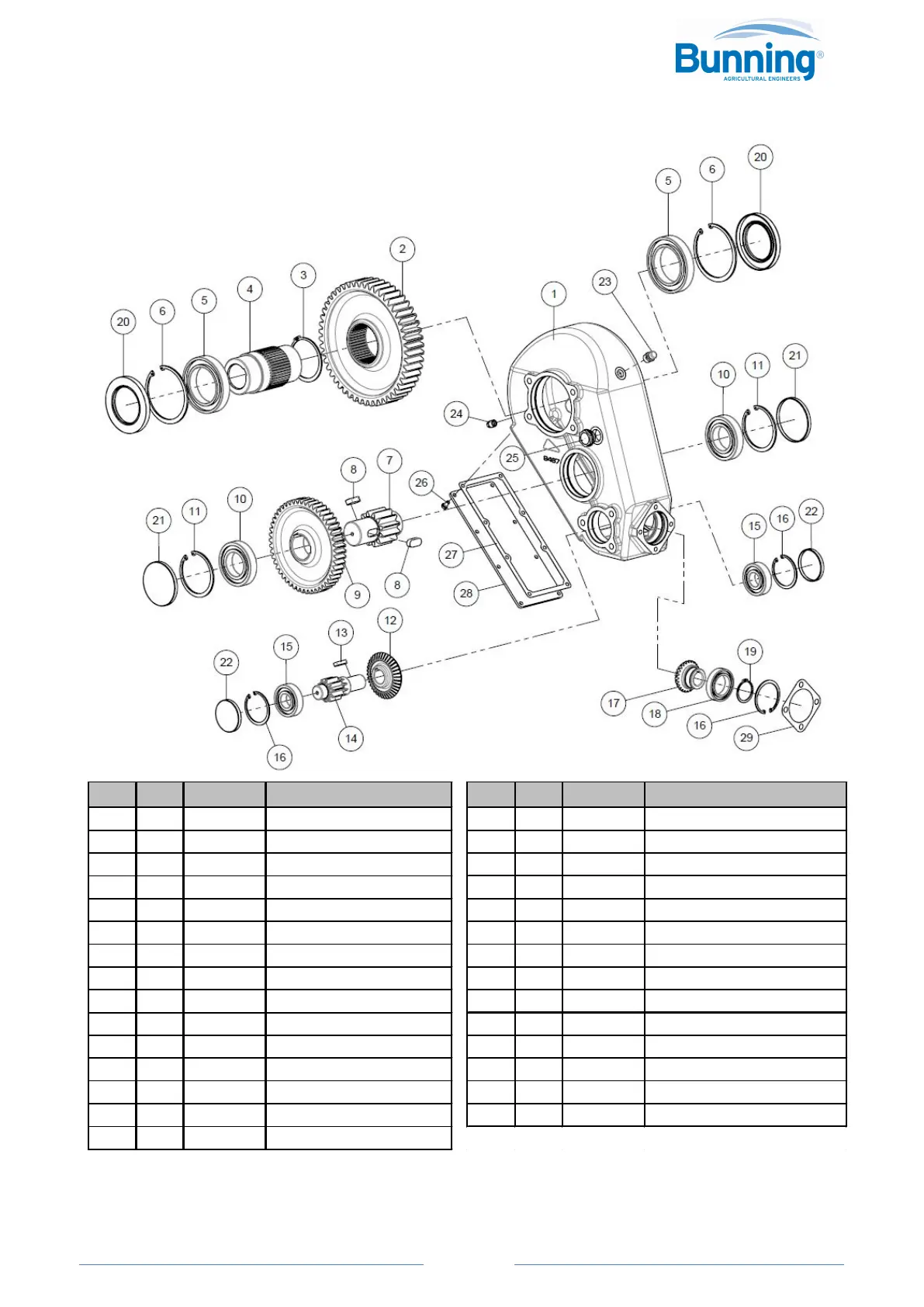

3.5 FLOOR DRIVE GEARBOX 800/60/32 - B3123 150HD & 175HD HBD STD
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3204/1 CASING 16 3 B4006 CIRCLIP
2 1 B3236 GEAR 17 1 B3254 PINION SHAFT
3 1 B4030 CIRCLIP 18 1 BR310 BEARING
4 1 B3230 SLEEVE Ø60 19 1 B4019 CIRCLIP
5 2 BR325 BEARING 20 2 SL205 SEAL
6 2 B4016 CIRCLIP 21 2 SL270 CAP SEAL
7 1 B3240 PINION SHAFT 22 2 SL265 CAP SEAL
8 2 B2276 KEY 23 1 B3991 SPRING BREATHER PLUG
9 1 B3244 GEAR 24 1 72062 DRAIN PLUG
10 2 BR365 BEARING 25 1 B3995 SIGHT GAUGE
11 2 B4012 CIRCLIP 26 8 73030/1 BOLT
12 1 B3248 CROWN BEVEL 27 1 B3224 GASKET
13 1 B2270L KEY 28 1 B3220 COVER PLATE
14 1 B3242 PINION SHAFT 29 1 B3227 GASKET
15 2 BR390 BEARING
Hydraulic Motor part no. B3052 or B3054 (not shown, see Sections 3.8, 3.9 and 3.12 REAR FLOOR
SHAFT ASSEMBLY)
