LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 31
3. FLOOR DRIVE
3.1 HYDRAULIC CIRCUIT FOR FLOOR DRIVE

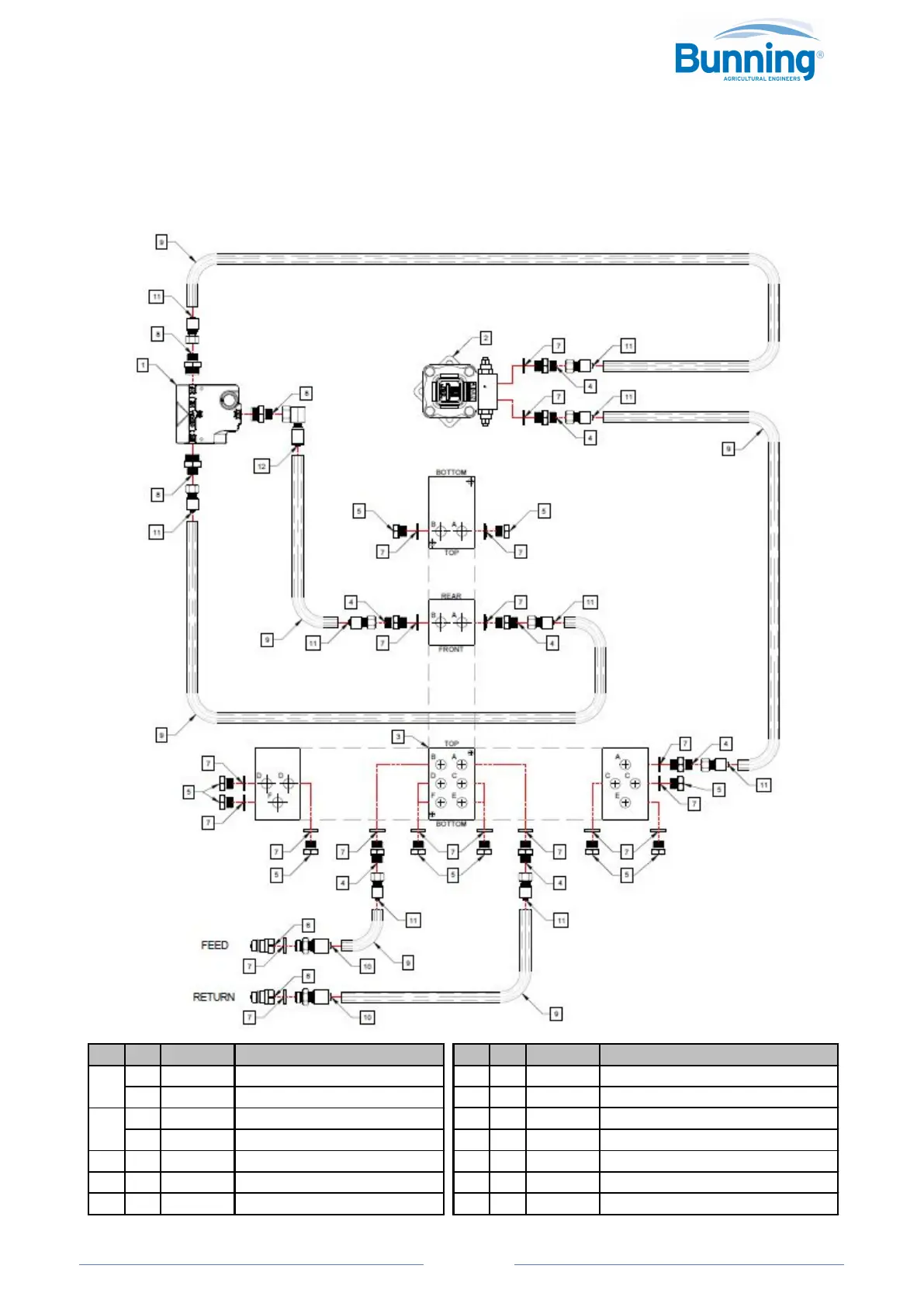

3.1.1 HYDRAULIC CIRCUIT SINGLE DRIVE 800/60 WITH MANUAL FLOW CONTROL
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 B3030/1 MANUAL VALVE 84LPM 6 2 51576 QUICK RELEASE PROBE M 1/2"
1 B3031 MANUAL VALVE 114LPM 7 19 51591 DOWTY SEAL BSP 1/2"
1 B3052 HYD MOTOR 200CL 8 3 52602 FITTING BSP-UNF M-M 1/2"
1 B3054 HYD MOTOR 250CL 9 52794 HOSE 1/2" (PER METER)
3 1 B4369 MANIFOLD BLOCK 10 2 52841 HOSE CRIMP BSP M 1/2"
4 7 51338 FITTING BSP M-M 1/2" 11 9 52843 HOSE CRIMP BSP F 1/2"
5 10 51440 PLUG BSP 1/2" 12 1 52847
HOSE CRIMP 90
o
BSP F 1/2"
1
2
