LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 13
1.8 INSTALLATION AND GENERAL USE OF DETACHABLE SPINNER DECK
1.8.1 GENERAL USE
The detachable spinner deck is designed purely for wider spread patterns and low application
rates of between 1 and 3 tonnes per acre (2 ½ to 7 ½ tonnes per hectare). It must NEVER be used
to spread long straw-based materials or heavy applications beyond 5 tonnes per acre.
1.8.2 INSTALLATION
When fitting or removing the spinner deck assembly great care must be taken not to endanger an
assistant in any way, especially when raising or lowering the unit. Persons must not be put at risk.
Before making any adjustments, fitting or removing attachments, the tractor that the spreader is
attached to must be switched off and the key removed.
FITTING THE SPINNER DECK – See Section 8.8 (DETACHABLE SPINNER DECK) for parts list.
1. Remove guard from output spigots of the auger gearbox.
2. Slide one half of ‘flexi coupling’ onto the shaft, through shaft of spinner gearbox.
3. Slide other half of the ‘flexi coupling’ on the input spigot of the spinner gearbox.
4. Using approved lifting apparatus lift the complete spinner deck assembly using lower lifting
eye on canopy (ensure bolt & nuts No. 20/20 and 16/18 are securely in place).
5. Offer the assembly to rear of the machine and lower into position. Firstly, locate the
‘bucket hooks’ of deck into clevises at the top rear corners of the spreader.
6. Hinge hook bolt No. 14 into anchors and tighten.
7. Fit and tighten 4 bolts to join the two halves of the flexi coupling.
8. The machine is now ready for use with the spinner deck.

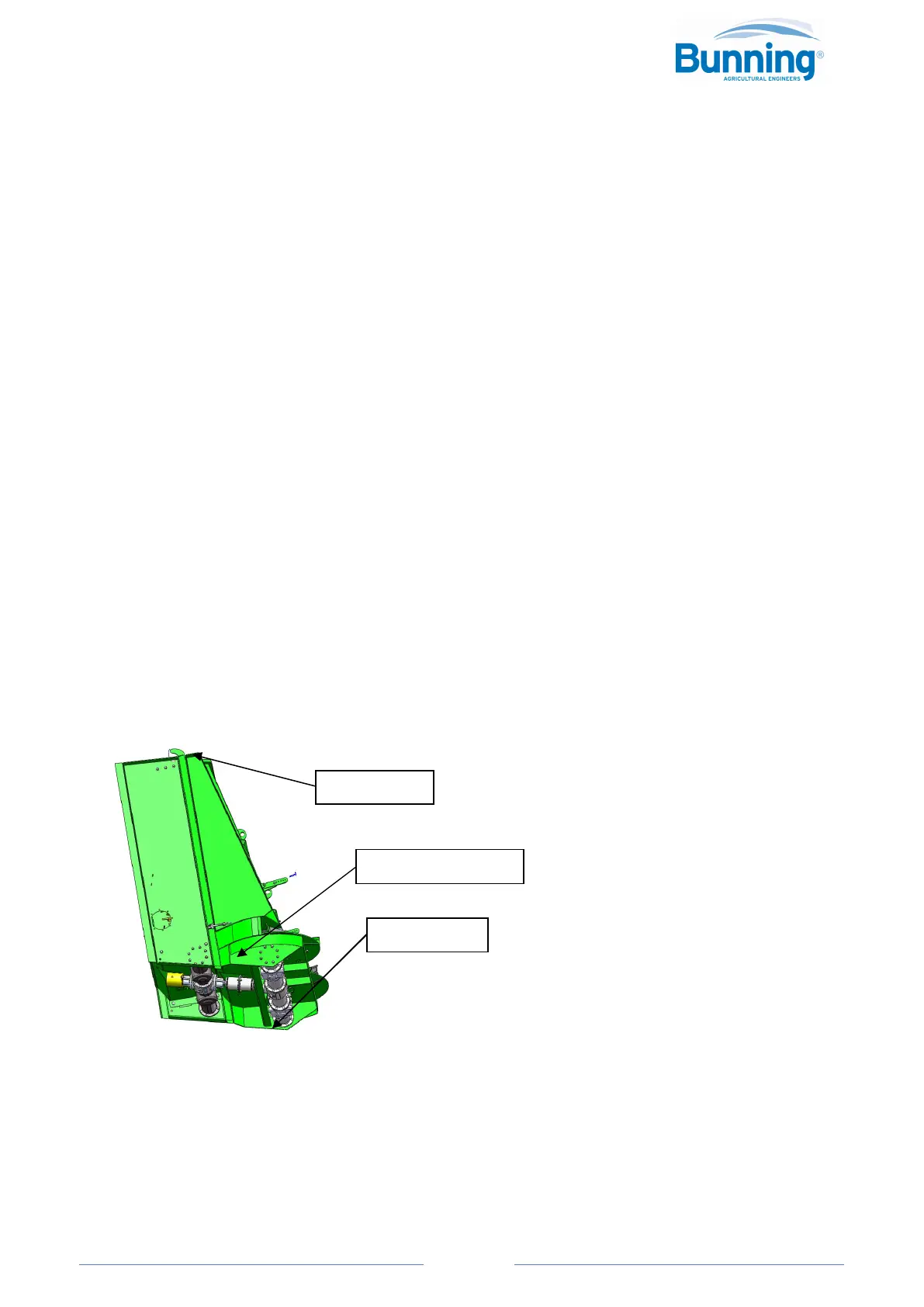

Flexi coupling
Bucket hooks
Cattle ramp fastener
