LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 14
REMOVING THE SPINNER DECK
1 Clean all material from spinners and decks.
2 Remove 4 bolts from the flexi coupling.
3 Loosen hook bolts No. 14 and hinge back to clear anchors.
4 Using approved lifting apparatus lift from lower lifting eye on the canopy firstly pulling the
bottom of the deck assembly away from rear of spreader to the clear auger blades.
5 Lift the assembly clear of the spreader and stand on level ground with the front of the
assembly close to, or against a wall or stable object.
6 Fit the shaft cover to the output spigot of the spreader beater gearbox.
7 The machine is now ready for use without spinner deck.
ADJUSTMENT OF CANOPY & BLADES
For the best results
1 Fix the canopy on the inner positions for light materials i.e. Poultry manure.
2 For heavy material i.e. slurry or sludge adjust canopy out as far as possible so as not to
deposit material beyond the deck into gaps between the discs.
3 To increase the width of the spread pattern adjust the angle of blades forward on the disc.
4 If the spread pattern is light immediately behind the machine adjust the angle of the blades
back.
5 It is possible to achieve an even spread by adjusting blades as opposing pairs. i.e Blade 1
and 3 in position 3 and blade 2 and 4 in position 1.

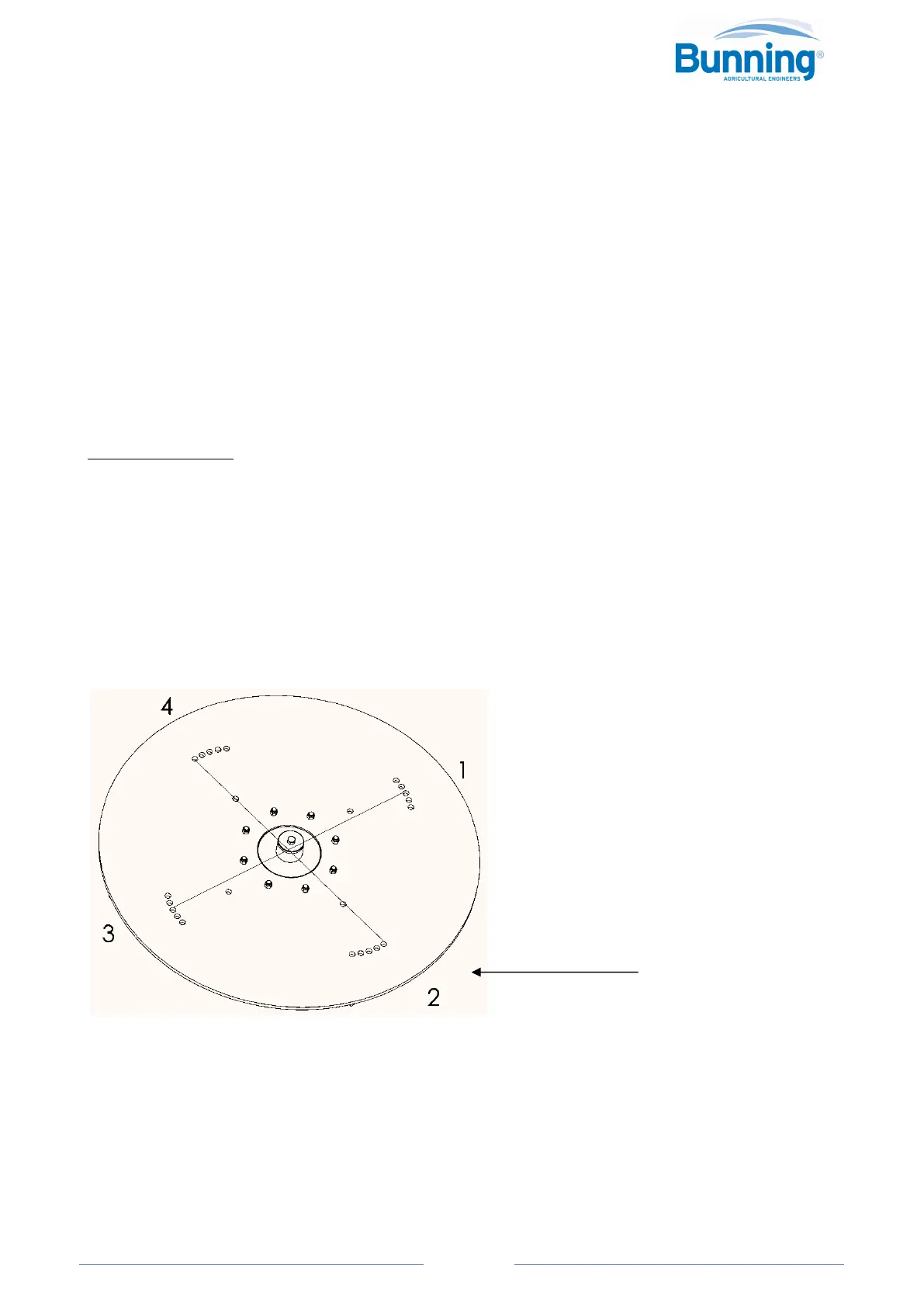

LEFT HAND SPINNER
DIRECTION OF SPIN
