LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 41

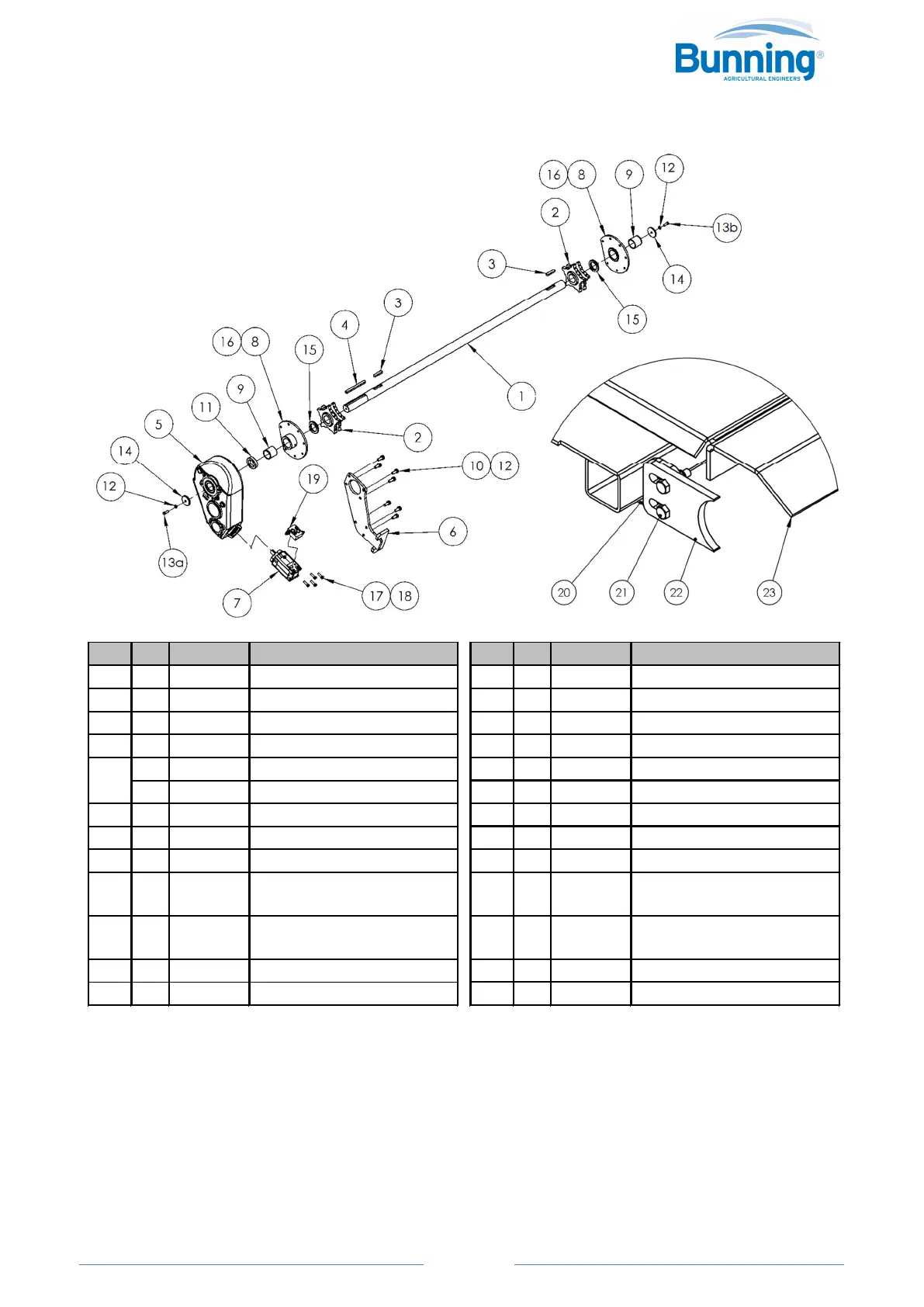

3.9 REAR SHAFT ASSEMBLY WIDEBODY 180 & 230 (800/60/32 GEARBOX)
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B2270
12 9 74704 SPRING WASHER M16
2 2 B2110 GYPSY WHEEL 13a 1 B2253 GREASER BOLT M16
3 2 B2275 KEY 18x11x80 13b 1 73154 BOLT M16x45
4 1 B2278 KEY 18x11x190 14 2 B2282/1 END PLATE
1 B3122 GEARBOX RT800/60 TVA 15 2 B2348/2 SPACER 8mm THICK
1 B3123 GEARBOX RT800/60 HBD 16 14 73092 BOLT & NUT M12x35
6a 1 B3214 GEARBOX MTNG PLATE 17 4 73093 BOLT M12x40
6b 1 B3215 TORQUE PLATE (WELDED) 18 4 74702 SPRING WASHER M12
7 1 B3054 HYD MOTOR 250CL 19 1 B3078 RELIEF VALVE
8 2 B2306
BEARING FLANGE + ACM
20 2 B2124
SCRAPER ATTACHMENT
9 2 B2322 ACM BUSH Ø60 21 4
73064 +
BOLT & NUT M10x40
10 7 73153 BOLT M16x40 22 2 B2122 PLATE REAR SCRAPER
11 1 B2348/1 SPACER 20mm THICK 23 1 B2824 DRIVE SHAFT COVER
5
To Next Page
