LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 124

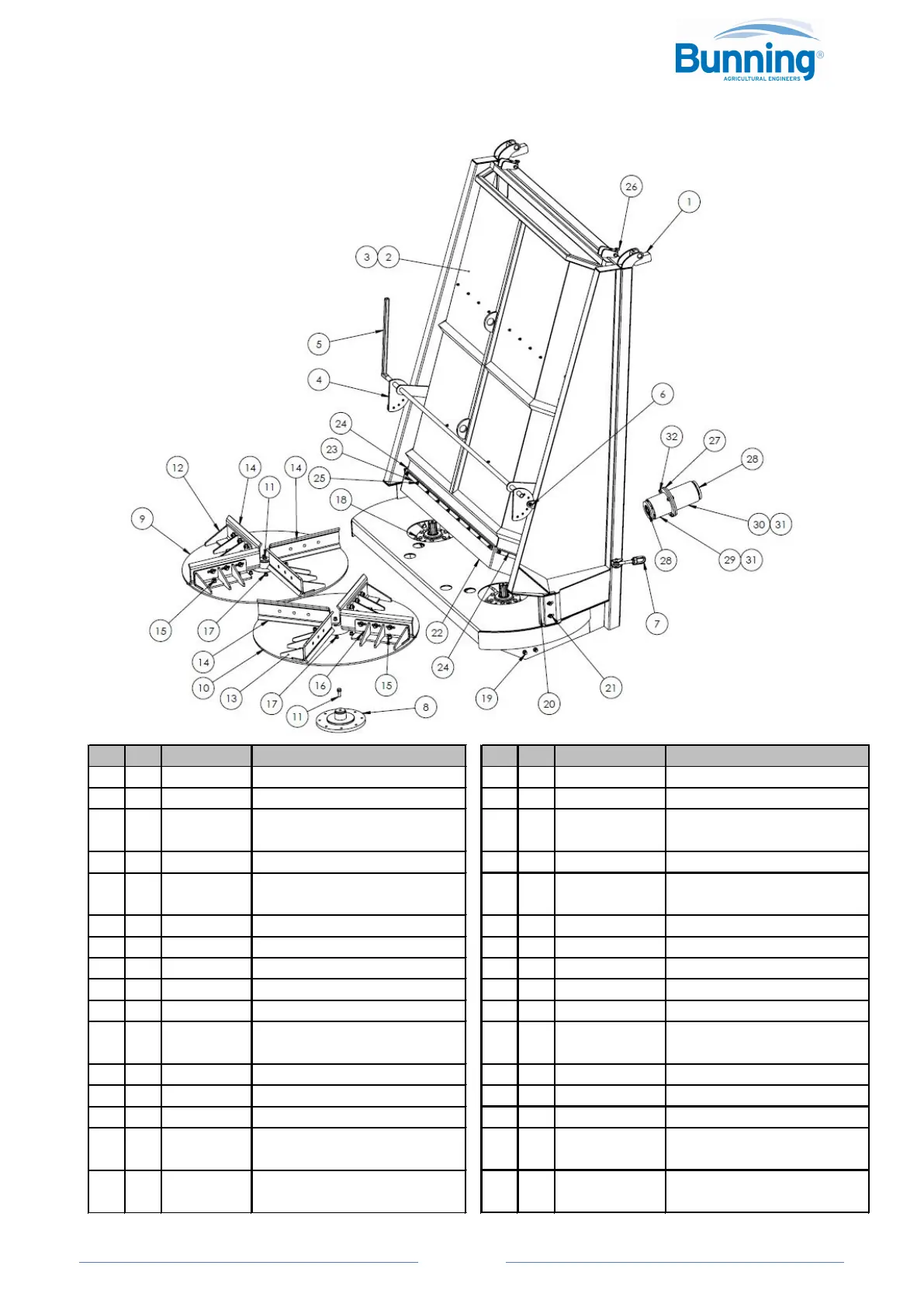

8.9 DETACHABLE SPINNER DECK – ADD ON OPTION
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 2 B8810 BUCKET HOOK 17 16 73095 BOLT & NUT M12x50
2 1 AMS3700 REAR CANOPY ASSEMBLY 18 1 B3190 GRBX SRT18-1830 1000/520
3 1 50759/4 RUBBER LINING 19 16
73129 + 73371
+ 74685
BOLT, NUT & WASHER
M14x50 GR8.8
4 1 AMS3633-2 CANOPY ADJUSTER ASSY 20 2 B5326 WEAR END PLATE
5 2 DMS4385-1 CANOPY ADJUSTER HANDLE 21 2
73830 + 73367
+ 74684
CSK BOLT, NUT & WASHER
M12x50
6 2 73095 BOLT & NUT M12x50 22 1 DMS1090 RUBBER SKIRT
7 2 A2134 HOOK BOLT 23 1 DMS0511 CLAMPING STRIP
8 2 B8336 DISC MOUNTI NG FLANGE 24 2 DMS0512 CLAMPING STRIP
9 1 B8370H LHS SPINNING DISC ASSY 25 13 73034 + 73359 BOLT & NUT M8x35 GR8.8
10 1 B8342H RHS SPINNING DISC ASSY 26 2 73070 + 73363 BOLT & NUT M10x70 GR8.8
11 2
73128/1 +
74703
BOLT & SPRING WASHER
M14x45 GR 10.9
27 1 B8484/1
FLEXIDRIVE COUPLER
COMPLETE ASSY
12
2 B8356/18 BLADE HOLDER LHS
28 2 B8486 FLEXIDRIVE COUPLING
13
2 B8357/18 BLADE HOLDER RHS
29 1 B8489 FLEXIDRIVE TUBE 130
14 8 B1130/18 PADDLE (C/W FASTENERS) 30 1 B8489/1 FLEXIDRIVE TUBE 190
15 8
73155 +
73375
BOLT & NUT M16x50 G8.8
(OUTER)
31 12 B1142 RUBBER DRIVE BLOCK
16 8
73155/1 +
73375
BOLT & NUT M16x50 G12.9
(INNER)
32 4 73092 + 73367 BOLT & NUT M12x35 GR8.8
To Next Page
