LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 129
9. ELECTRICS

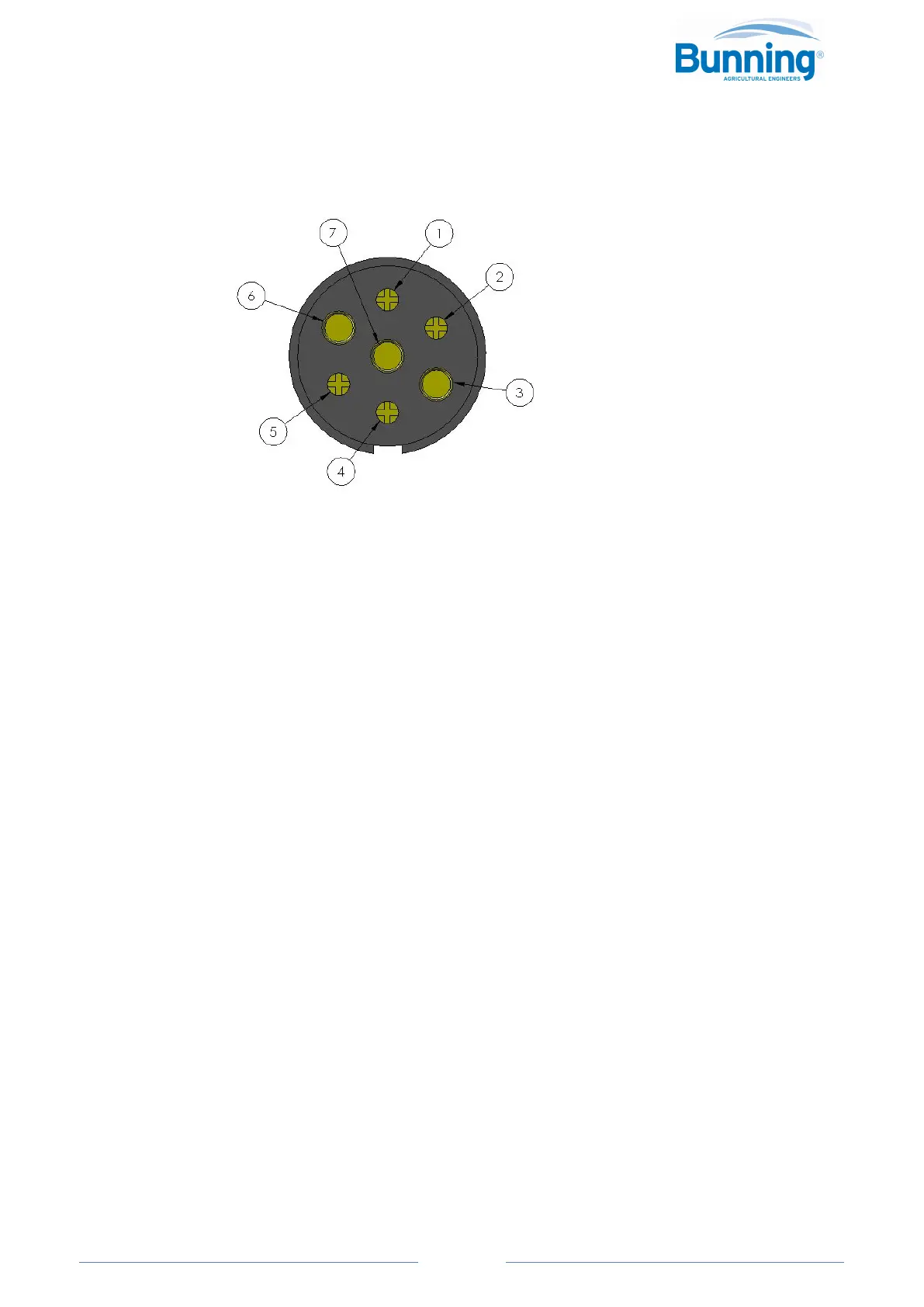

9.1 WIRING FOR 12v 7 PIN PLUG
1) YELLOW –Y– L.H INDICATOR
2) BLUE –B– FOG
3) WHITE -W– EARTH
4) GREEN – G- R.H. INDICATOR
5) BROWN –BR- TAIL
6) RED –R- STOP
7) BLACK –BL- SIDE MARKERS
Pins 5 & 7 may be linked.
FOR NORTH AMERICAN UNITS / COMMERICAL PLUG
1) WHITE (EARTH) – R – STOP
2) BLACK – G – R.H. INDICATOR
3) YELLOW – BR – TAIL
4) RED – W – EARTH
5) GREEN – BL – SIDEMARKERS
6) BROWN – Y – L.H. INDICATOR
7) BLUE – B – FOG
