LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 19
1.11.3 LOADCELL DIAGNOSTICS
A multi-meter will be needed for these tests, capable of reading in V and mV.

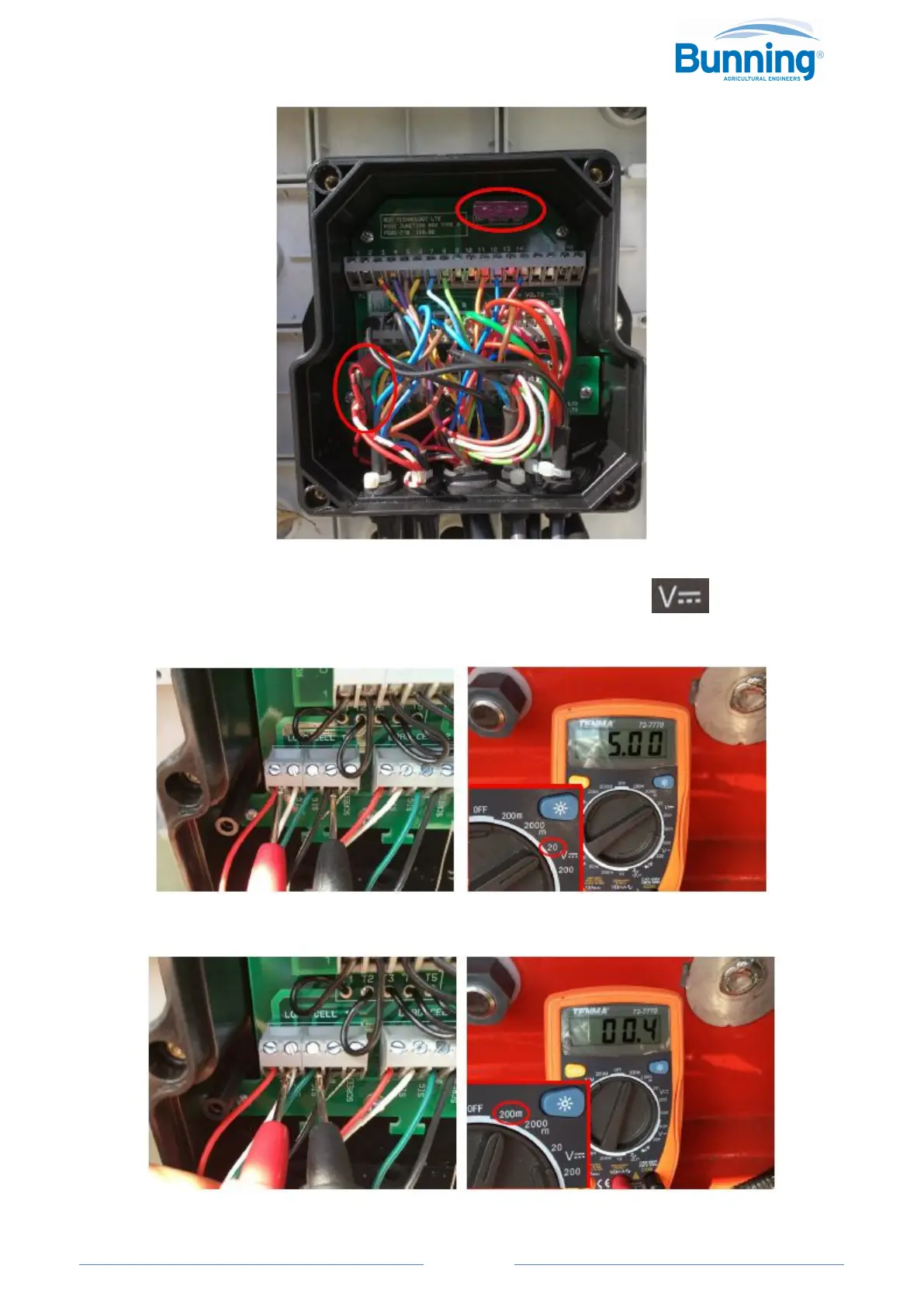

1.11.3.1 Measure between the red (+v) and black (0v) wire on one of the loadcell inputs, it should
be 5v. If not, then there is an issue with the power supply to the cells.
1.11.3.2 Measure between the white (Sig +) and green (Sig -) wires (any input can be used as they
are all summed together on the board)
