BUNNING 150HD - Page 38

LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 33

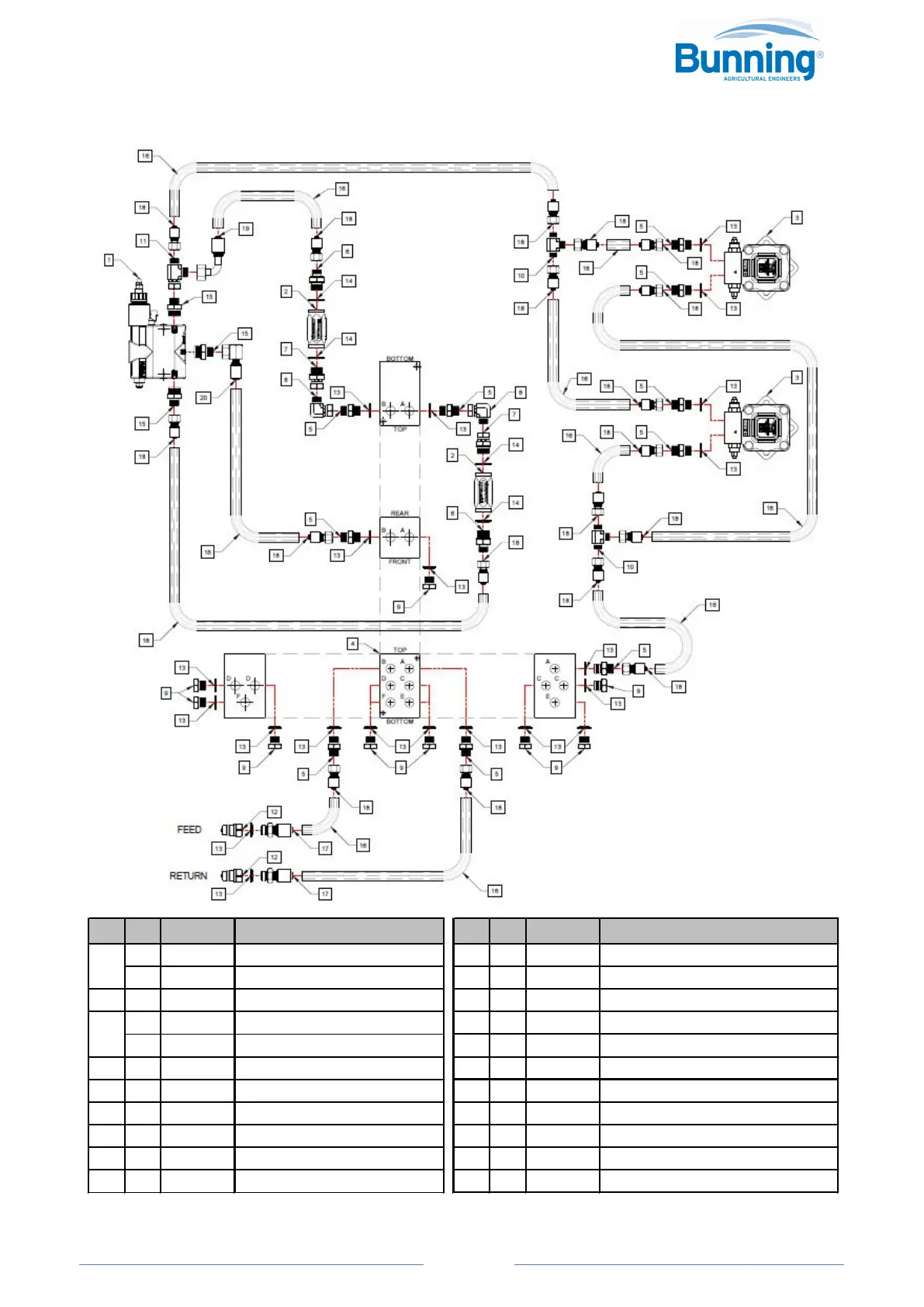

3.1.3 HYDRAULIC CIRCUIT DUAL DRIVE 800/60 WITH ELECTRIC FLOW CONTROL
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 B3034 ELECTRIC VALVE 76LPM 10 2 51448 FITTING TEE BSP M-M-M 1/2"
1 B3035 ELECTRIC VALVE 114LPM 11 1 51458/1 FITTING TEE BSP M-M-F 1/2"
2 2 B3038 CHECK VALVE F-F 3/4" 12 2 51576 QUICK RELEASE PROBE M 1/2"
2 B3052 HYD MOTOR 200CL 13 21 51591 DOWTY SEAL BSP 1/2"
2 B3054 HYD MOTOR 250CL 14 4 51593 DOWTY SEAL BSP 3/4"
4 1 B4369 MANIFOLD BLOCK 15 3 52602 FITTING BSP-UNF M-M 1/2"
5 10 51338 FITTING BSP M-M 1/2" 16 52794 HOSE 1/2" (PER METER)
6 2 51340
FITTING BSP M-M 1/2"-3/4"
17 2 52841 HOSE CRIMP BSP M 1/2"
7 2 51372 FITTING BSP M-F 3/4"-1/2" 18 18 52843 HOSE CRIMP BSP F 1/2"
8 2 51428
FITTING 90
o
BSP M-F 1/2"
19 1 52845
HOSE CRIMP 90
o
BSP F 1/2"
9 9 51440 PLUG BSP 1/2" 20 1 52847
HOSE CRIMP 90
o
BSP F 1/2"
1
3
