E-10-
1067
POSITIONER TYPE 1067

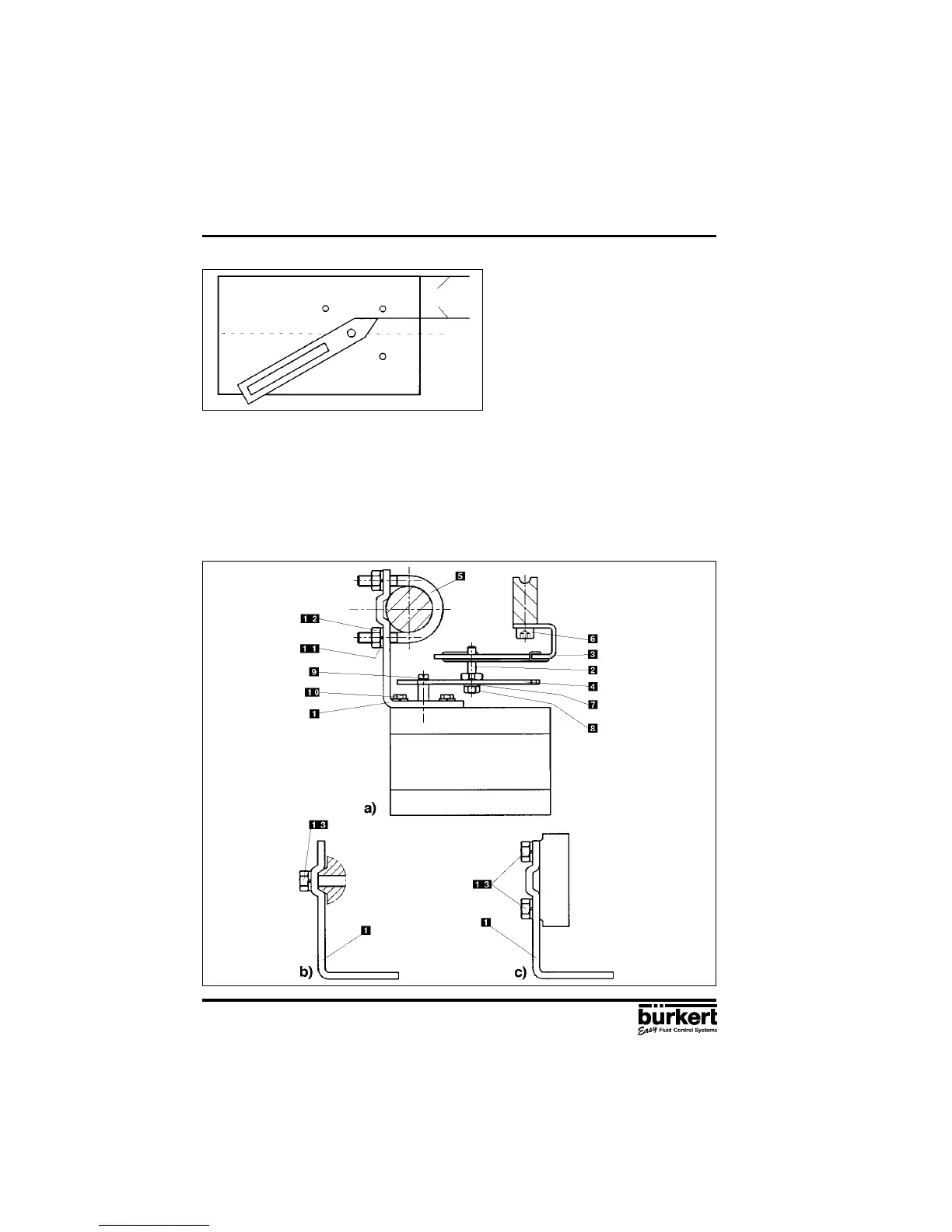

Fig. 9 Position of lever during assembly
3 INSTALLATION
Set positioner, with the mounting elbow screwed on to it, on the membrane drive so that the pin
slots into the carrier , the point of the lever runs parallel with the upper edge of the positioner
(Fig. 9) and the rear side of the positioner runs parallel with the carrier . Fasten the positioner to
the membrane drive in this position as appropriate to the following variants:
- In the case of membrane drives with pillar lanterns, fasten mounting elbow with two U-bolts ,
nuts and washers to the appropriate pillar lantern (Fig. 10a).
- In the case of membrane drives with cast lanterns, fasten mounting elbow with one screw
(Fig. 10b) or four screws (Fig. 10c) to the appropriate cast lantern (Fig. 10a).
Fig. 10 Assembly of positioner to a continuous valve with membrane drive
Parallel
