1067
POSITIONER TYPE 1067
E-15-
3 INSTALLATION
3.3 Electrical connections

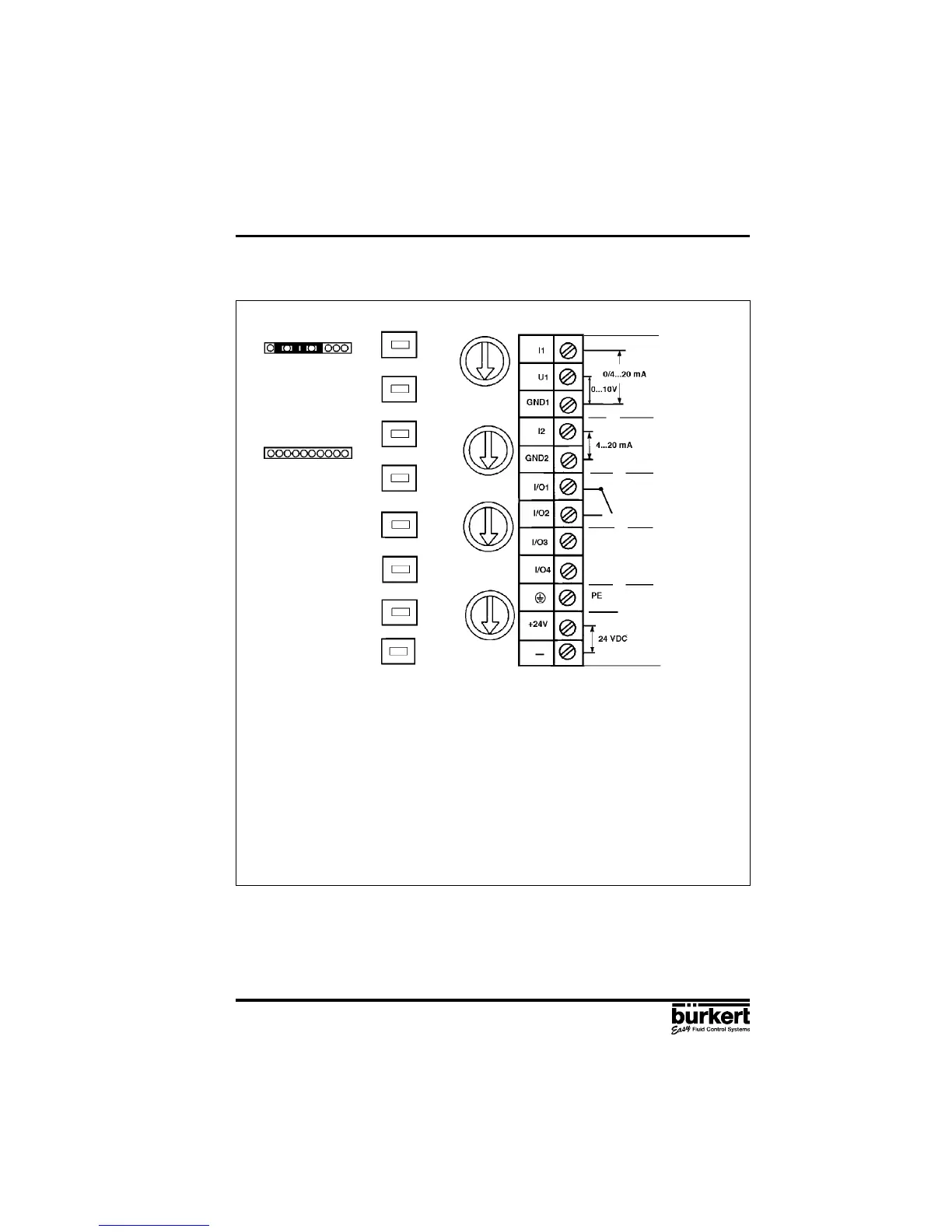

Fig. 20 Assignment of terminals
Input U1 (unit signal 0 ... 10 V): Input resistance 200 kΩ
Input I1 (unit signal 0/4 ... 20mA): Input resistance < 175 Ω
Input I2 (unit signal 4 ... 20mA): Input resistance < 175 Ω
Caution: The PE terminal must be connected to a ground point using the shortest possible cable
(max. 30 cm) to ensure electromagnetic compatibility (EMC).
Signal input:
- either for valve
position control
- or for process
regulation control
Binary input
Contact
Output
(Option)
Power Supply
Input for process
regulation
