POSITIONER TYPE 10673 INSTALLATION

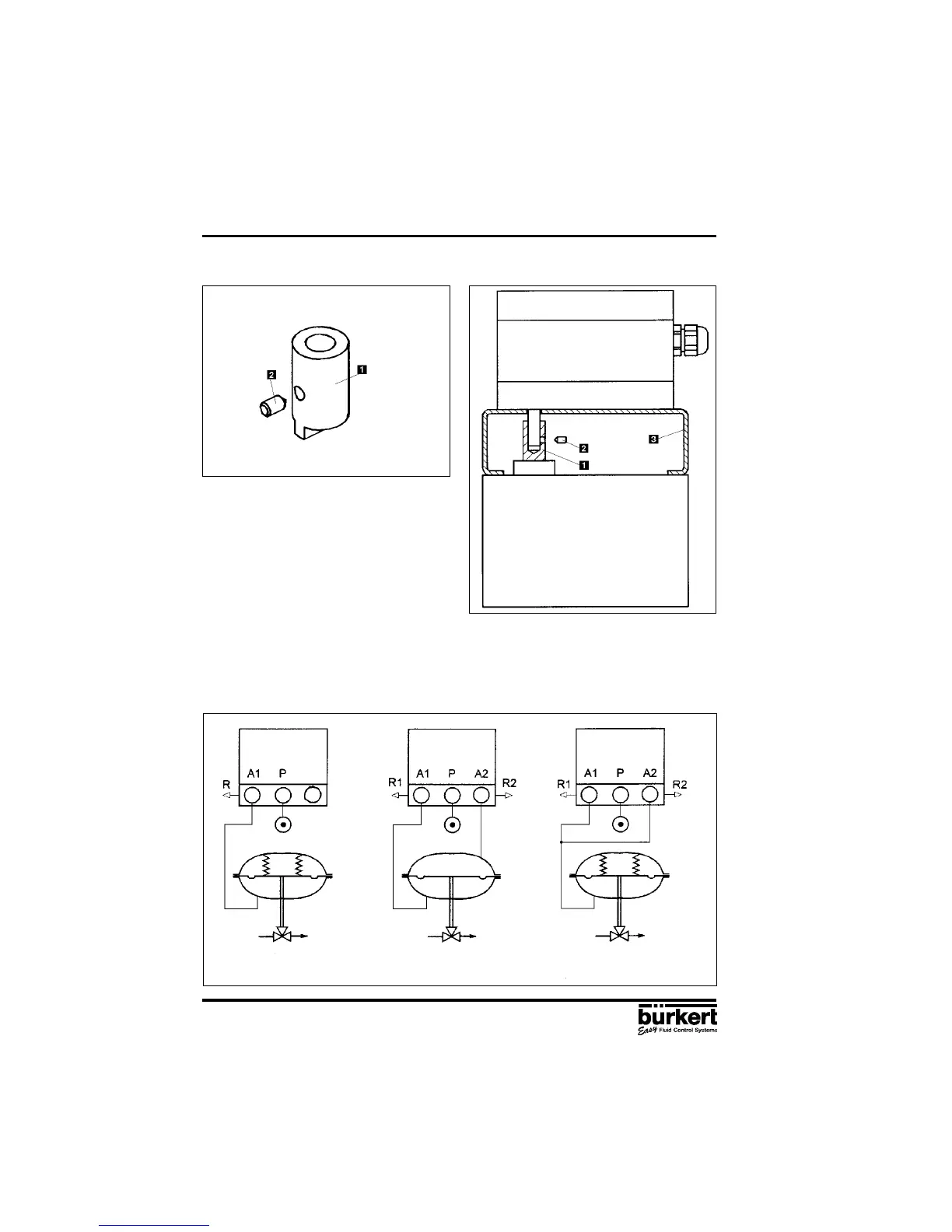

Fig. 17 Coupling for continuous valve with
rotary drive
Fig. 18 Assembly of positioner on to a
continuous valve with rotary drive
Continuous valve with rotary drive
Single acting Double acting Single acting, parallel
(for higher flow)
3.2 Fluid ports
Connect P port with compressed air supply (6 bar max.)
