POSITIONER TYPE 10674 OPERATION

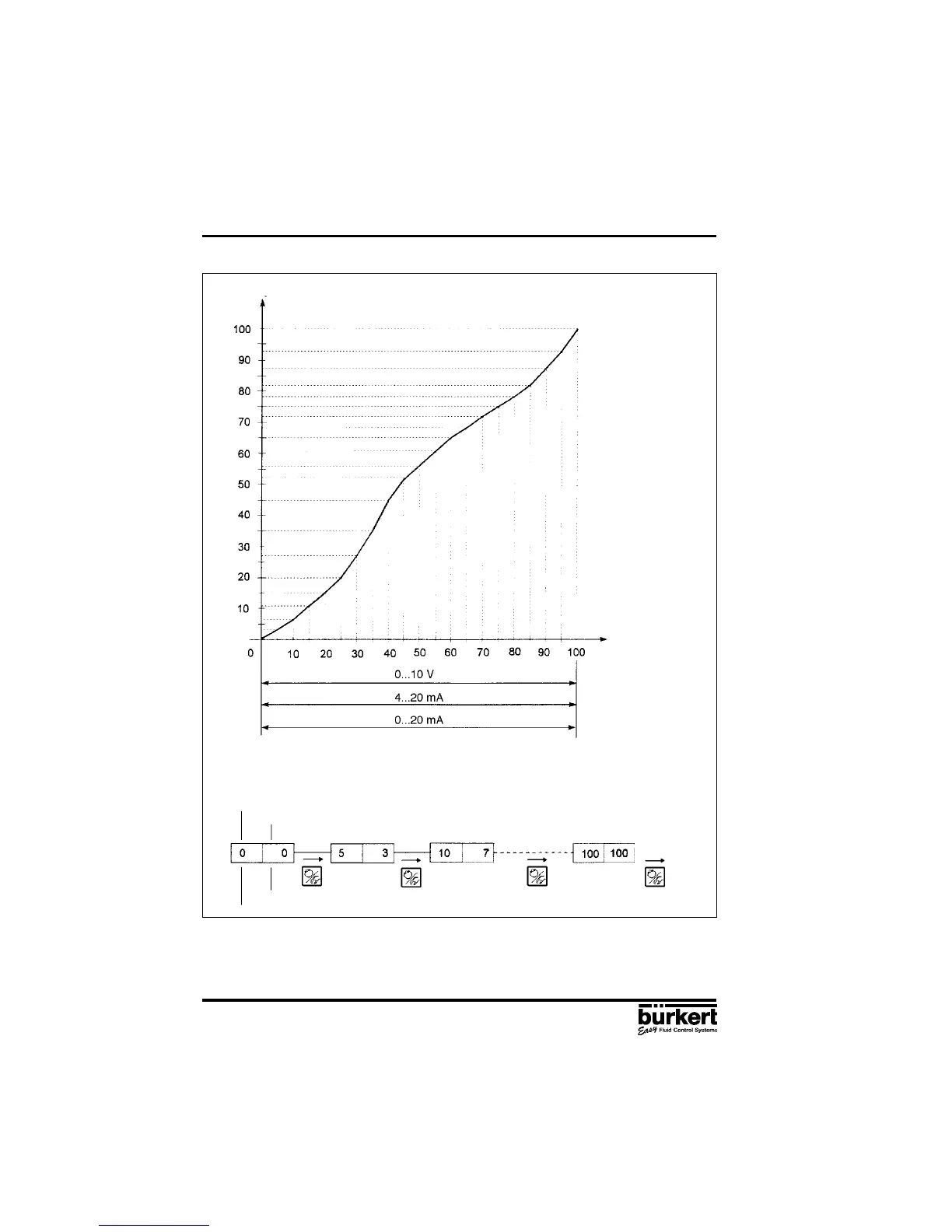

Fig. 28 Example of a characteristic curve to be programmed
Plug travel (%)
Unit signal (%)
Set position (%)
Restart point
Input with "Arrow" keys
Plug travel (%)
