Burkert 6014 - Fluidic Data; Type Label

7
5.4 Fluidic data

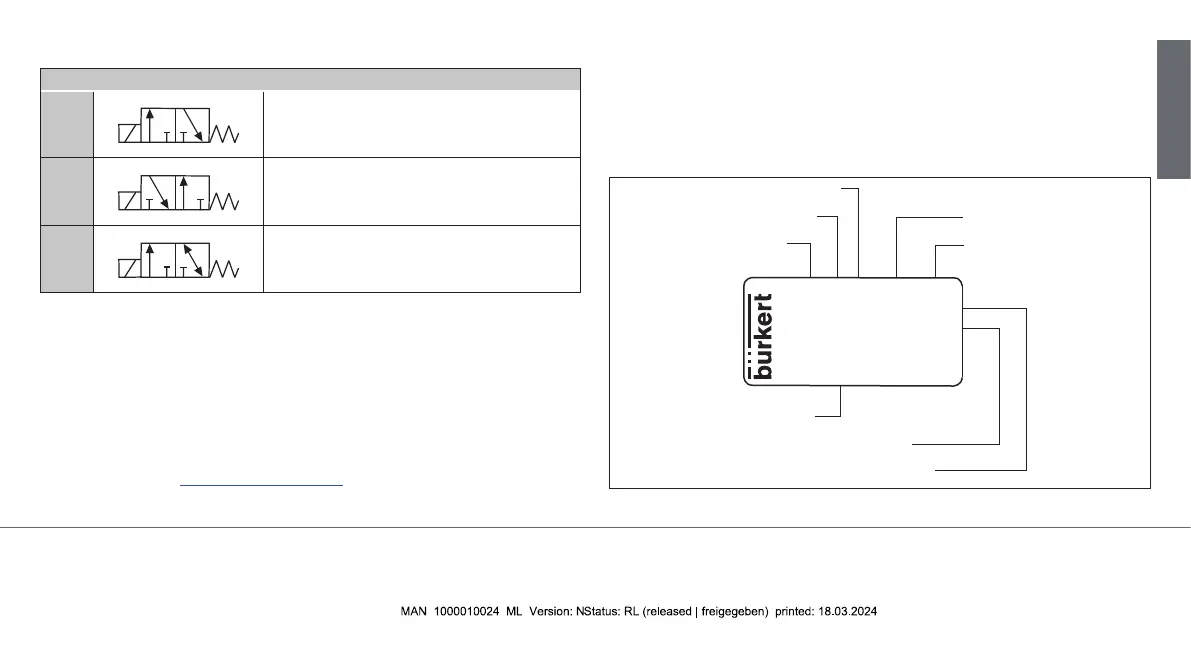

Circuit functions
C
(NC)
2(A)
1(P)
3(R)
3/2-way valve, direct-acting,
normal output A unloaded
D
(NO)
2(B)
1(P)
3(R)
3/2-way valve, direct-acting, normal
output B pressurized
T
2(A)
1(P)
3(R)
3/2-way valve, direct-acting,
universal valve
Tab. 1: Circuit functions
Pressure range see type label
Media neutral gaseous and liquid media, which do
not attack body and sealing materials (e.g.
compressed air, town gas, natural gas, water,
hydraulic uid, petrol, technical Vacuum).
See Chemical Resistance Chart
country.burkert.com
Medium temperature
FKM -10 – +100 °C (PA coil)
-10 – +120 °C (Epoxid coil)
Viscosity max. 21 mm²/s
5.5 Type label
Made in Germany
00450000
W14UN
CE
6014 C 1,5 FKM MS
G1/8 PN 0-16 bar
24V 50 Hz 8W
Identications number
Voltage / frequency / power
Port connection / nominal pressure
Type
Circuit function
Orice
Sealing material
Body material
Fig. 1: Type label (example)
english
