Burkert 6014 - Fluid Installation

9

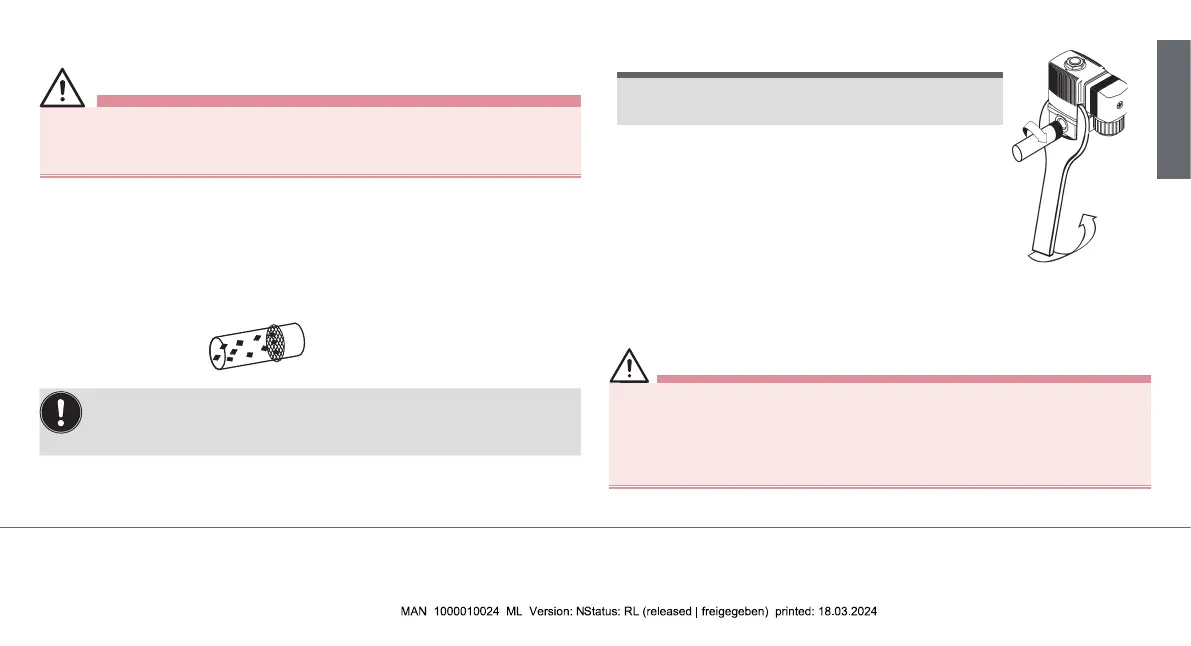

6.1 Fluid installation
DANGER!
Risk of injury from high pressure in the equipment/device.
▶ Before working on equipment or device, switch o the pressure
and deaerate/drain lines.
Installation position: any, coil preferably upwards.
Procedure:
→ Before installation, clean any possible dirt o the pipelines and
ange connections.
→ If required, install a dirt trap to prevent malfunctions.
Mesh size:
0,2 – 0,4 mm
Pay attention to the ow direction of the valve.
from 1(P) → 2(A) (Circuit function C) or
from 1(P) → 2(B) (Circuit function D)
Valve with threaded connection:
→ Use PTFE tape as sealing material.
NOTE!
Caution risk of breakage.
▶ Do not use the coil as a lifting arm.
→ Hold the device with a suitable tool
(open-end wrench) on the body and screw
into the pipeline.
Valve with anged connection:
→ Remove the cover plate.
→ Loosen the nut on the coil and remove coil.
WARNING!
Risk of injury due to escaping medium.
▶ Make certain the seals included with delivery are properly seated
in the valve.
▶ Ensure that the manifold is even.
▶ Ensure that the surface quality of the manifold is adequate.
