10
Seal
Nut
Coil
Cover plate
Manifold

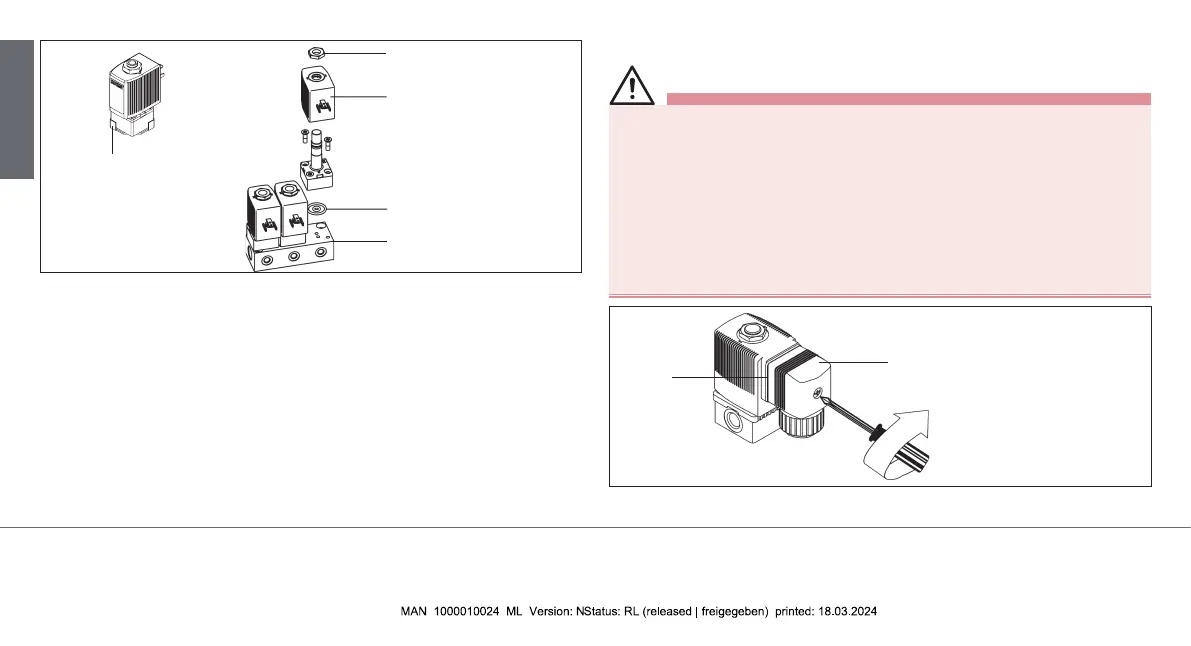

Fig. 2: Valve with anged connection
→ Insert the seal into the body.
→ Screw the body onto the manifold (tightening torque: max. 1.5 Nm).
→ Attach the coil and screw on the nut (tightening torque: max. 5 Nm).
Type 6014P
Observe a tightening torque of 4-5 Nm when tightening the hollow
screw.
6.2 Electrical connection with cable plug
DANGER!
Risk of electric shock.
▶ Before working on equipment or device, switch o the power
supply and secure to prevent reactivation.
▶ Observe applicable accident prevention and safety regulations
for electrical equipment.
If the protective conductor contact between the coil and body
is missing, there is danger of electrical shock.
▶ Always connect protective conductor.
▶ Check electrical continuity between coil and body.
Seal
max. 1 Nm
Type 2508/2518
Fig. 3: Electrical connection with cable plug
