- Use cables with an operating limit temperature of at least 80 °C.
- For normal operating conditions the measuring signal can be transmitted by a shielded
cable of 0,75 mm
2
cross section.
- The cable must not be installed in combination with carrying lines with a higher voltage
or frequency.
- If a combined installation cannot be avoided, a minimum space of 30 cm should be
respected.
- The power supply must be filtered and regulated.

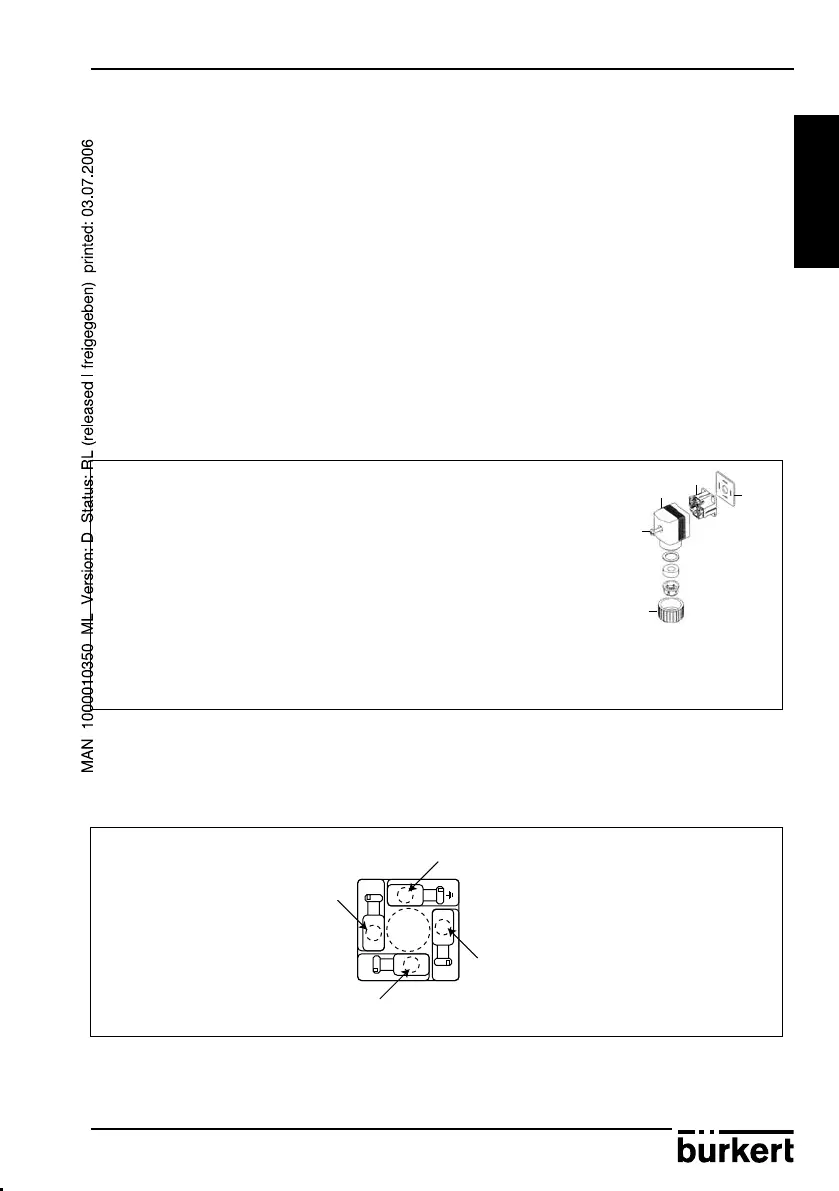

- Extract part [3] from part [2]
- Unscrew cable gland [5]
- Insert cable into part [2] through cable gland [5]
- Wire part [3] as described in
paragraph 2.3.2, 2.3.4 or 2.3.5
- Insert part [3] back
- Fasten cable gland [5]
- Place gasket [4] between the cable plug and the fixed connector
- Connect the cable plug to the sensor
- Fasten screw [1] to ensure tightness and correct electrical contact.
This version has one NPN transistor output and one PNP transistor output.
Max. wiring distance is 50 metres.
