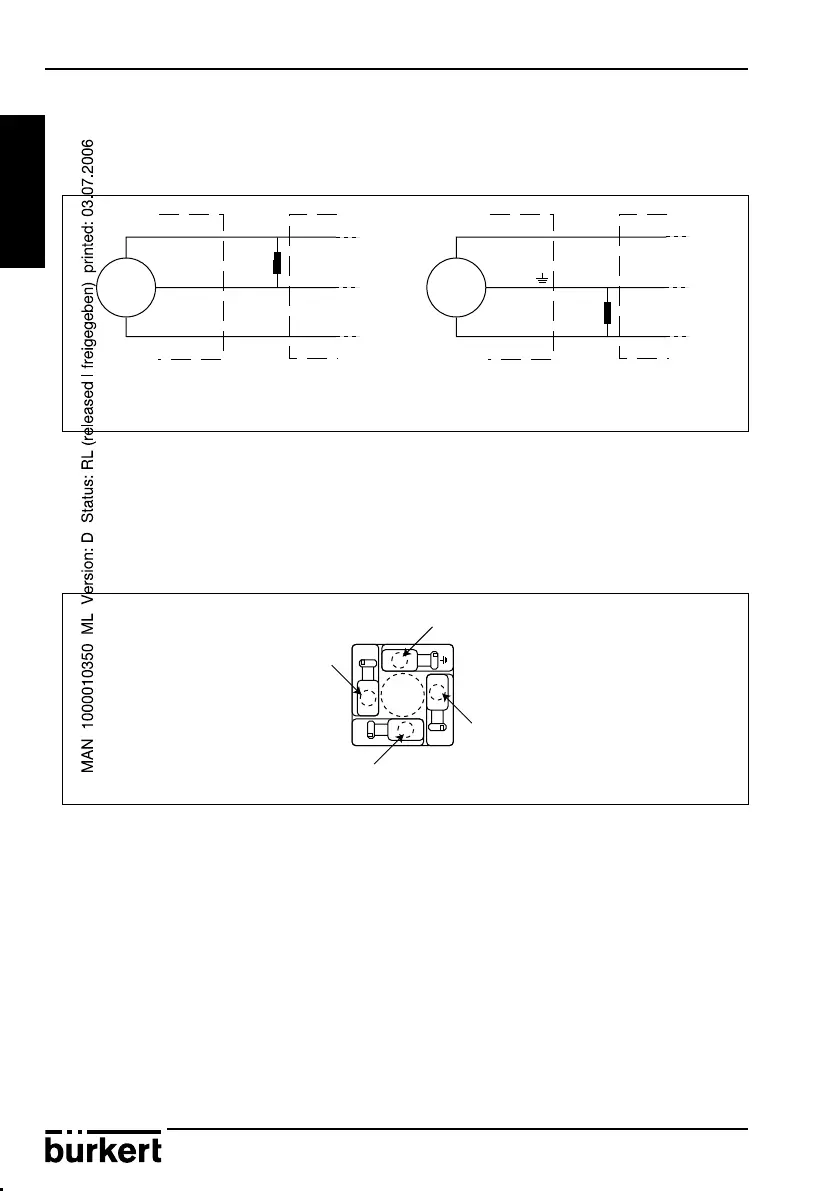

Burkert 8020 - 2.3.3 Wiring the Low Power Hall Version with 1 Pulse Output



ENGLISH


Depending on the PLC type connect either the NPN or the PNP output.
 
This version has one NPN pulse output.
Max. wiring distance is 50 metres.

The NPN pulse output of the Low Power Hall version can be connected to a PLC in the
same way as the NPN output of a Hall version (see § 2.3.2).
NPN
0 V
V+
V+
IN
0 V
1
2
3
PNP
0 V
V+
V+
IN
0 V
1
3
Output
Output
 







Sensor SensorReceiver Receiver
Load
Load
