7.3 Installation of the dosing controller 8035 Batch
The dosing controller type 8035 Batch comprises a dosing controller type SE35 Batch and a sensor-fitting type
S030. The dosing controller SE35 Batch is assembled on the sensor-fitting S030 by a quarter-turn rotation system:
1. Install the S030 sensor-fitting on the pipes,
2. Install the dosing controller SE35 Batch on the sensor-fitting S030,
3. Finalise the installation of the 8035 Batch.
7.3.1 Install the S030 sensor-fitting on the pipes
→ Select a sensor-fitting S020 suitable for the speed of the fluid in the pipes
To select a sensor-fitting, refer to the calculation tables on the technical data sheet for the relevant
sensor-fitting.
→ Choose a position for the sensor-fitting according to the design of the pipes, in such a way that:
- the upstream and downstream distances are respected according to the design of the pipes, see Fig. 10,
chap. 7.2.1 and norm EN ISO 5167-1,
- the pipes are always filled to the level of the sensor (see Fig. 11, chap. 7.2.1),
- when mounted vertically, the flow direction of the fluid is upwards (see Fig. 11, chap. 7.2.1),
- air bubbles do not form around the sensor-fitting (see Fig. 11, chap. 7.2.1).
→ If necessary, use a flow conditioner to improve measurement precision,
→ Install the sensor-fitting on the pipes according to the instructions in the relevant Operating Instructions.
7.3.2 Install the dosing controller SE35 Batch on the sensor-
fitting S030
1
→ Install the dosing controller 2 in the sensor-fitting 1.
→ Turn the dosing controller 2 by a quarter turn.
→ Tighten the lateral screw(s) 3 to lock the dosing controller in place on
the sensor-fitting.

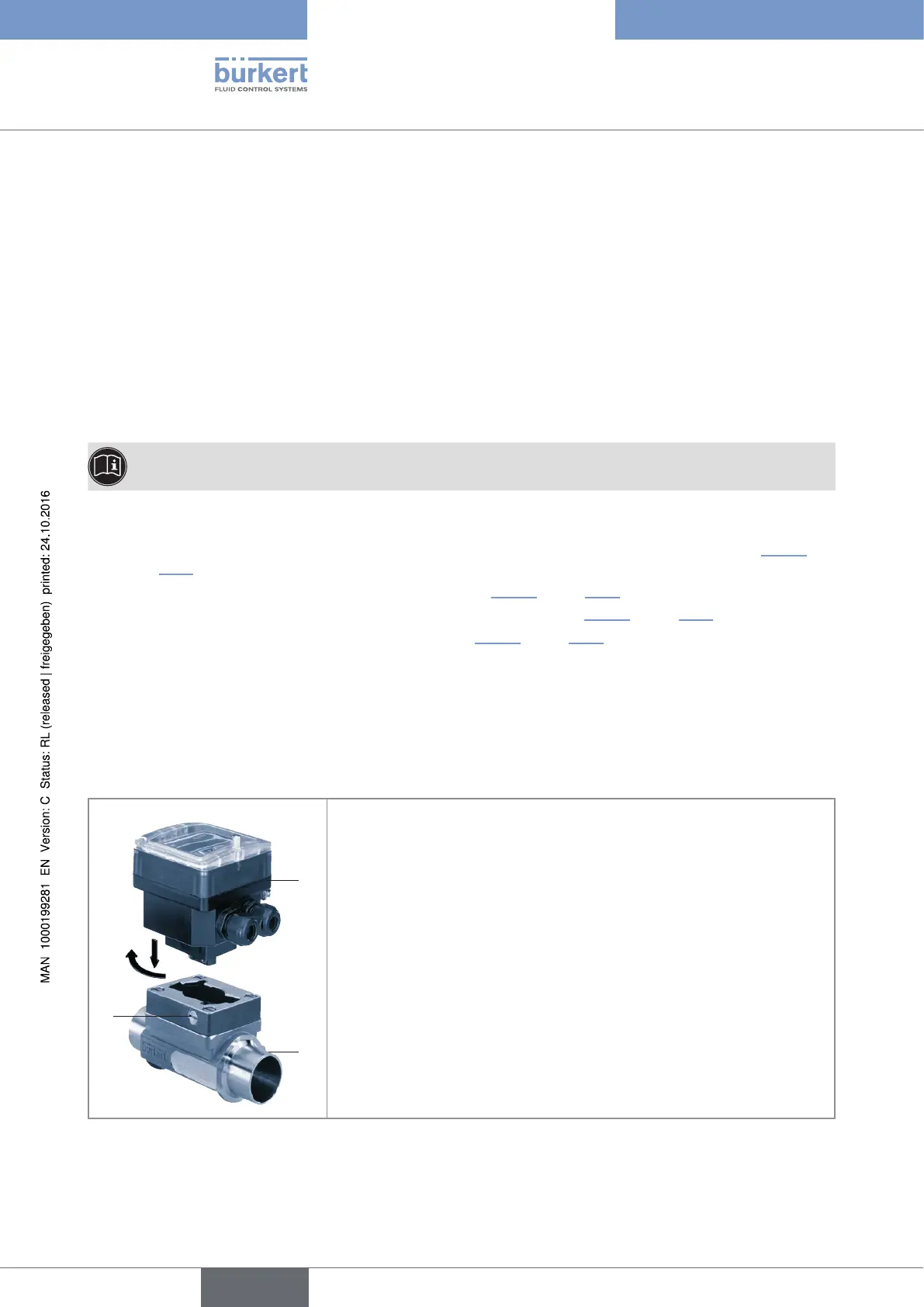

Fig. 13 : Installation of the dosing controller SE35 Batch on the sensor-fitting S030
