Operating and functions
If the message "ERROR [T]" is displayed during a dosing, see chap. 11.3.4 and 10.7.11.
Process level (the digital inputs DI1, DI2 and DI3 are deactivated).
→ To start the dosing, activate the digital input DI1 for a duration T related to the dosing
quantity.
→ To interrupt the dosing, see Fig. 51.
1156 L
The counter is incremented (the units blink).
→ To read the flow rate measured in the pipe, press
or
0......9
.
→ To read the total dosing quantity, press
or
0......9
once.
6.3206 L
When the digital input DI1 is deactivated and the quantity proportional to the activation duration
has been reached:
• the valves are closed,
• and the total dosed quantity is displayed (the dosing units do not blink any more).
100.06 L

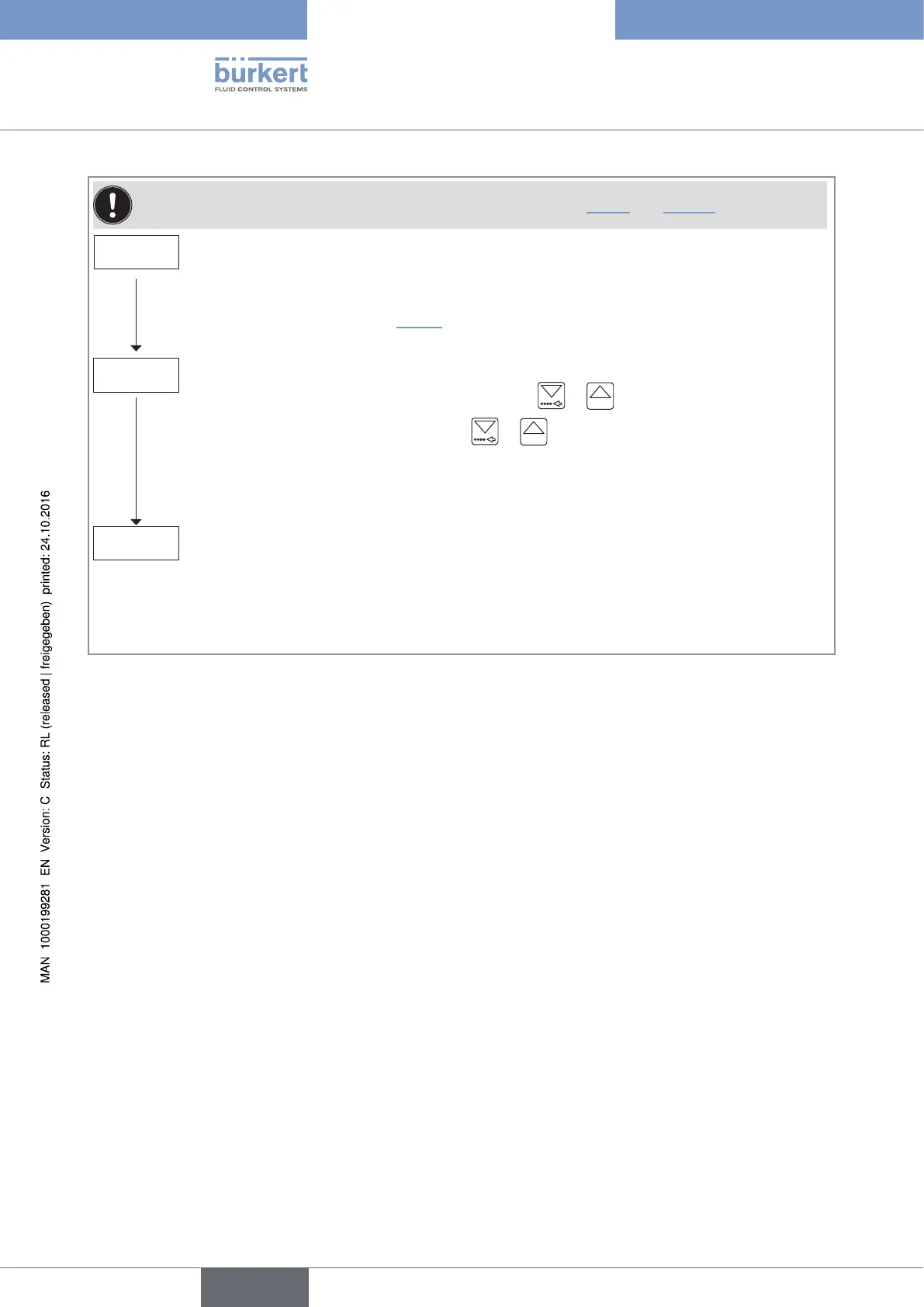

Fig. 50 : Doing a dosing, in dosing mode "EXT. [T]"
