Burkert 8045 Quick Start

15
Installation and wiring
Type 8045
- Preferably install the device at a 45° angle to the horizontal centre of
the pipe to avoid having deposits on the electrodes and false meas-
urements due to air bubbles (see Fig. 5).
45°
45°

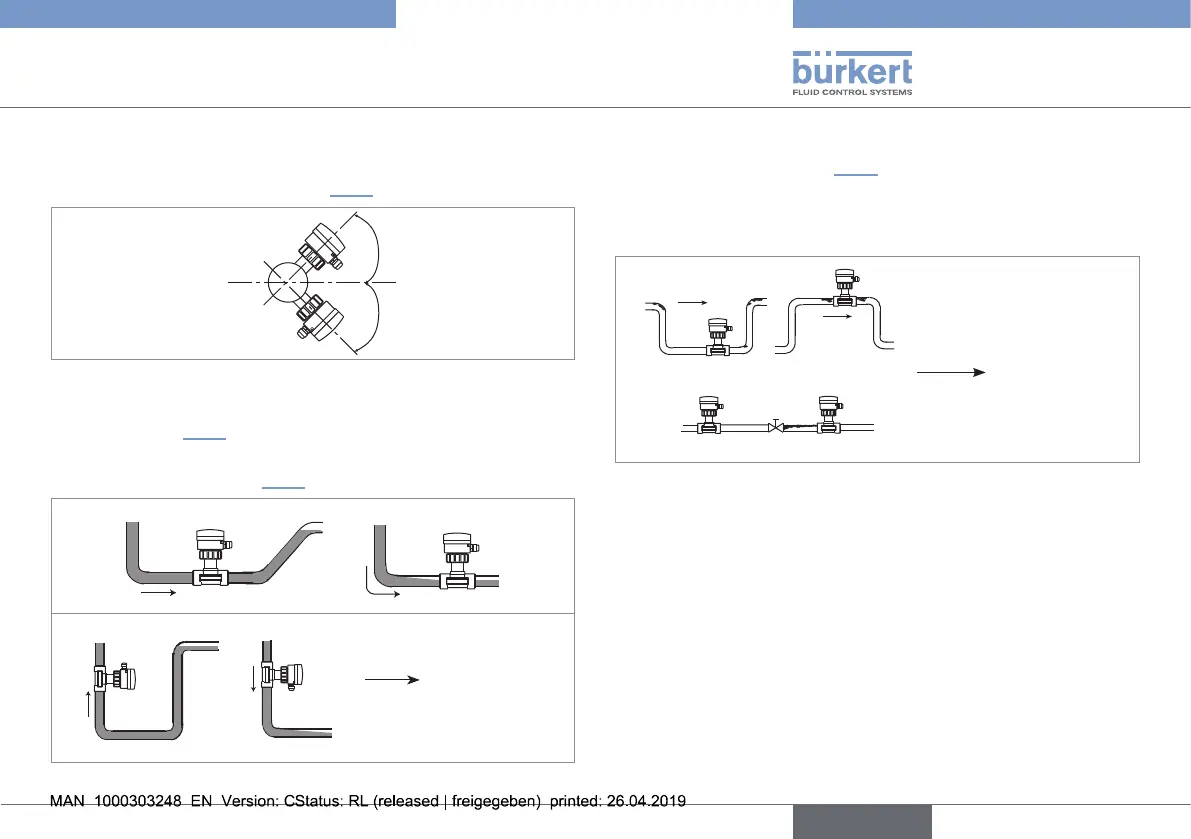

Fig. 5 : Mounting angle on the pipe
- Ensure that the pipe is always filled in the section around the
device (see Fig. 6).
- When mounting vertically ensure that the flow direction is in an
upward direction (see Fig. 6).
Horizontal mounting
Correct Incorrect
Vertical mounting
Correct Incorrect
flow direction
Fig. 6 : Filling of the pipe
- Prevent the formation of air bubbles in the pipe in the section
around the device (see Fig. 7).
- Always mount the device upstream a possible injection point
in the pipe of a high-conductivity fluid (for example: acid, base,
saline,...).
Correct
flow direction
Incorrect
Correct Incorrect
Fig. 7 : Air bubbles within the pipe
→ If necessary, use a flow conditioner to improve measurement
precision.
English

Burkert 8045 Specifications

General

Brand	Burkert
Model	8045
Category	Transmitter
Language	English
