SECTION II: UNIT-PAK BOILER ASSEMBLY
MegaSteam™ Unit-Pak Boiler Assembly Shipment
Content Check List (see Figure 3)
1. ___ Cast Iron Section/Burner Swing Door/Smoke Box Assembly Mounted on Shipping Skid:
____ MST3 (Rear Section, Heater) – Part # 100566-03 / 100045-01 / 100021-01
____ MST4 (Rear Section, Heater) – Part # 100566-04 / 100045-01 / 100021-01
____ MST5 (Rear Section, Heater) – Part # 100566-05 / 100045-02 / 100021-01
____ MST3 (Rear Section, Non-Heater) – Part # 100567-03 / 100045-01 / 100021-01
____ MST4 (Rear Section, Non-Heater) – Part # 100567-04 / 100045-01 / 100021-01
____ MST5 (Rear Section, Non-Heater) – Part # 100567-05 / 100045-02 / 100021-01
2. ___ Control Carton
____ CG450 LWCO; W/Tankless Heater - Part # 100608-01
____ PS801 LWCO; W/Tankless Heater - Part # 100622-01
____ #67 LWCO; W/Tankless Heater - Part # 100678-01
____ CG450 LWCO; L/Tankless Heater - Part # 100680-01
____ PS801 LWCO; L/Tankless Heater - Part # 100681-01
____ #67 LWCO; L/Tankless Heater - Part # 100679-01
3. ___ Jacket Carton
____ MST3 – Part # 100609-03
____ MST4 – Part # 100609-04
____ MST5 – Part # 100609-05

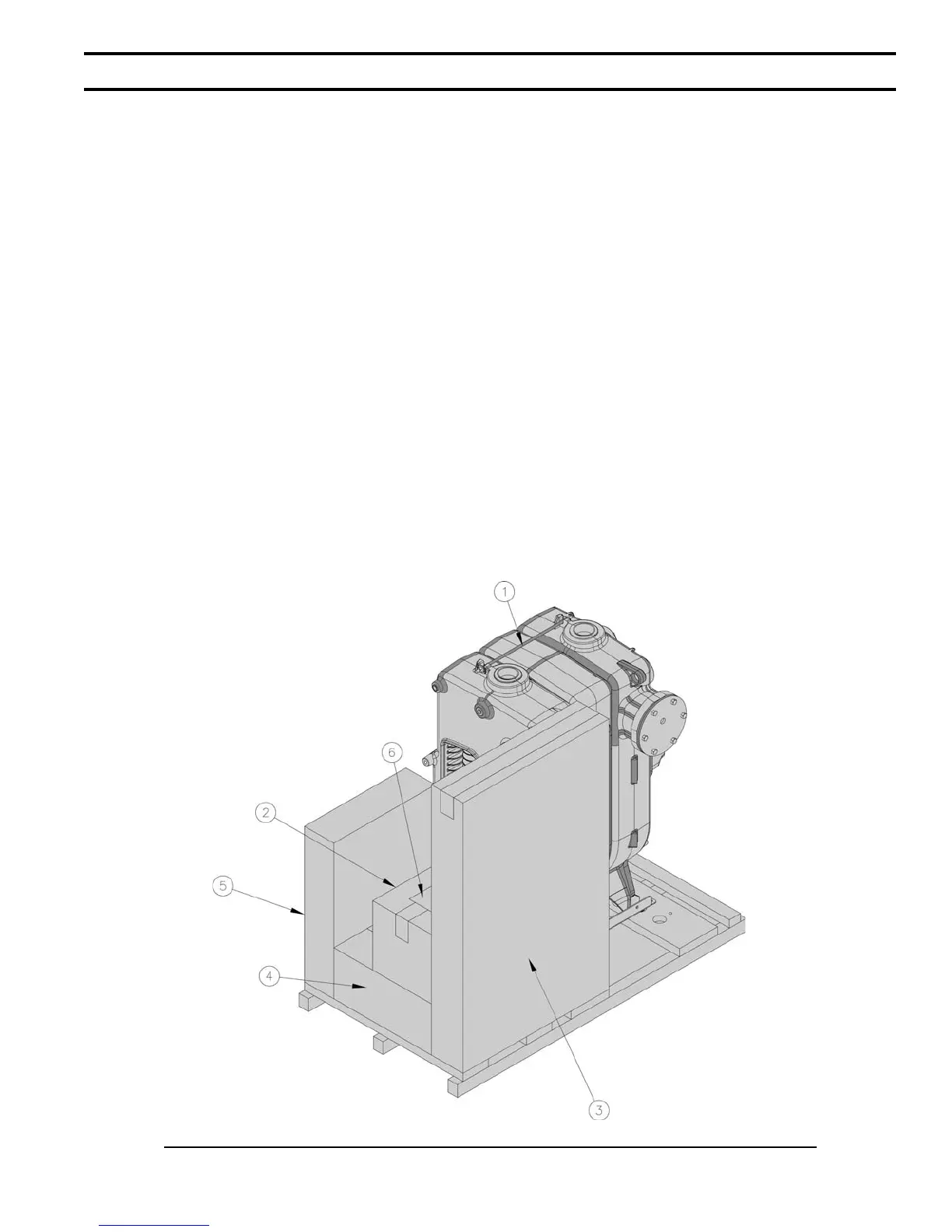

Figure 3: MegaSteam™ Unit-Pak Boiler Shipment Contents (outside container removed)
4. ___ Part Carton
____ MST3 & 4 - Part # 100615-01
____ MST5 - Part # 100629-01
5. ____ Insulation Wrapper
____ MST3 - Part #100614-03
____ MST4 - Part #100614-04
____ MST5 - Part #100614-05
6. ___ Instruction/Label Bag
____ MST (All Models) – Part # 100617-01
