Bush L319LED - Connecting an A;V Device with Ypbpr Connector

18
BUSH HD Ready LED LCD TV User Manual Helpline: 0845 604 0105
Rear of TV
CABlE/AIR

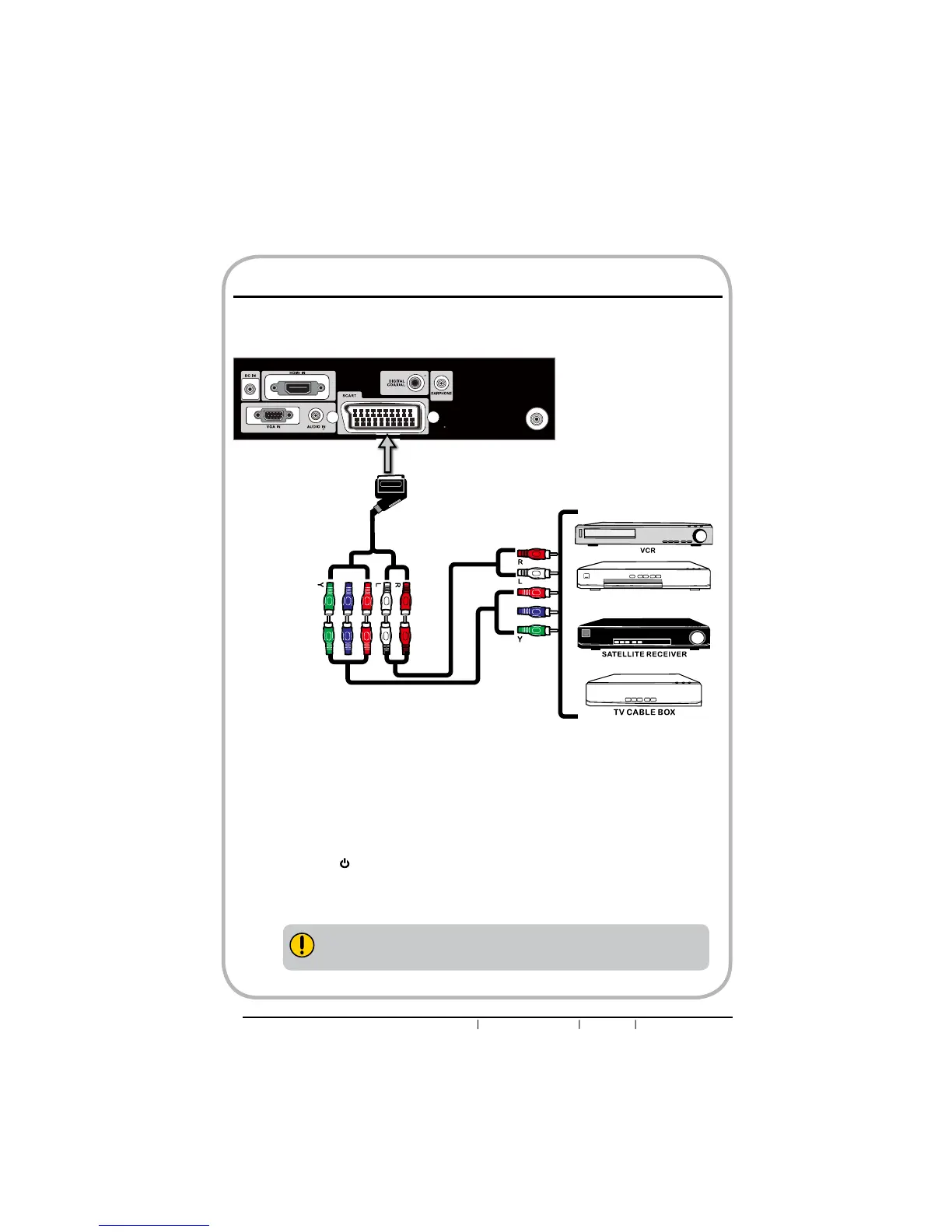

n Use a SCART-to-YPbPr adapter to connect the LED LCD TV’s SCART jack with the
YPbPr/ Audio cable and the external A/V device’s YPbPr output jacks.
o Connect all AC power sources, before turning on the power switch of the LED LCD TV
or other connected equipment.
p Press the button on the remote to turn on the LED LCD TV.
q Press the INPUT button on the remote to select SCART (YPbPr).
Connecting an A/V Device with YPbPr Connector
YPbPr Cable
DVD PLAYER
The component video jacks on your A/V device are sometimes labeled
YPbPr, or YCbCr. For an explanation of component video, see your A/V
device’s user guide.
Pr
Pb
Pr
Pb
SCART-to-YPbPr adapter
(Included)
Y Pb Pr L R
AUDIO Cable
