Butler LIBRAK350 - General Description

INSTRUCTION, USE AND
MAINTENANCE MANUAL
EN
Page 5 of 61
GENERAL DESCRIPTION

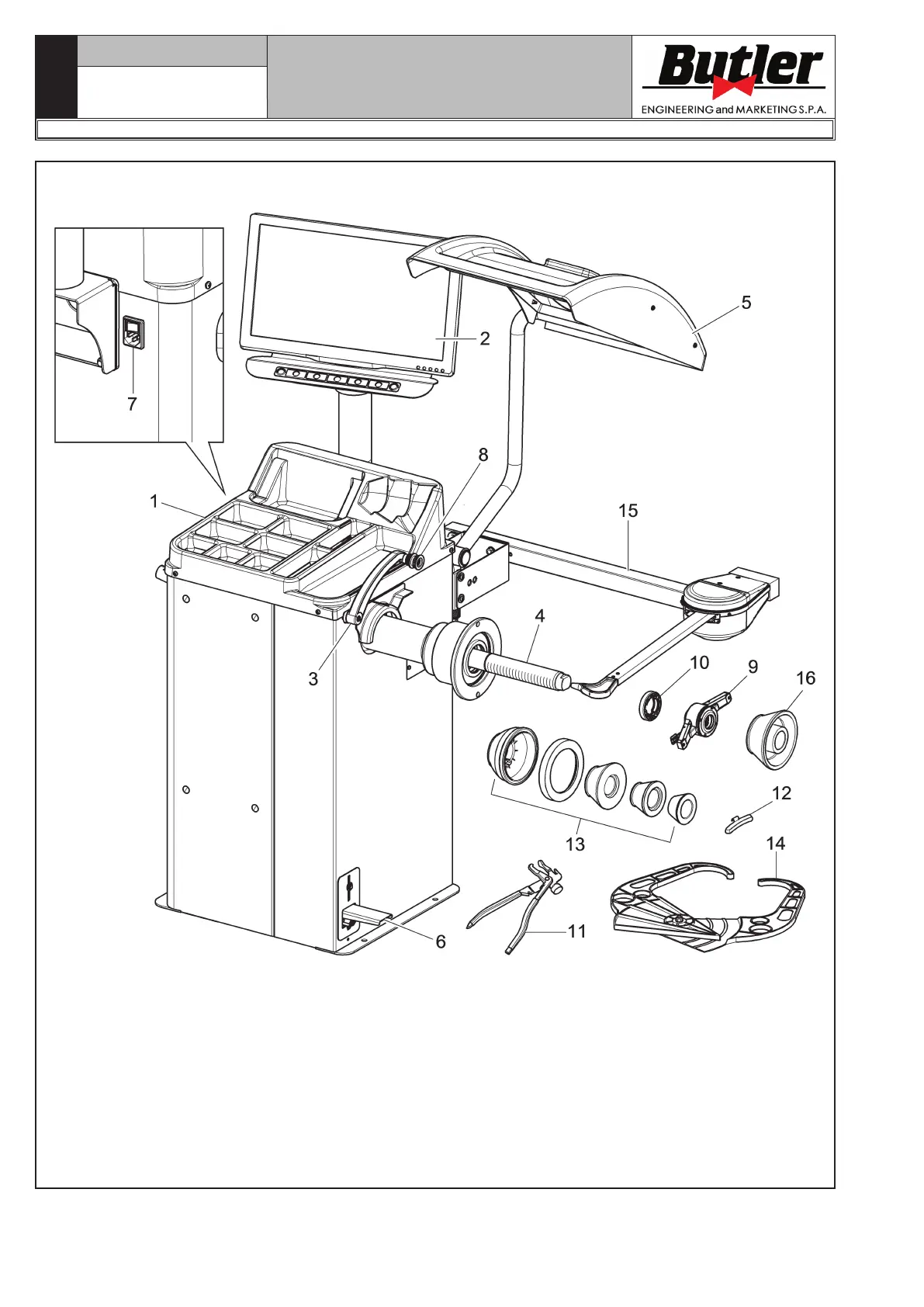

Fig. 1
KEY
1 – Weight holding bridge
2 – Monitor
3 – Distance-diameter caliper
4 – Threaded chuck
5 – Protection guard
6 – Pedal brake
7 – Main switch
8 – Grippers for weight fitting
9 – Rapid ring nut
10 – Pressure ring
11 – Grippers for weights
12 – Carriages counterweight
13 – Cones + protection cup
14 – Manual caliper
15 – External data gauge
(standard on some models)
16 – Off-road vehicle cone D.88 -132
(standard on some models)
LIBRAK350 - LIBRAK350PRO
1296-M024-01
