Maintenance

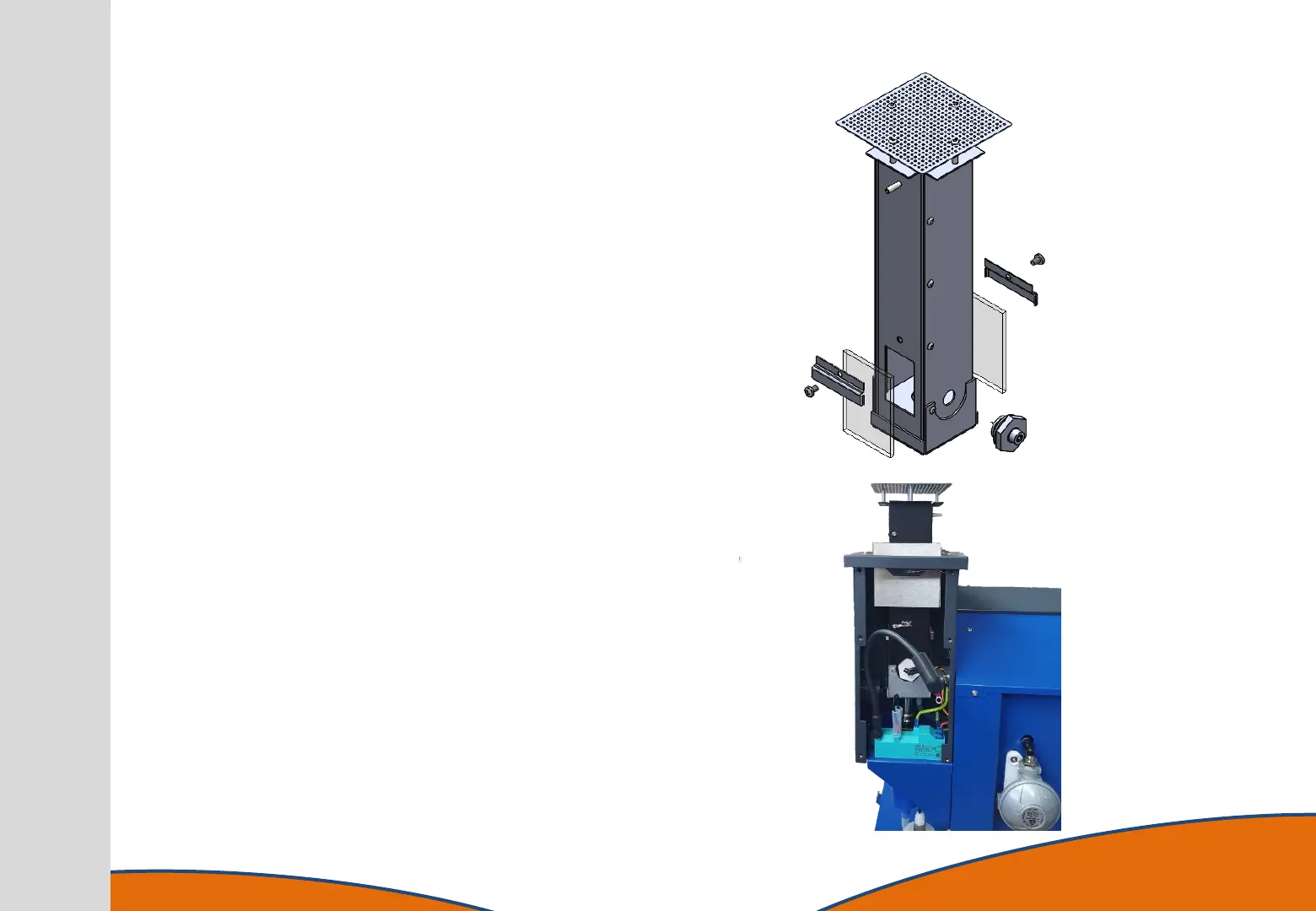

7. Remove the Inner Chimney Windows from the Inner Chimney by
removing the screws from the window retainers.
8. Clean the glass windows and chimney pieces using a non-abrasive
cleaner or mild detergent solution, taking care not to scratch any
of the surfaces.
9. Reach into the Outer Chimney and clean the optic window very
gently using a very soft cloth or cotton swab
10. If required, the Outer Chimney/Heat Shield Assembly can also be
removed for cleaning by removing the 4 screws on the top of the
chimney housing using a T10 Torx driver.
11. Re-assemble in reverse order, taking care not to damage or place
finger grease on the windows.
12. Replace the Inner Chimney into the Outer Chimney. Reconnect
the air tubing, the wire to the Ignition Electrode and replace the
Rubber Boot.
13. Reconnect the chimney fan connection and ensure the cable is
tucked between the ignition module and the space below the
socket (this is critical).
14. Refit the Chimney Back Piece and all six retaining screws.
15. Refit the chimney top ‘guard’.
