BWT COVERDECK - 8. Control Panel Components and Assembly; Control Panel Component List; Control Panel Assembly Procedure

Name Description Number
Toroidal transformer 24V 300VA 1
Power supply 24V 15W 1
Diode bridge 1
Condenser 35V 22000µF 1
SCHAFFNER filter FN2020-1-06 2
Switch Rocker switch with pilot 1
F1 Fuse 4A 1
Thermal circuit breaker 10A 1
Crouzet PLC M3 88 970 042 1
Condenser X2 470nF 1
KA2 Hy21PN24DC relay 1
KA1 Hy21PN24DC relay 1
The wire used for the protective conductor in the control panel has a cross section of 2.5mm².
Power wire 30Vdc : 2.5mm².
Other 24 Vdc wires : 1mm².
230 Vac wire : 1mm² red and blue.
Connection to the lter and switch: insulated Faston lugs.

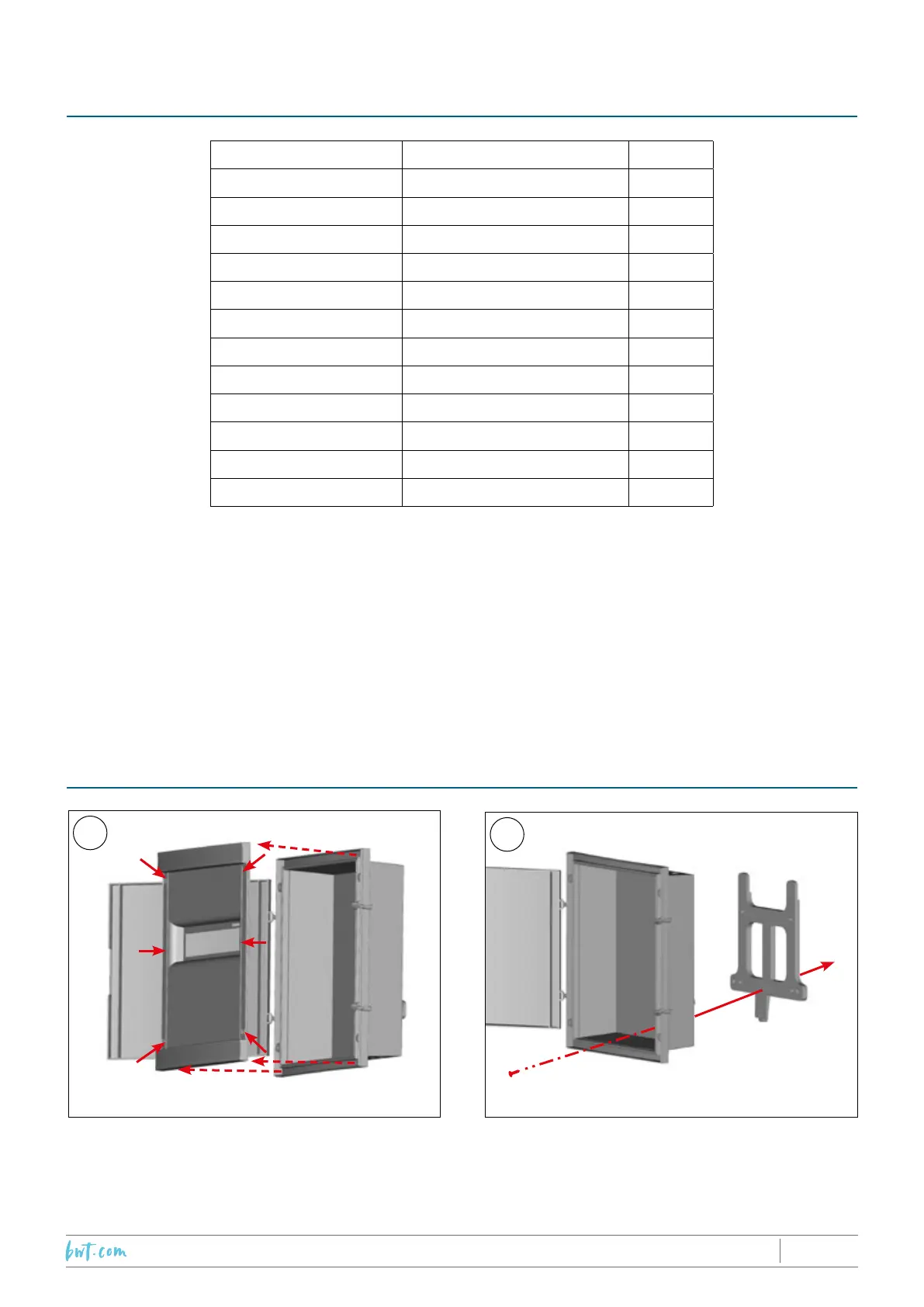

Unblock the 6 plastic screws and remove the front
panel.
8. LIST OF CONTROL PANEL COMPONENTS (NOT INCLUDING
TERMINALS)
9. ASSEMBLY OF THE CONTROL PANEL
Remove the screw holding the mounting bracket.
1
2
2019/01 - Indice de révision : N - Code : 34201PROTECTION & SÉCURITÉ
43/60
