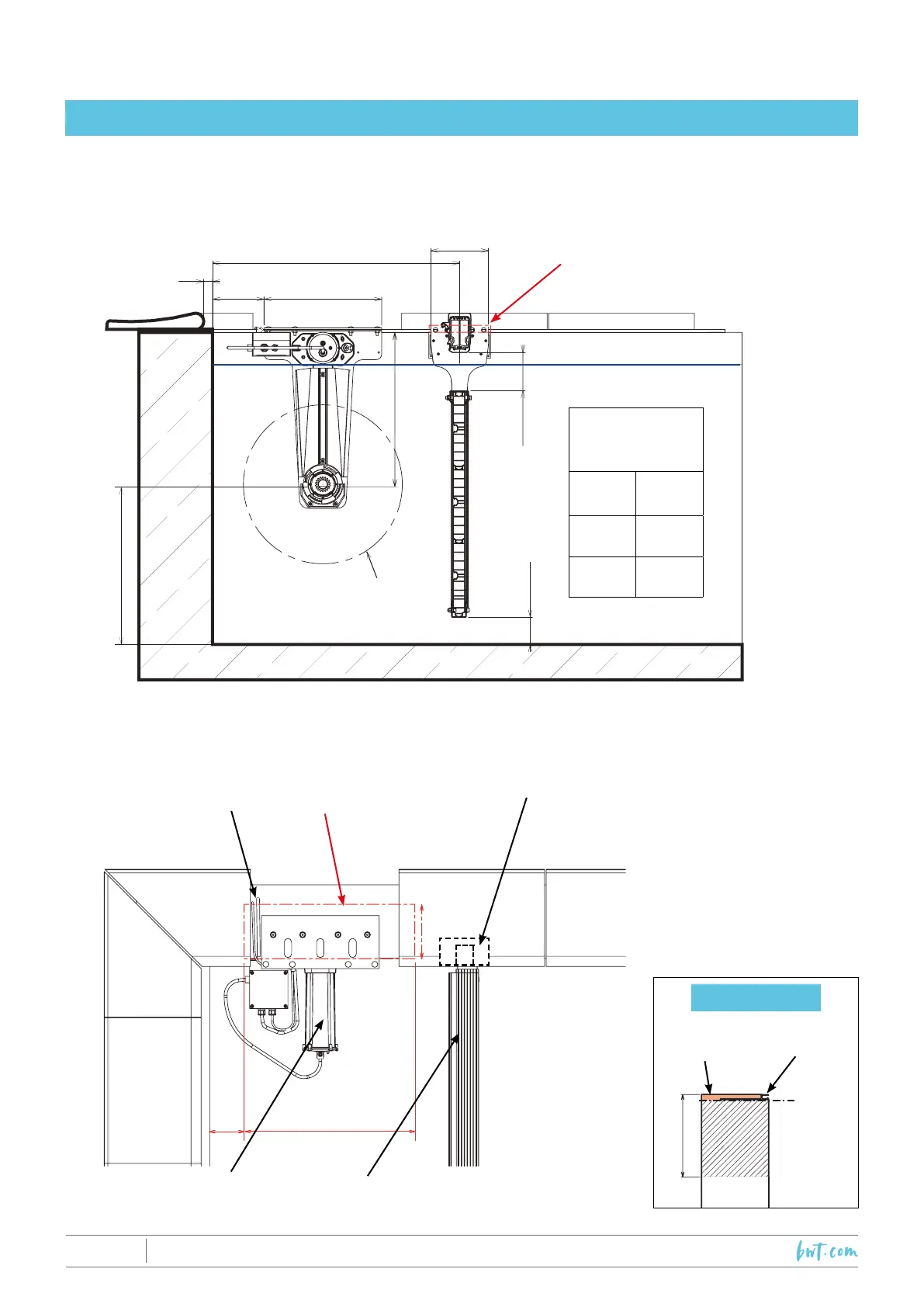

BWT COVERDECK - 16.4 Pit Wall and Stardeck Cement-Bedded Units; Dimensions for Pit Wall & Stardeck Unit Installations

Ø 54 max.
3
84
40
18
19,6
15 max
10 max
12
50
20
35 mini.
52.6
Water level with
respect to the top
of the pool
Coping
M30
135 mm
Coping
M40
125 mm
Coping
M55
110 mm
200
3,5
49
3,5
Cornière
Fixation des chevilles à 25mm
par rapport à l'arase du bassin
20 cm béton mini
16.4 With pit walls and stardeck cement bedded units
Cut a 10 mm recess beneath the coping to
house the flange
Recess to pass
cables
Stardeck beam
housing
Concrete reserve
zone height
20 cm
Coverdeck motor
Stardeck beam
83 cm Duckboarding
Sharp angle (90°) conguration
Water level
HungResurfacing
Pool
level
Detail, top of the wall
**PLEASE NOTE THAT DIMENSIONS ARE QUOTED IN CM**
VERY IMPORTANT
20 cm concrete min
