BWT Perla Silk M - Page 15

15
EN

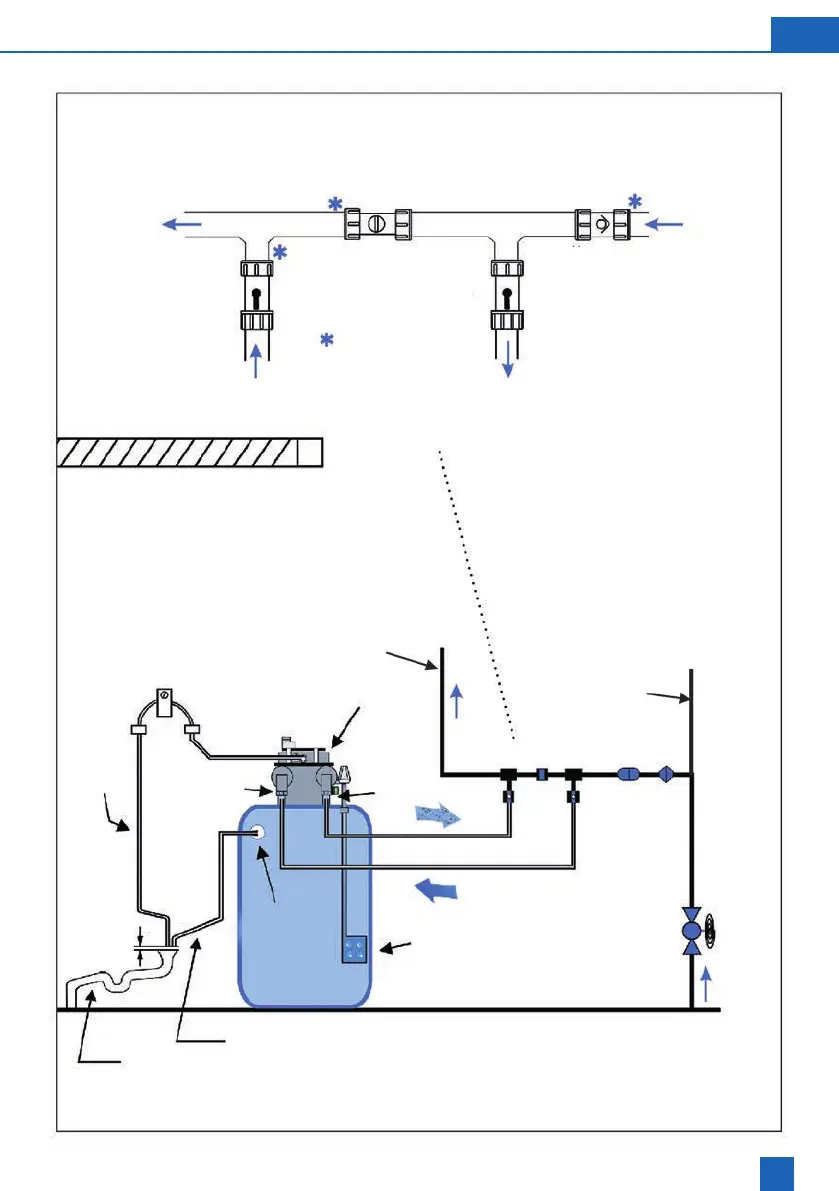

Standard Installation using individual Inlet, Outlet and Bypass Valves
Supply
Outlet
Mains
Supply
Softener
Outlet
Rising
Main
H. Fixing clip
I. Waste water
hose
C. Inlet E. Outlet
G.
Brine
storage
O.
Overow *
Water softener
K. Overow exible hose
J. Drainage (* Existing or new “Trapped” stand pipe to external
drainage)
F. Mains
stop valve
Valve
Head
Separate Drinking
Water Supply
Softener
Inlet
D
E
C
C
E
D B A
Outlet valve
shown open
Inlet valve
shown open
By-pass valve
shown closed
Use reducing bush
for 15mm pipework
Non-return
valve
Key to the diagram:
A. Non return valve
B. Pressure reducing valve (where required)
C. Inlet valve¾“
D. Bypass valve
E. Outlet valve¾“
G. Brine storage cabinet
Key to the diagram:
H. Fixing clip
I. Waste waterhose
J. Drainage
K. Flexible hose,Overow
O. Overow connection ½”
NOTE: This is an example installation diagram and does not dene scope of supply
