INTRODUCTION OF THE ENTIRE FORKLIFT
USER MANUAL
20
EPS14Pi
21
If you want to raise the lift height of the material, you s
hould decrease its weight.
EPS14Pi
Q (kg)
H (mm) C=600 (mm)
2800
3300
3800
4300
4800
550 750 1000 1200 1400
Notes
(1) The configuration of the forklift varies with the customer's order. Please check the load
diagram before using the forklift and confirm its carrying capacity.
(2) The parameters on the load diagram correspond to compact and uniform cargo. The
parameters cannot exceed the load limit. Otherwise, it will affect the stability of the
forklift and the intensity of the associated parts.
OTHE
R S
IGNS
P
lease pay attention to checking notes or warning signs posted around the track.
OPERATION
This chapter will describe how to operate BYD electric forklifts.

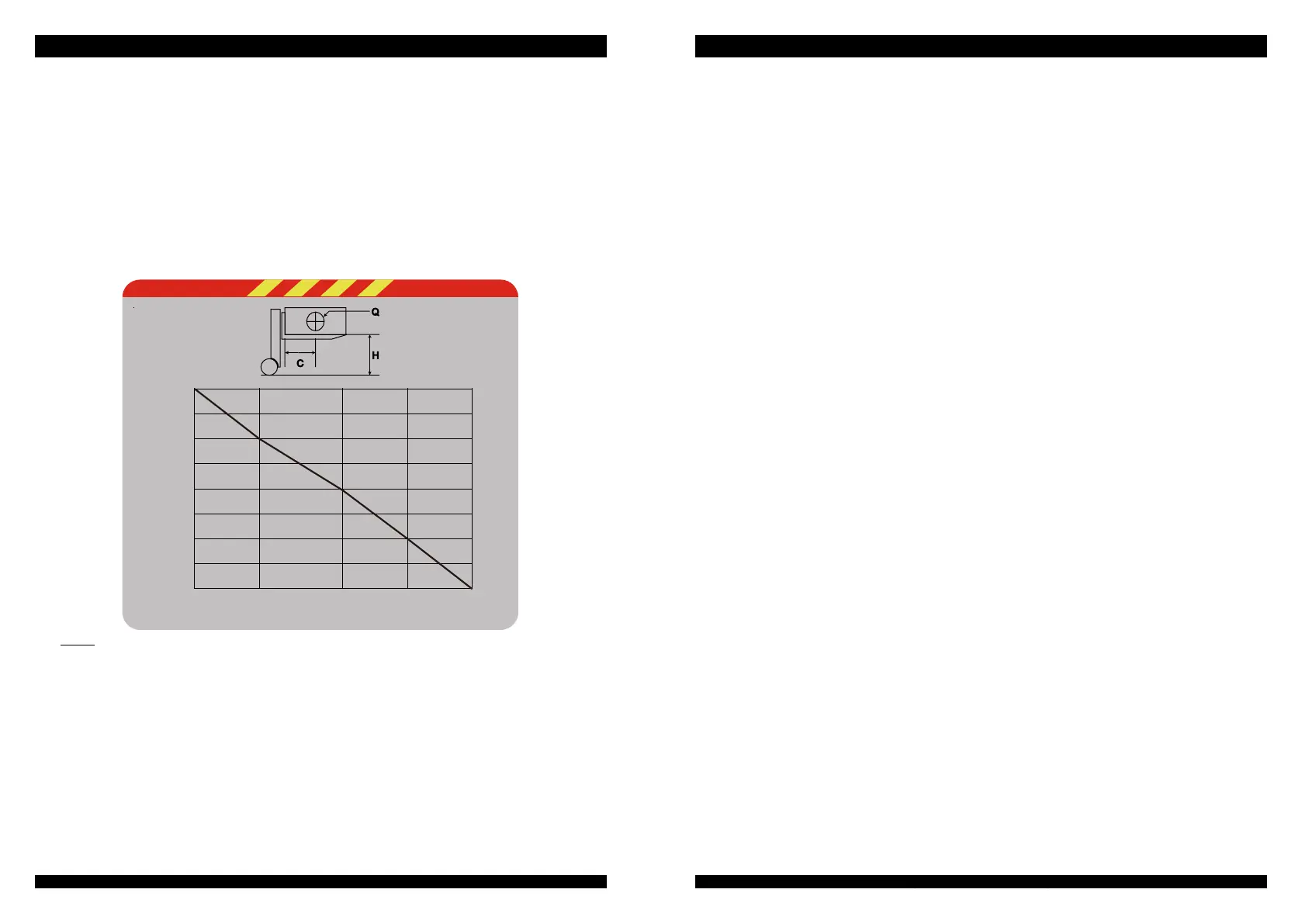

LOAD DIAGRAM
When the forklift increases its lift height , its load capacity decreases instead. According to
the load diagram, the lift height corresponds to the rated lift capacity. It is supposed that the
lift height of a material is 4300 mm and then we can get the follows:
(1) A horizontal
line drawn at the lift height of 4300mm will intersect the load diagram at
one point.
(2) A vertical line is made at the point and intersects with the x-axis at the another point. It
is known that the rated lift weight at this height is 750 kg.
OM-EPS14Pi2019001-
E
N
