BYD EPS14Pi - Replace Drive Wheels; Check Level of Gear Oil and Add Gear Oil

MAINTENANCE OF VEHICLES
USER MANUAL
50
EPS14Pi
51

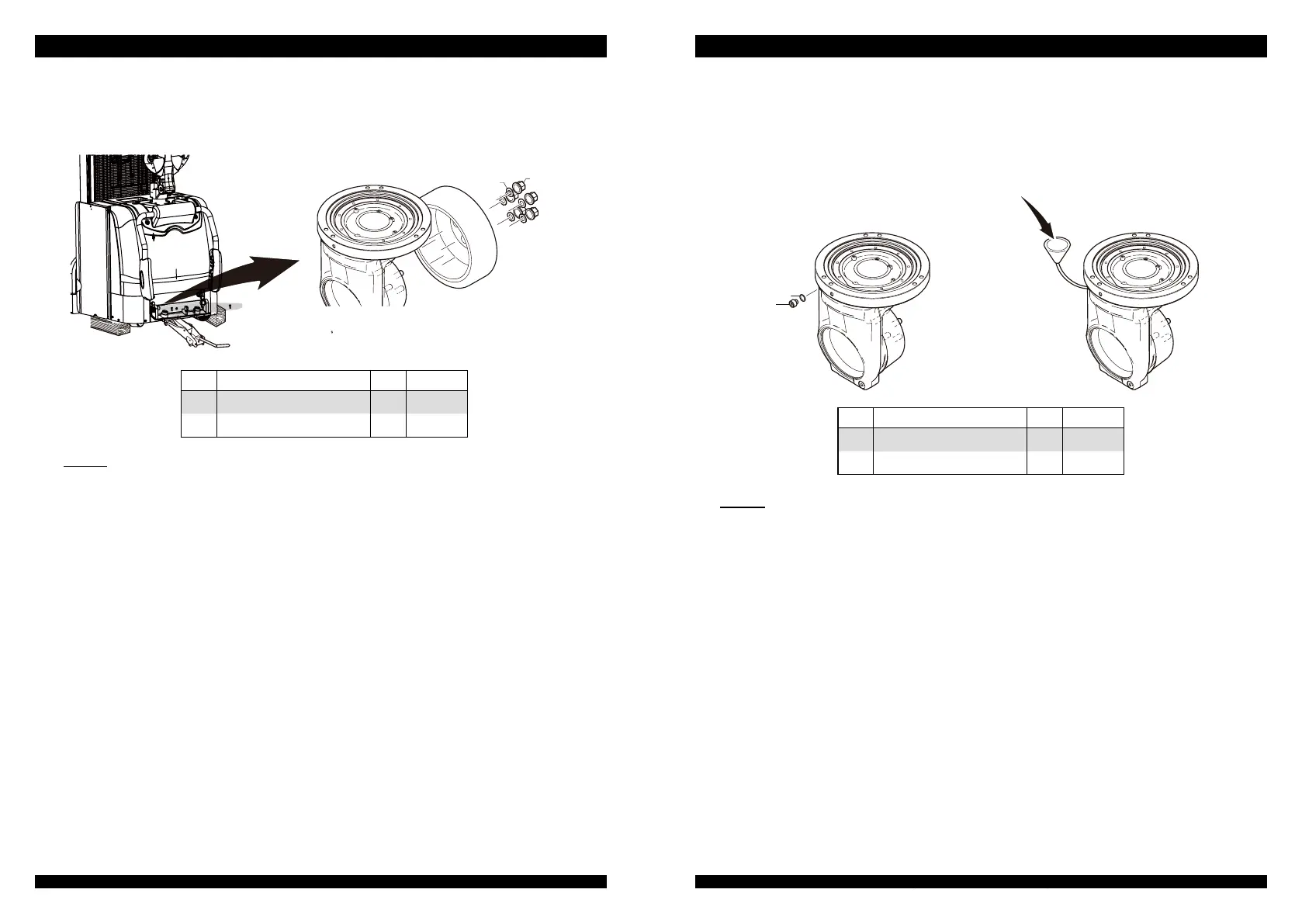

REPLACE DRIVE WHEELS
Jack up the rear of the forklift and pad with solid wood. Unscrew the nut and replace the drive
wheel.
11
HEXAGON FLANGE NUT
5 90N-m
12
SPHERICAL SPRING WASHER
5
Caution
After wheels are replaced, the balance of the entire forklift shall be checked and adjusted.
CHECK LEVEL OF GEAR OIL AND ADD GEAR OIL
(1) Clean the surrounding area of the oil fill plug and unscrew it.
(2) Check the level of gear oil. Determine whether the oil level is just below the lower edge
of the nozzle. If not enough, add gear oil.
(3) After check, Install the oil fill plug and its seals and tighten it.
11
12
11
OIL FILL PLUG
1 30 N-m
12
SEAL RING
1
(1) Pay attention to your surroundings when refueling and keep dust and moisture out of
the tank.
(2) The oil level should be just below the nozzle.
12
11
