BYD EPS14Pi - Replace Gear Oil; Maintain Mast; Adjust Chain

MAINTENANCE OF VEHICLES
USER MANUAL
52
EPS14Pi
53

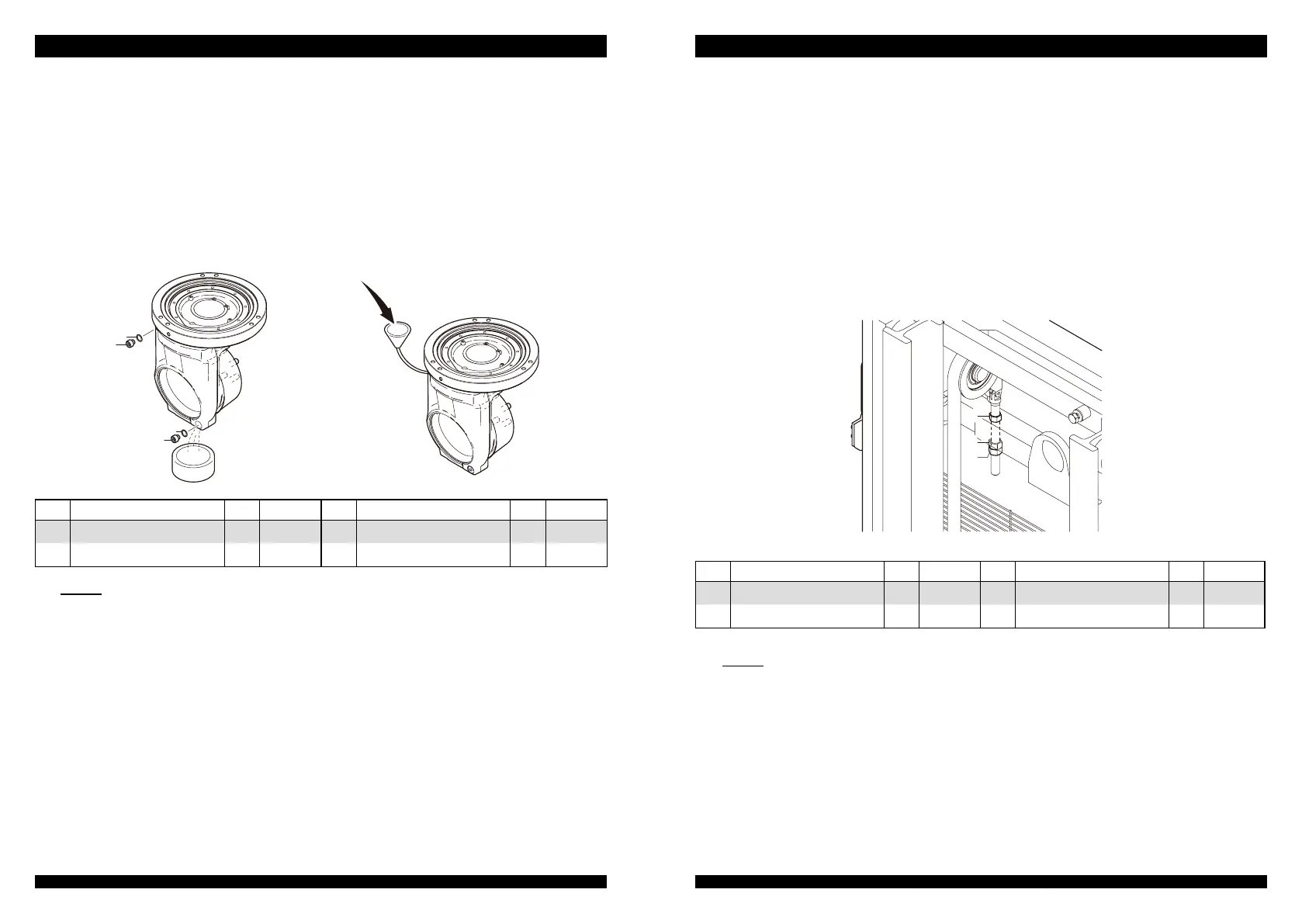

REPLACE GEAR OIL
(1) Clean the oil fill plug and the surrounding area of the oil drain plug. Place an appropriate
container under the oil drain plug.
(2) Unscrew the the oil fill plug and the oil drain plug.
(3) After oil drains, install the oil drain plug and its new seal, and then tighten it.
(4) Add gear oil till the lower edge of the nozzle. Install the oil fill plug and its seals and
tighten it.
11
12
13
12
11
OIL FILL PLUG
1 30 N-m 13
OIL DRAIN PLUG
1 30 N-m
12
SEAL RING
2
(1) The time for draining cannot exceed 5 minutes.
(2) Pay attention to your surroundings when refueling and keep dust and moisture out of the
tank.
(3) Waste oil must be disposed of away from people and can't be dumped in waterways or
on the ground.
(4) The oil level should be at the lower edge of the nozzle.
MAINTAIN MAST
ADJUST CHAIN
The main lifting chain should be adjusted in the standard mast while free lift chain is for
free mast. Stop on the flat ground and lower down the fork fully.
Close the vehicle, unplug the key and press the emergency stop button. Then adjust chain.
1. ADJUST CHAIN OF STD MAST
Unscrew upper and lower nuts
on the main lift chain. Adjust chain length by adjusting
themiddle nut. After adjustment, the fork should be kept level, and the left and right chains should
bear same tightness. Then tighten the nut.
12
13
11
After adjusting the chain, the chain should not be slack
when the lift cylinder is in the initial position.
12
13
11
11
NUT (UPPER)
1 110 N-m 13
NUT(LOWER)
1 110N-m
12
NUT (MIDDLE)
1 110 N-m
CODE PART NAME QTY
OTHER
INFORMATION
OTHER
INFORMATION
CODE PART NAME QTY
CODE PART NAME QTY CODE PART NAME QTY
OTHER
INFORMATION
OTHER
INFORMATION
Caution
Caution
OM-EPS14Pi2019001- E N
