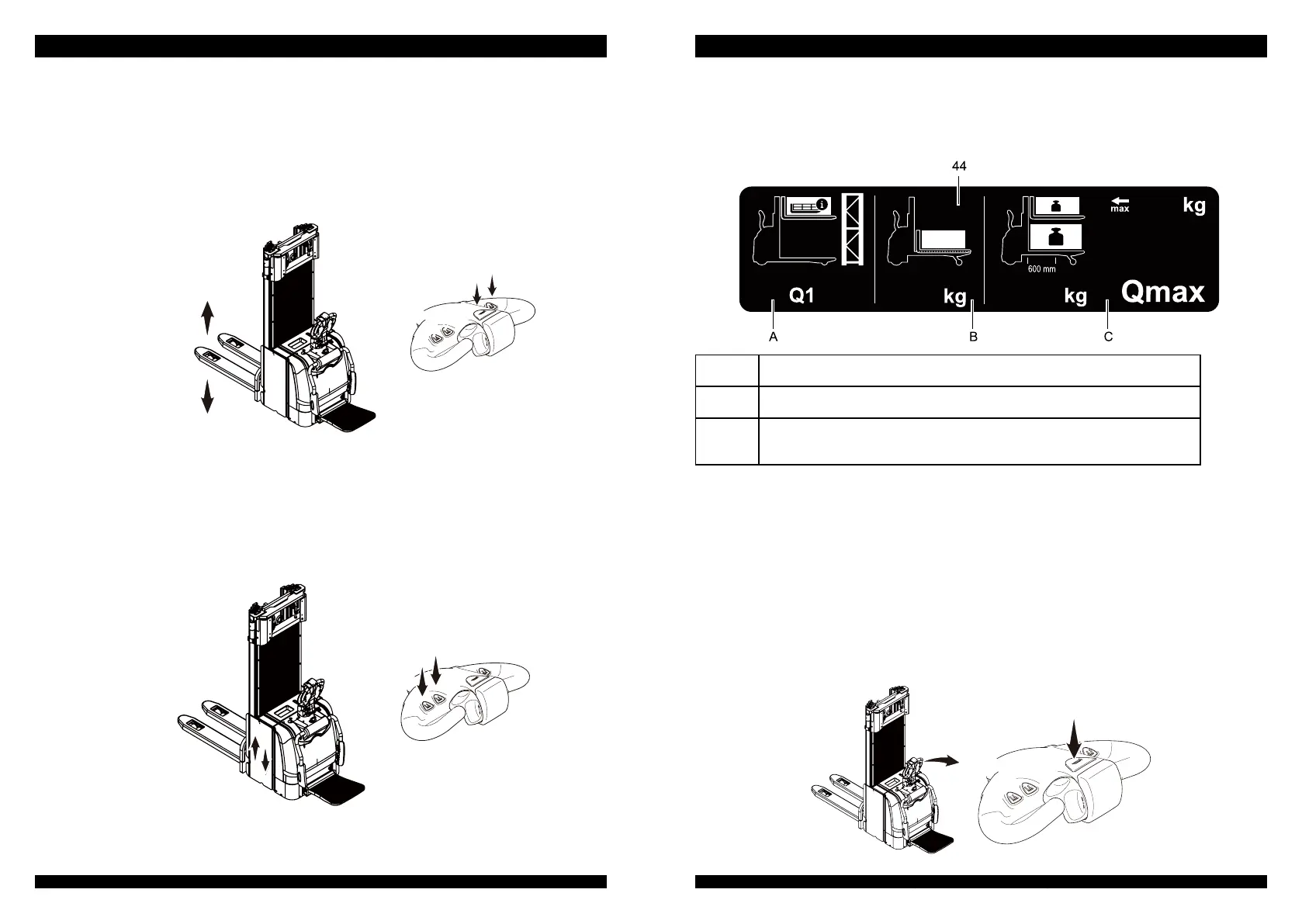

LOWER AND LIFT THE PALLET FORK
Press the button for lifting fork, and then the fork will rise. Instead, the fork will be lowered down.
When the fork rises to the top and triggers the switch, it will not continue lifting. When the lift
height of the mast exceeds h1 (300mm, adjustable) , the speed limit switch will be triggered,
the fork cannot be lifted during driving and the running speed will be less than V (set as 3km/h,
adjustable).
When the height of the mast is between 0 and h1, the fork can be lifted during driving.
LIFT AND LOWER DOWN THE REAR FORKLIFT BODY
Press the button for lifting rear forklift body, and then the fork will be lifted.
P
ress the button for lowering down rear forklift body, and then the fork will be lowered down.
If any two operations (mast is lowered down and lifted or the rear forklift body is lowered
down and lifted) are operated at the same time, report the fault and forbidding using the oil
pump function.
PERFORM SYNCHRONOUS OPERATION OF STACKING AND
TRANSPORTING
According to the synchronous operation schematic diagram of stacking and transportation,
the rated load Q (Unit: Kg) of the forklift is defined.
A=
Stacking (Unload or fork cargo): When lifting (forward leg) , pay attention to
the rated load depending on the lifting height.
B=
Transportation: When the forward leg is lifted (the mast is lifted ), the
maximum rated load value for level service is 1400Kg.
C=
Synchronous operation: Total maximum rated load under high lift operation (the
mast is lifted) is ZZZKg. The maximum rated load when lifting (mast is lifted) and
lowering (the forward leg is lifted) is 1400Kg in all.
Press the button to make the horn honk.
ZZZ


When performing stacking operation, low lift (forward leg is lifted) can be performed to lift the
cargo at a lifting height of 2800mm for storage. To achieve a lifting height of 2800mm, low lift
(forward leg is lifted) must be lowered down.
Don't transport cargo when another cargo (>500mm) carried is lifted. Synchronous operation
is excluded.
Under the synchronous operation, the maximum lift height is 2800mm.
