BYD EPS14Pi - Instrument (Type A)

USER MANUAL
28
29

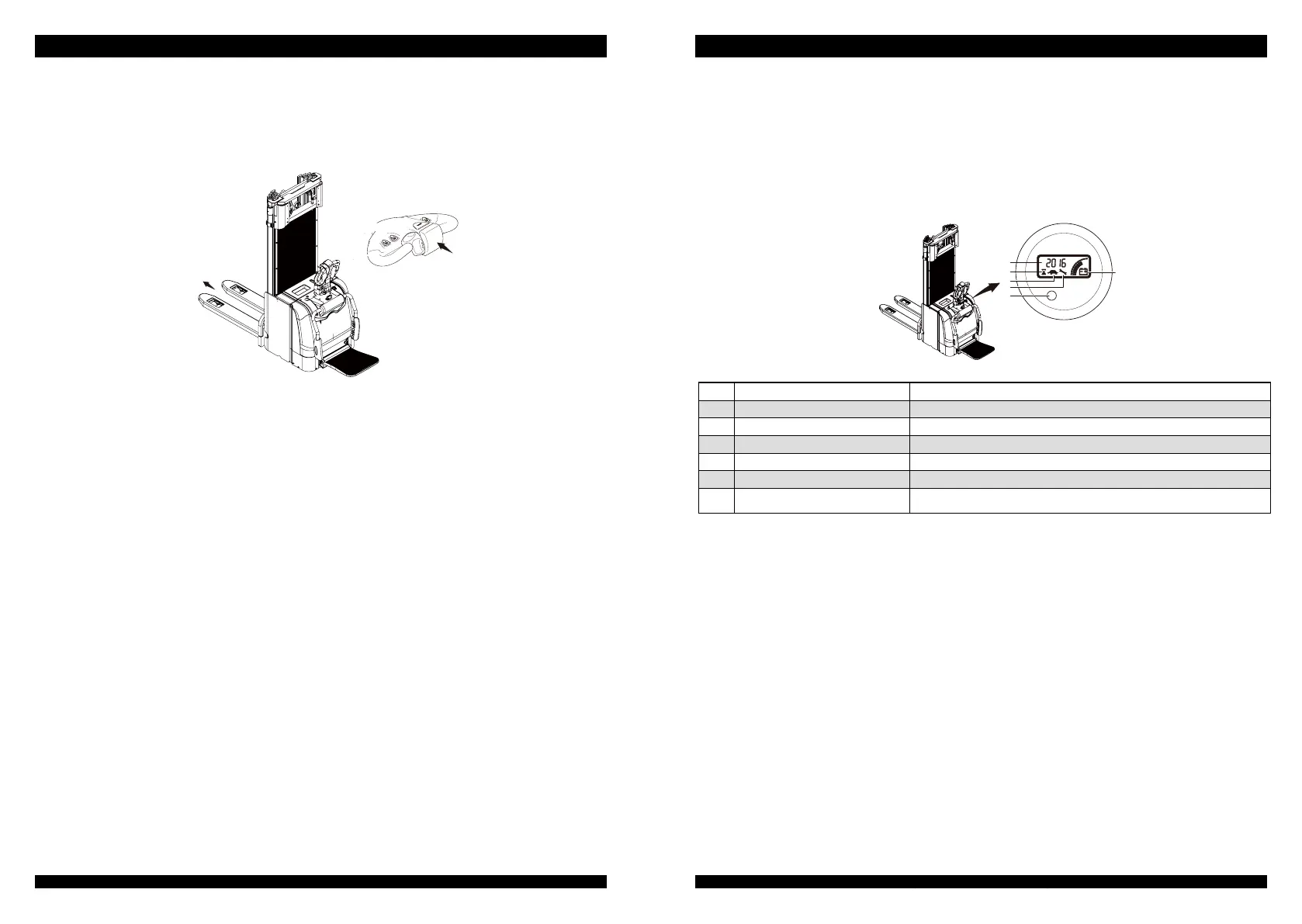

ANTI-COLLISION SWITCH
The forklift will move a short distance automatically once the anti-collision switch is
bumped. It will not stop until the anti-collision switch is not bumped.
OPERATING INSTRUMENT
INSTRUMENT (TYPE A)
NO. NAME DESCRIPTION
1
ALARM INDICATOR LAMP
THE ALARM LAMP WILL LIGHT WHEN THE BATTERY POWER IS LOW OR THE
FORKLIFT IS FAULTY.
2
MAINTENANCE ICON
THE ICON WILL APPEAR WHEN THE FORKLIFT IS FAULTY.
3
LOW-SPEED ICON
THE ICON WILL APPEAR WHEN THE LOW-SPEED BUTTON IS PRESSED.
4
TIMER ICON
THE ICON WILL APPEAR WHEN THE FORKLIFT STARTS NORMALLY.
5
INFORMATION ON TIME AND FAULT
CODE
WHEN THE FORKLIFT STARTS NORMALLY, THE TIME WORKED WILL BE
INDICATED.
IF A FAULT APPEARS AFTER THE FORKLIFT STARTS, THE FAULT CODE WILL BE INDICATED.
6
BATTERY STATE
THE BATTERY LEV
EL IS DISPLAYED AS 10 BARS, AND EACH BAR REPRESENTS 10% OF
THE
BATTERY
L
EVEL. THE NUMBER O
F BARS DISPLAYED B
Y THE BATTERY LEVEL
VARIES WITH THE ACTUAL BATTERY LEVEL OF THE FORKLIFT.
4
1
2
3
5
6
OPERATION
E
PS14Pi
There are a display screen and an indicator on the instrument. The display screen shows
information such as power, service tips, low speed tips, service time and fault code. The indicator
is used to show inefficient power and maintenance.
