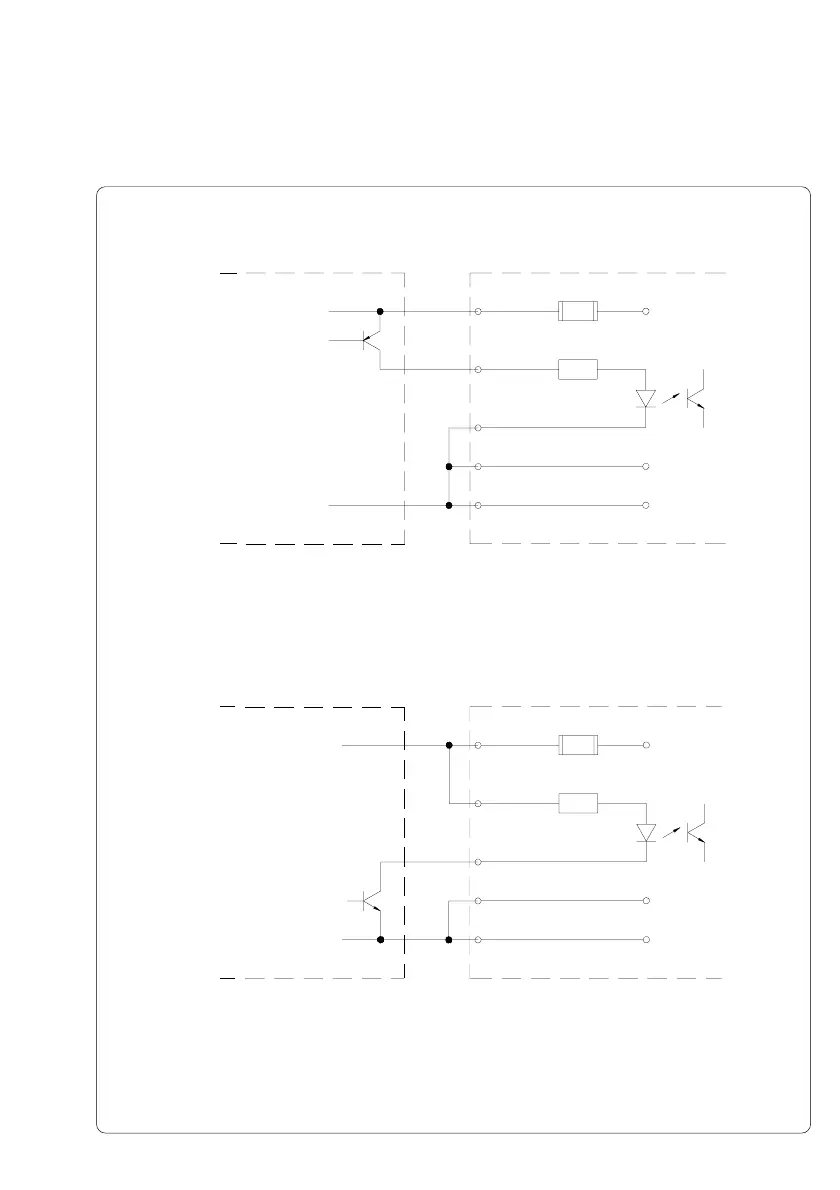

Fig. A-6 Example for an optical sensor with npn-output
Present sensor electronics
8
13
GND
STA
15
24P
1 XSTART
9 RXSTART
brown
white /
black*
blue
Sensor with npn-output
* dependent on the used sensor
Appendix A - Operation in Peel-off Mode
Fig. A-5 Example for an optical sensor with pnp-output
Present sensor electronics
8
13
GND
STA
15
24P
1 XSTART
9 RXSTART
brown
white/
black*
blue
* dependent on the used sensor
Sensor with pnp-output

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
