CAB A4 User Manual

A-10 cab Produkttechnik GmbH & Co KG

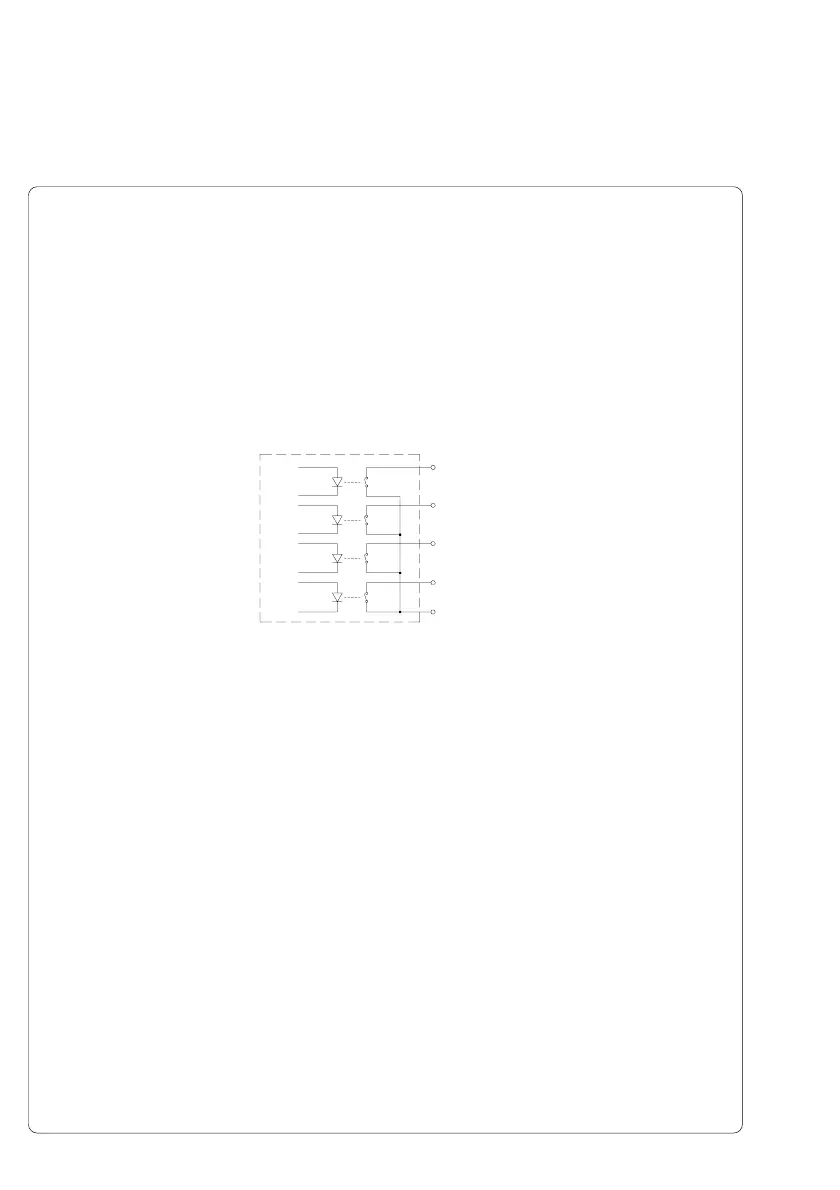

Fig. A-7 Internal Circuits of the Outputs
Circuit Diagram of Outputs
All outputs are recognized through solid state relays Their outputs are
connected to one another on one-side. The joint line is lead to the plug
connector as a RÜL signal.
The switch function of the outputs is to open or close the contact between the
joint line RÜL and the respective output.
Electrical requirements : U
max
= 42V
I
max
= 100mA
PIN4 - XESP
PIN5 - XEDG
PIN6 - XDNB
PIN7 - XEDST
PIN14 - RÜL
Appendix A - Operation in Peel-off Mode

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
