48 cab Produkttechnik GmbH & Co KG
25 17 13 1822 23 24
21
20
19

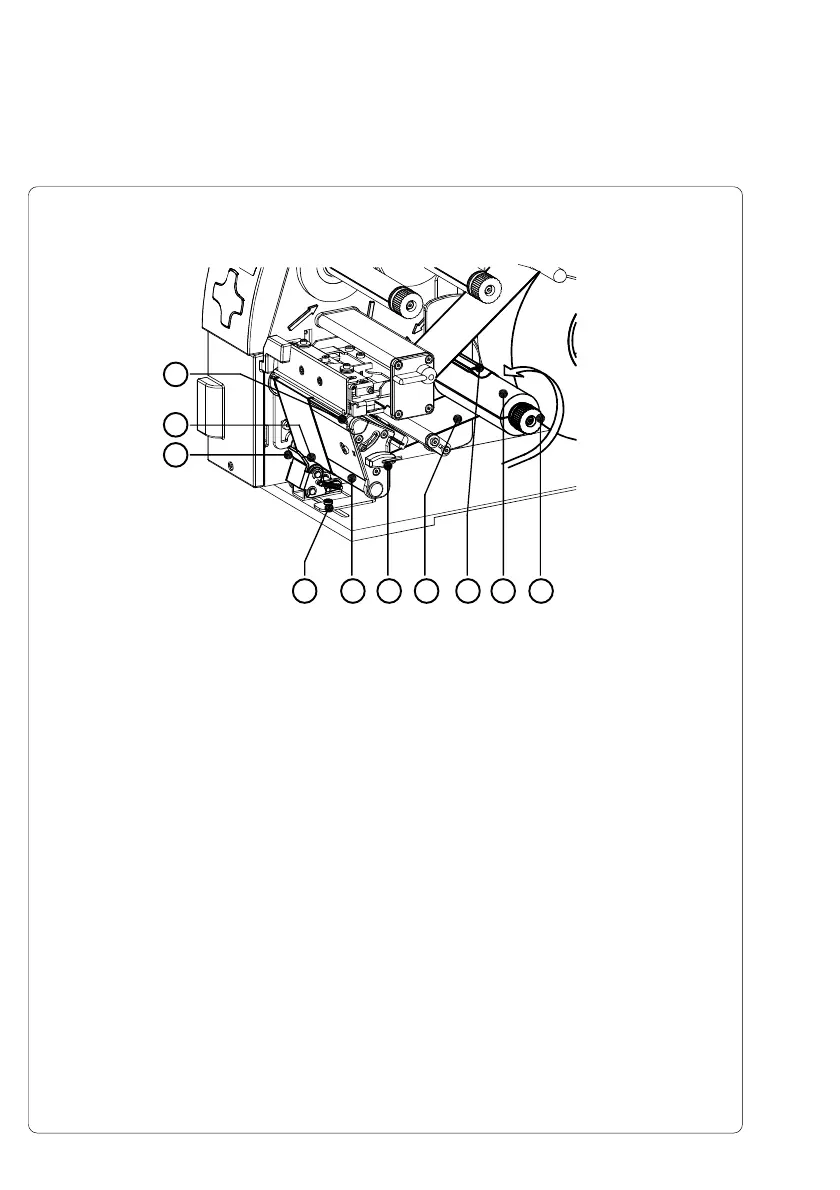

Fig. 7g Loading Labels from Roll in Peel-off mode
13. For peel-off mode swing the locking system (21) away from the rewind
assist roller (23).
14. Remove all labels from the media strip hangig out of the printer. Then,
slide the strip (25) around the dispense plate (19) to the internal rewind
hub (13) as shown in figure 7g. Slide the strip under the clamps (17) that
are located on the internal rewind hub (13). Hold the internal rewind hub
(13) and rotate the nut (18) counter-clockwise until it is tight. The media
strip will now be fastened to the internal rewind hub (13). Rotate the
internal rewind hub (13) counter-clockwise to tighten the media strip.
15. Loosen the screw (22) using the Allen key (24).
Align the locking system (21) including the pinch roller (20) by sliding it
sidewards. The alignment is correct if the pinch roller (20) is placed in the
middle of the label strip.
16. Swing the locking system (21) to the rewind axle (23) and tighten the
screw (22).
17. For further informationen about operating in the peel-off mode see
appendix A.
7. Media Loading
