6. Carefully unplug the printhead (1) from the connectors of the printhead

cables (9 and 10).

7. Connect the new printhead to the cables.

8. Place the printhead into the assembly and insert the holes (8) onto the

pins (11).

9. Tighten the locking screw (5) by hand. Check that the printhead is

completely secured in the printhead carriage.

10. Swing the lever (6) again into the position shown in figure E-2.

11. Tighten the locking screw (5) completely. Do not over-tighten the locking

screw (5).

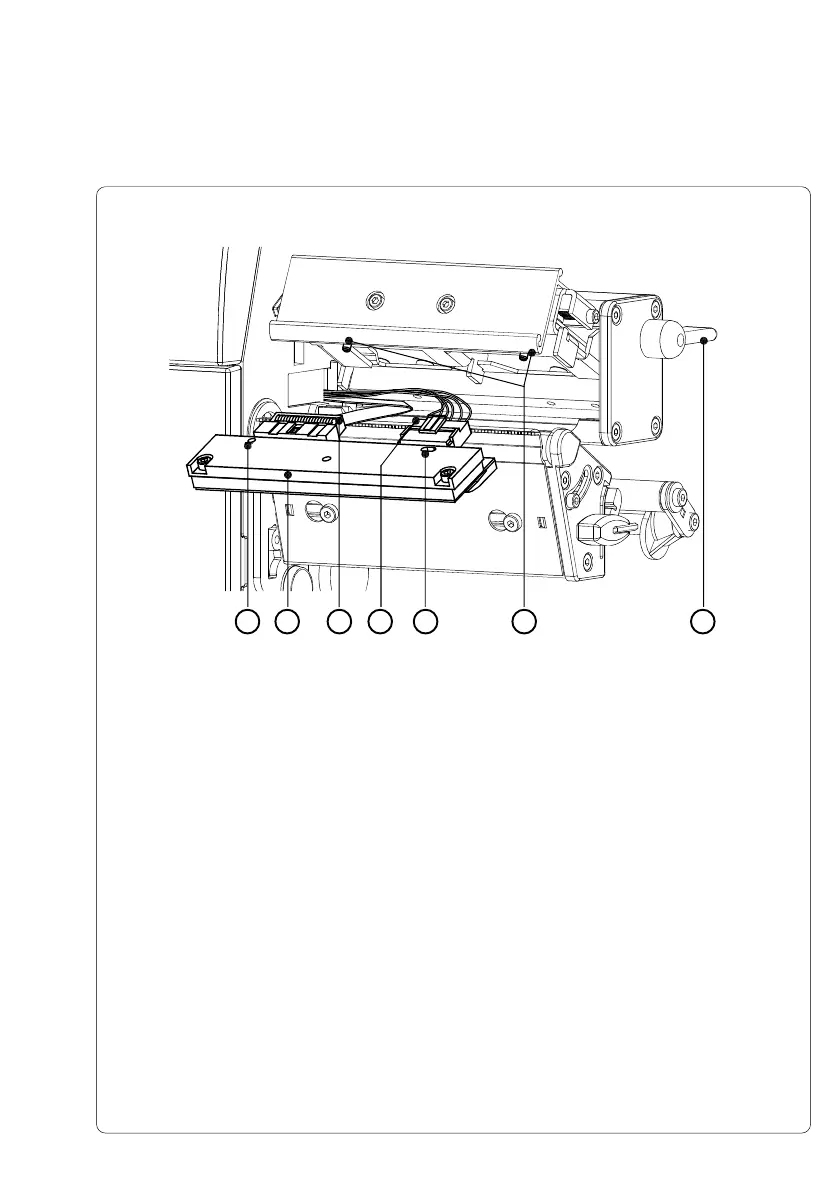

Fig. E-3 Changing Printhead A3/A4 (II)

Appendix E - Replacing Assembly Units
