2.5 Replacing the Control Panel
4
3
5
1
2

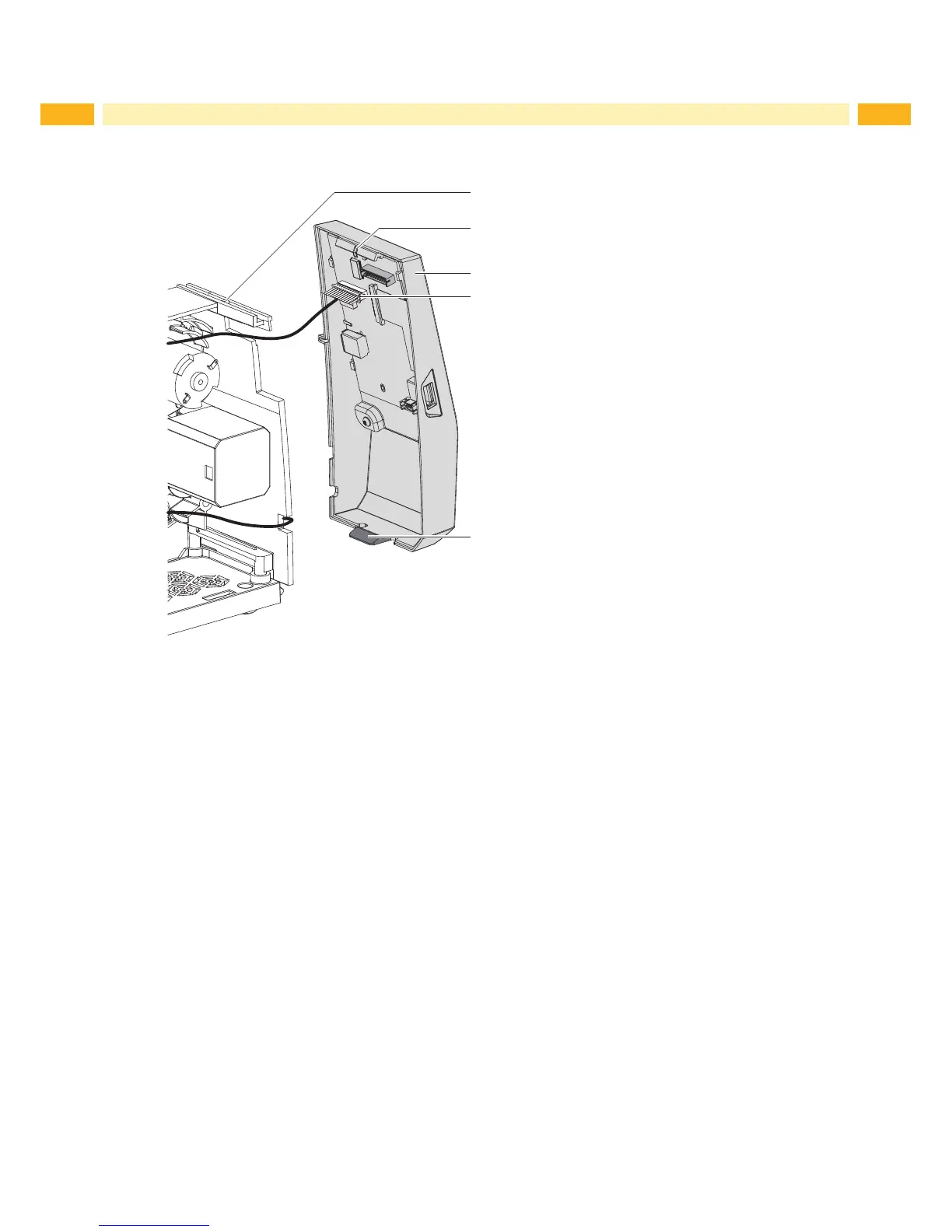

Fig. 5 Removing / mounting the control panel
Removing
 Remove the casing.
 Unlock the control panel (3) at the latch (5) swing it away from the printer and remove it by lifting.
 Unplug the connector of the display cable (4).
Mounting
 Re-connect the cable (4).
 Hook the slot (2) of the cover into the guide (1) and press the control panel against the printer until the latch (5)
clicks into place.
 Mount the casing.
2 Replacing Assembly Units

CAB EOS Series Specifications

General

Print Technology	Thermal Transfer
Print Resolution	300 dpi
Media Type	Rolls
Media Sensors	Reflective sensor, transmissive sensor
Interfaces	USB, Ethernet, Serial
Supported Materials	Paper, plastics
