2.7 Replacing the Stepper Motor
1 2 3 4
4
5
6
5

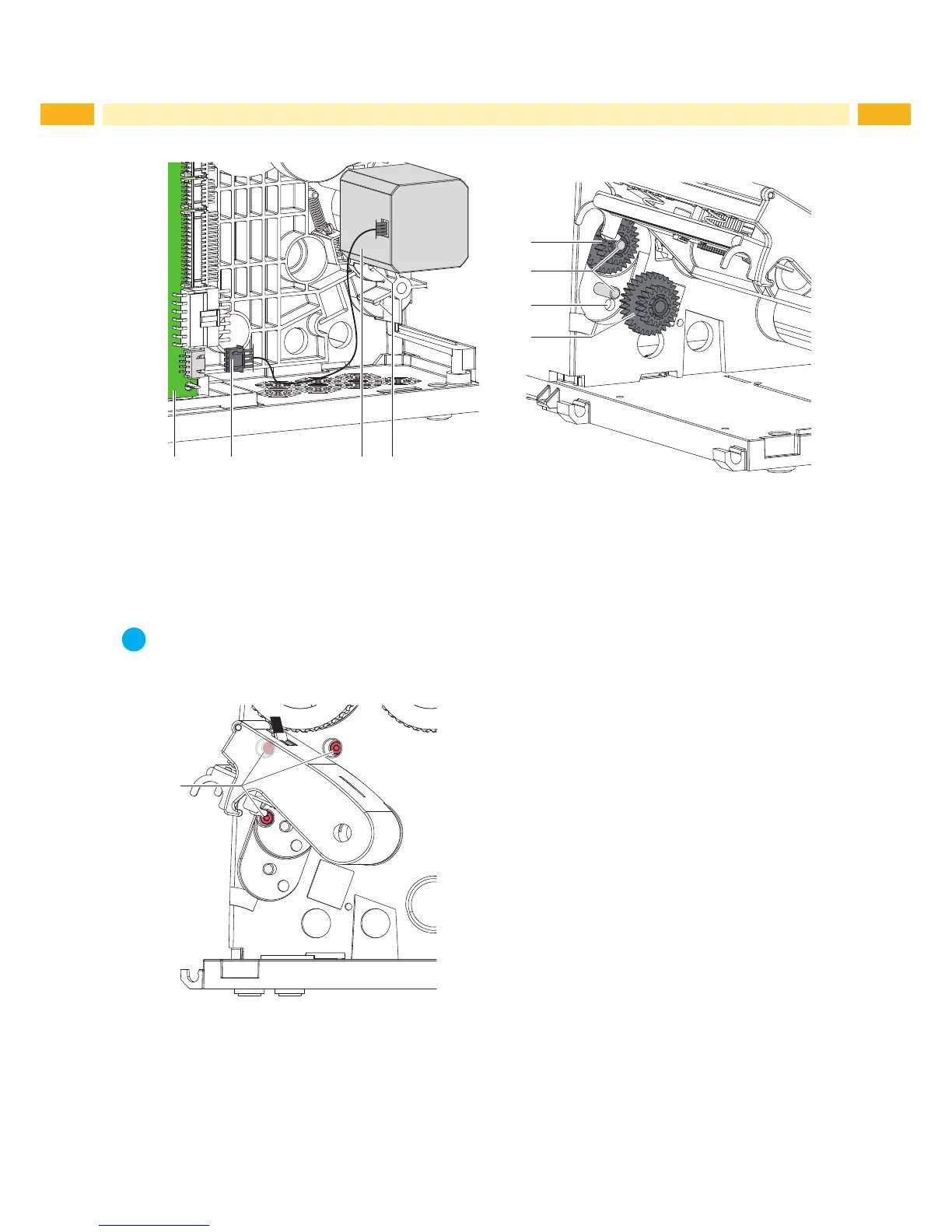

Fig. 7 Removing / mounting stepper motor 1
Removing
 Remove the casing
 Remove the transport module.
 Unplug the connector (2) of the stepper motor (3) from the CPU (1).
 Remove the gearwheels (5) from the axles (6).
i
Note!
The gearwheels (5) are reachable from the inner side of the chassis through the holes (4) with a pointed tool
and can be pushed that way from the axles.
7
Fig. 8 Removing / mounting stepper motor 2
 Loosen 3 screws (7) and remove the stepper motor (3).
Mounting
 Mount the assembly units in reverse order.
