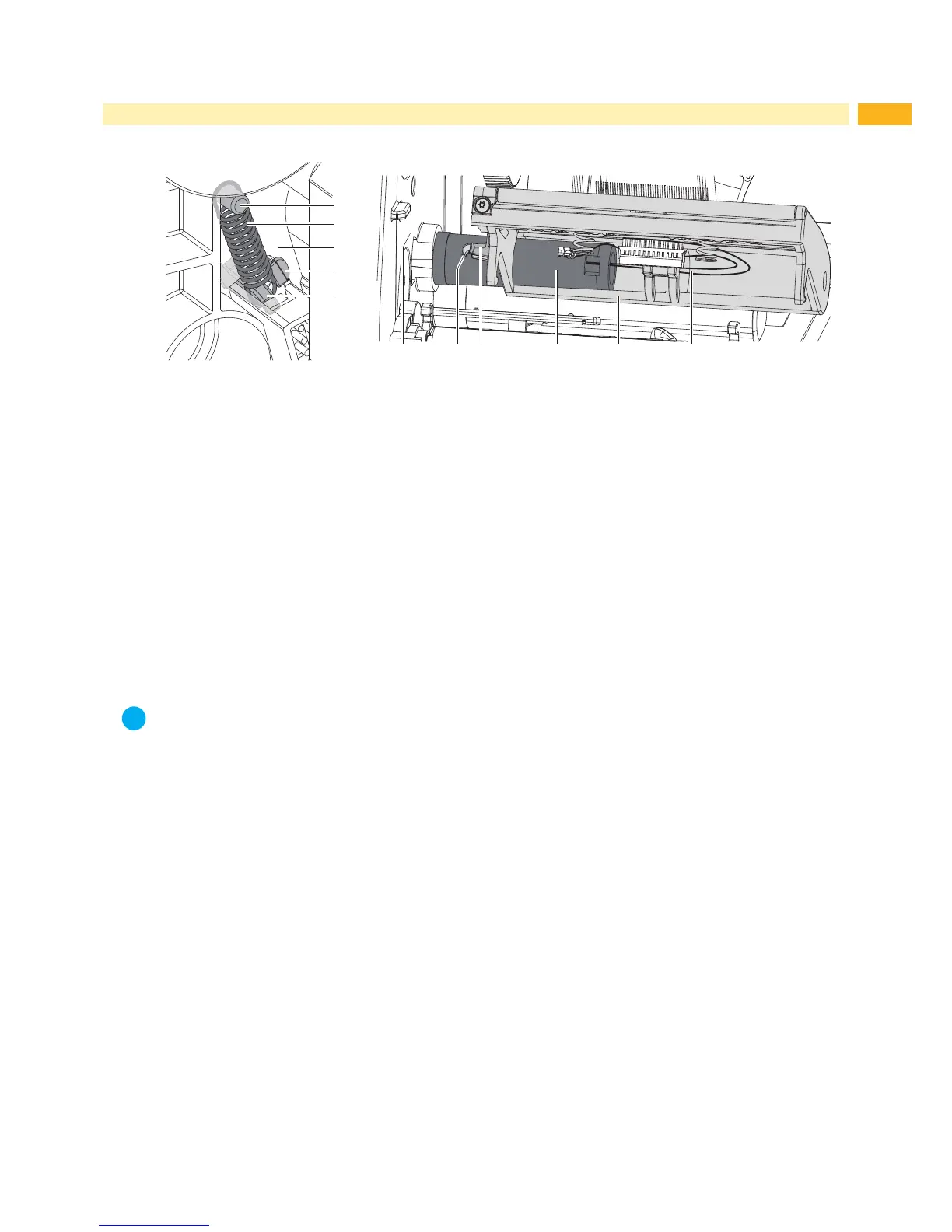

Fig. 9 Removing / mounting printhead holder
Removing
Remove the casing.
Remove the printhead.
Remove the spring (2) from the spring bolt (1).
Lift the printhead holder (7), unlock the latch (4) and push the printhead holder with the spring (2) to the operator’s
side out of the chassis (3).
Remove the printhead holder (7) with the spring (2) completely from the retainer (6). In doing so remove the
printhead cable (8) from the printhead holder.
Keep the spring (2).
Mounting
Push the printhead holder (7) onto the retainer (6). In doing so insert the printhead cable (8) into the printhead
holder.
Push latch (4) and spring hook (5) of the printhead holder through the gap of the chassis (3).
Note!
For the following mounting of the spring (2) it is recommended to push the printhead holder in a position,
where the latch (4) is clamped by the chassis but not completely locked yet.
Mount the spring (2) onto the spring hook (5).
Push the printhead holder (7) further until the latch (4) clicks into place.
Mount the spring (2) onto spring bolt (1).
Mount the printhead.
Mount the casing.
2 Replacing Assembly Units
