10 103 Loading Material
3.1 Loading Labels
HS / HS+ VS / VS+

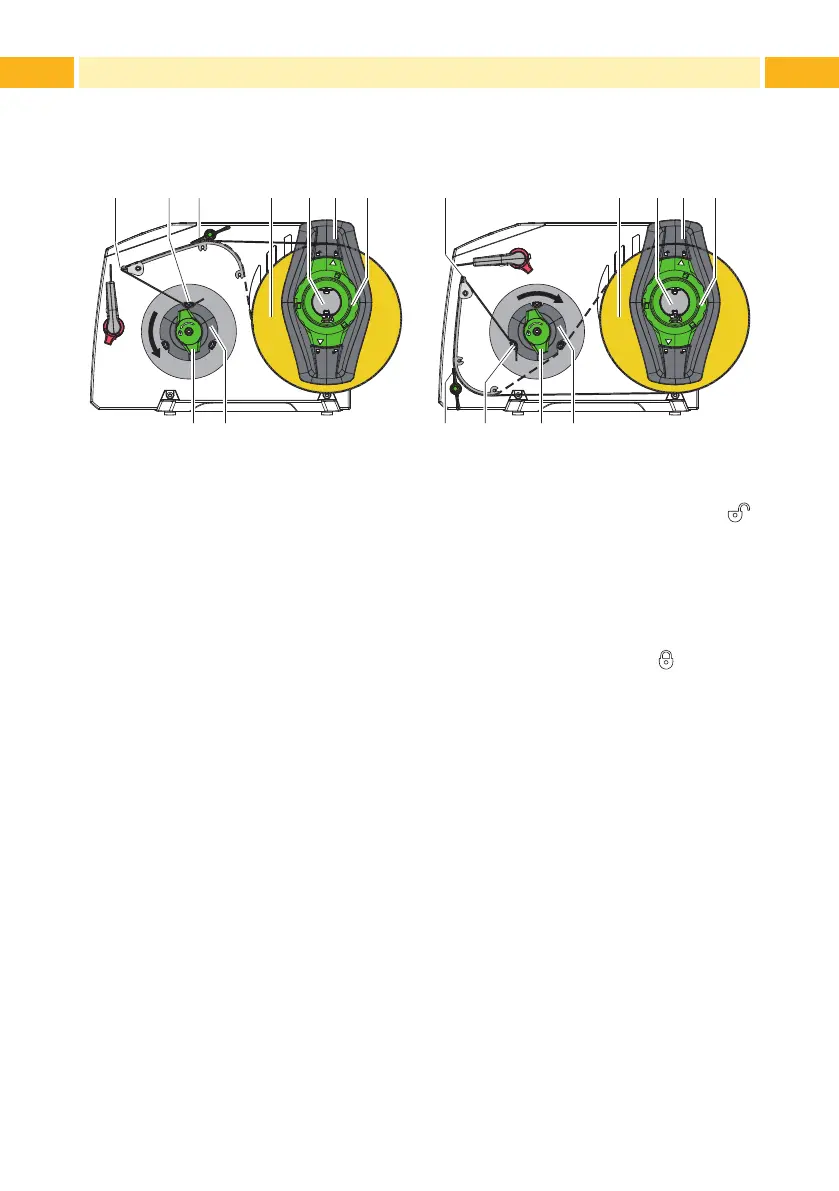

Fig. 6 Loading labels
1. Turn ring (7) counterclockwise, so that the arrows points to the symbol ,
and thus release the margin stop (6) from the roll retainer (5).
2. Load label roll (4) on the roll retainer (5) in such a way that the labels are
visible from above at HS 120 / from below at VS 120.
3. Re-mount the margin stop (6) and push against the label roll as far as
possible.
4. Turn ring (7) clockwise, so that the arrow points to the symbol , and thus
x the margin stop (6) on the roll retainer (5).
5. Swing away the brake (3).
6. Remove the labels manually from the label strip on the rst 20 cm.
7. Guide label strip over the dispense plate (1) to the rewinder (9) as shown
in gure 6. The broken line shows the path for inside wound labels.
8. Hold rewinder (9) rmly and turn knob (8) clockwise until it stops.
9. Push liner under a bracket (2) of the rewinder (9) and turn knob (8)
counterclockwise until it stops.
The rewinder is fully spread, thus gripping the liner rmly.
10. Swing the brake (3) against the label strip.
11. Adjust the present sensor..
