10 104 Operation
4.2.2 Mode1b-StartingPrintandConrmingLabelRemovalwith
Signal XETE

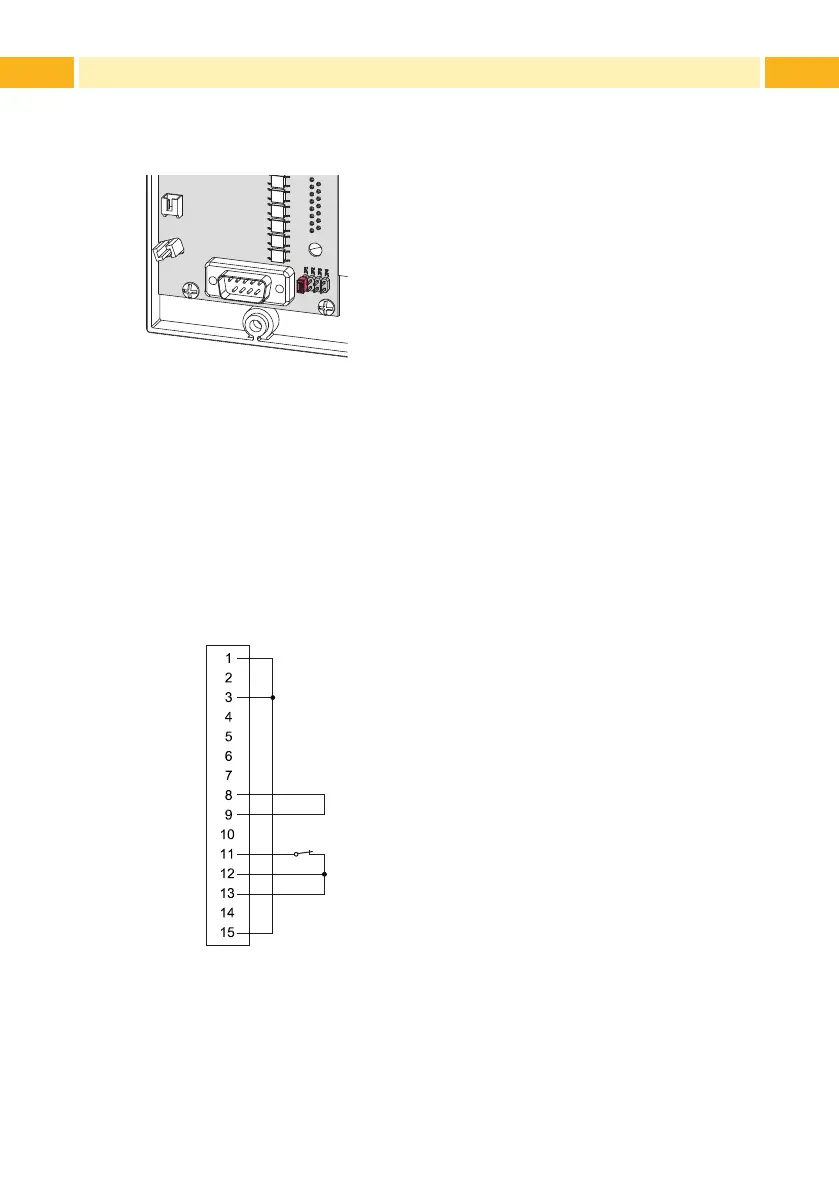

Figure 4 Jumper at position JP1
 Hold signal XSTART permanently active.
For that connect Pin 1 (XSTART) with Pin 15 (P24) and Pin 8 (GND) with
Pin 9 (RXSTART).
 Send a print job.
Therstlabelwillbeprintedantransportedtothepeelposition.
 Remove the label.
 ConrmthelabelremovalwithsignalXETE.
The next cycle will be started.
XSTART
XFEH
XETE
XESP
XEDG
XDNB
XEDST
GND
RXSTART
RXFEH
RXETE
GND
STA
RUEL
P24
Figure 5 External minimal circuit at the peripheral interface for mode 1b
