CAB PS5 - Present Sensor PS6 Modes

12 124 Operation
4.3 Present Sensor PS6
PS6 can be operated in two different modes.
The operating mode depends on external circuit at the peripheral interface.
The jumper must be at position JP4.

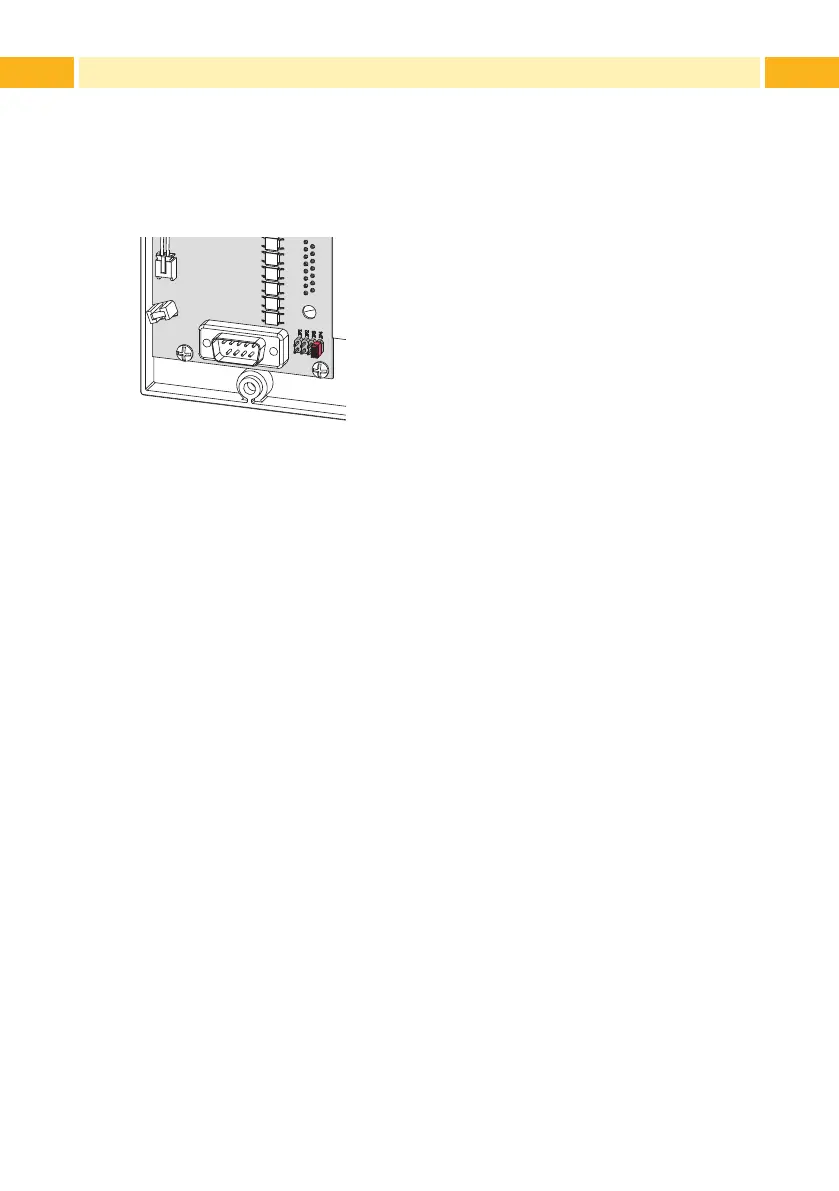

Figure 8 Jumper at position JP4
4.3.1 Automatic Mode
The present sensor is installed without external circuit.
 Send a print job.
Therstlabelwillbeprintedantransportedtothepeelposition.
 Remove the label.
The next label will be printed an transported to the peel position.
4.3.2 LabelonDemandMode
To start a peel-off cycle the signal XSTART must be sent from an external
control.
For that mode pin 13 (STA) must be connected with pin 12 (GND).
 Send a print job.
 Activate XSTART.
Therstlabelwillbeprintedantransportedtothepeelposition.
 Remove the label.
 Activate XSTART to start the next cycle.
